Ball Press Pellet

The ball press machine is mainly used to press powder materials that are difficult to form, with advantages such as high ball forming rate, energy saving and environmental protection, compact structure, and easy maintenance. It is widely used in industries such as refractory materials, metallurgy, energy, heating, etc., and can be used to press hundreds of materials such as coal powder, carbon powder, iron powder, mineral powder, coke powder, aluminum powder, etc.The material made by a ball press machine has low dust, is environmentally friendly, easy to transport, improves the utilization rate of waste, and has good economic and social benefits.

Working Principle

Motive power will transmit to two rollers through the reducer synchronously and make them rotate oppositely. Materials enter into ball mode naturally, with rollers rotation, pressure of materials bearing becomes larger. When arriving at two rollers contact point, materials bearing pressure reaches peak. Under the tremendous pressure, materials become ball shape from powder shape.

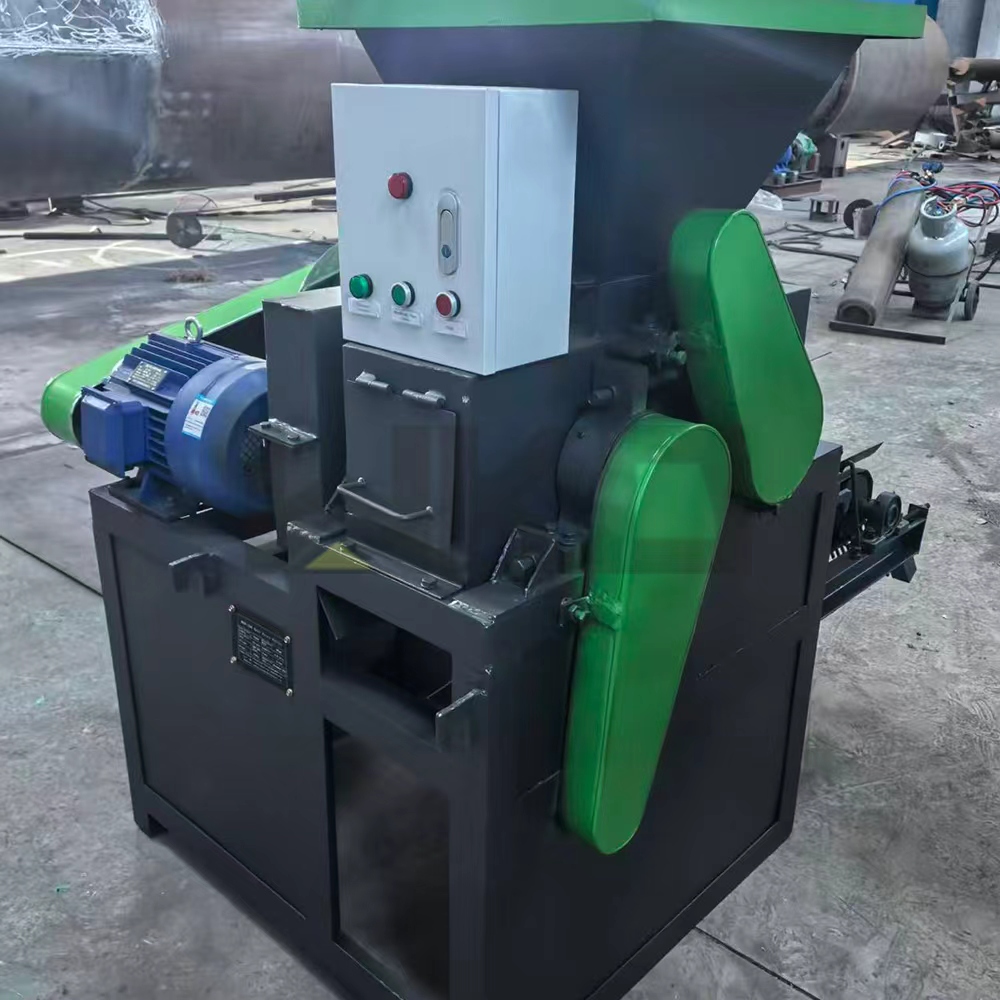

ball press pellet (7).jpg

The Finished Product

This briquette press machine is widely used in coal, metallurgy, chemical industry and other industries. The final production can make Egg-shaped, oval-shaped, circular-shaped, square-shaped, columnar-shaped, banding-shape, cake-shaped, etc.Fianl production size range 18mm-80mm,it’s customization depends on customer need.

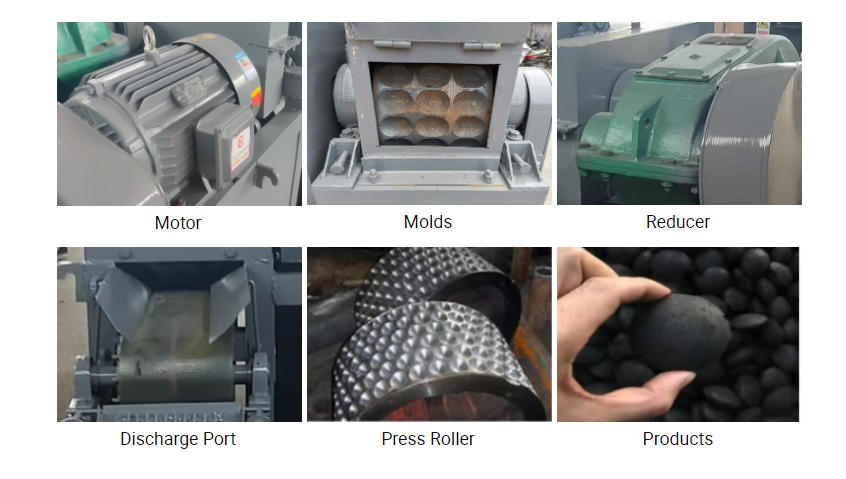

ball press pellet.jpg

Parameters

Model	290	360	400	500	650	750	850	1000
Finished Size(mm)	30-60	30-60	30-60	30-60	30-60	30-60	30-60	30-60
Roll Diameter(mm)	290	360	400	500	650	750	850	1000
Roll Material	65Mn/9Cr2Mo/Die Cast Alloy Steel
Power(kW)	7.5	7.5	11/15	18.5/22	22/37	45/55	55/75	90-132
Reduction Gear	ZQ350	ZQ350/ZQ450	ZQ400/ZQ500	ZQ500/ZQ650	ZQ650/ZQ750	ZQ750/ZQ850	ZQ850/ZQ1000	ZL11500/ZL1300
Weigth(t)	0.95	1.6	1.8	2.6	4.8	9.8	13	25
Capacity(t/h)	1-3	2-6	4-8	6-15	10-20	15-25	20-30	45-40
