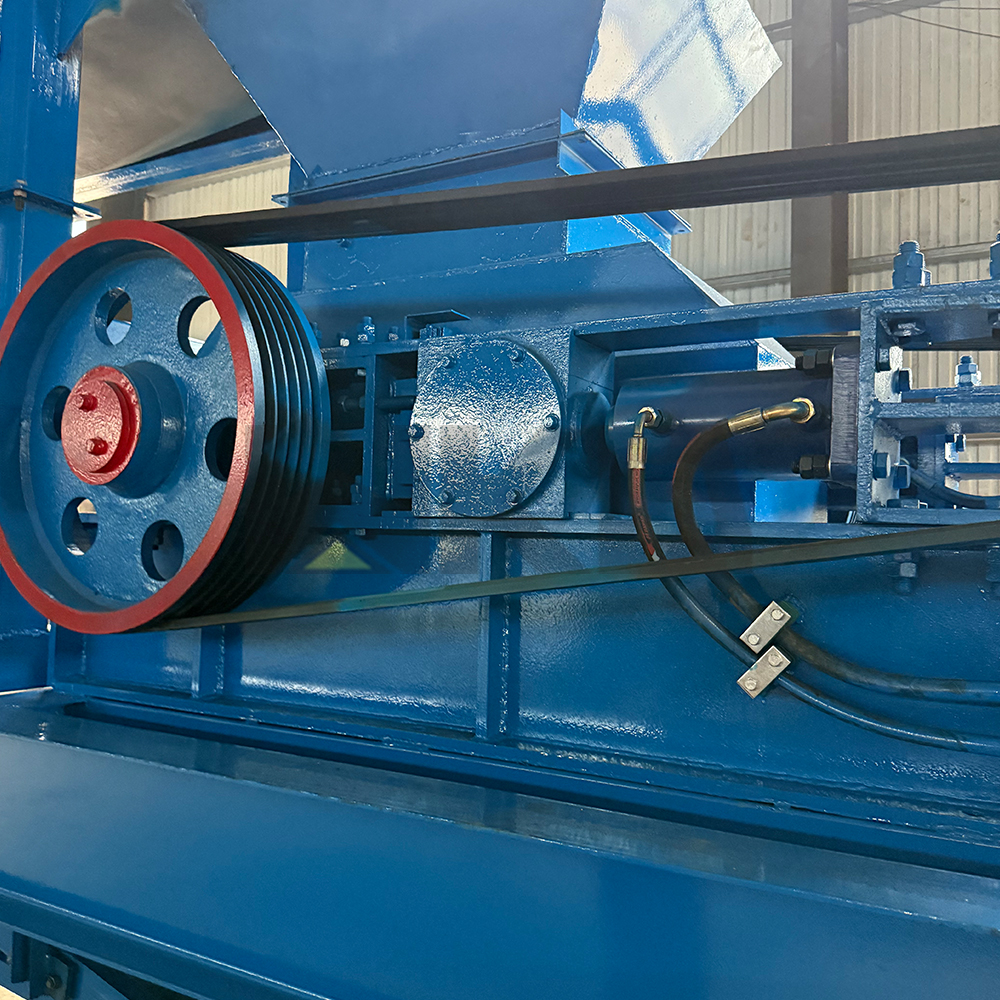

Hydraulic Double Roller Crusher

Hydraulic roller crusher is a new type of roller crusher that integrates various advanced technologies. It has a reasonable structure, advanced performance, and powerful functions. Through excellent electromechanical hydraulic integration design, the equipment can operate continuously, stably, and reliably. In sand and gravel aggregate and grinding systems, it can generally increase production by 30% -40% and reduce total energy consumption by 20% -30%. In industries such as mineral processing, chemical industry, refractory materials, stone materials, and building materials, it can finely crush materials of various hardness.

roller mill (31).jpg

Features

Long lifespan, not easily damaged: The sleeve of the roller crusher is made of wear-resistant material, which has the advantages of long service life, low damage, small maintenance, and low cost
Good sealing performance and low noise: Internally equipped with dust-proof plates, the sealing performance is good, avoiding the splashing of small materials after crushing, reducing dust, low working noise, and greatly improving the working environment.
Good crushing effect: The gap between the abrasive roller body and the roller can be adjusted freely between 1mm and 40mm according to the requirements of the crushing particle size. After adjusting the gap, the crushing particle size can be reliably controlled, and all particles are discharged from below the crushing chamber at the ideal particle size.

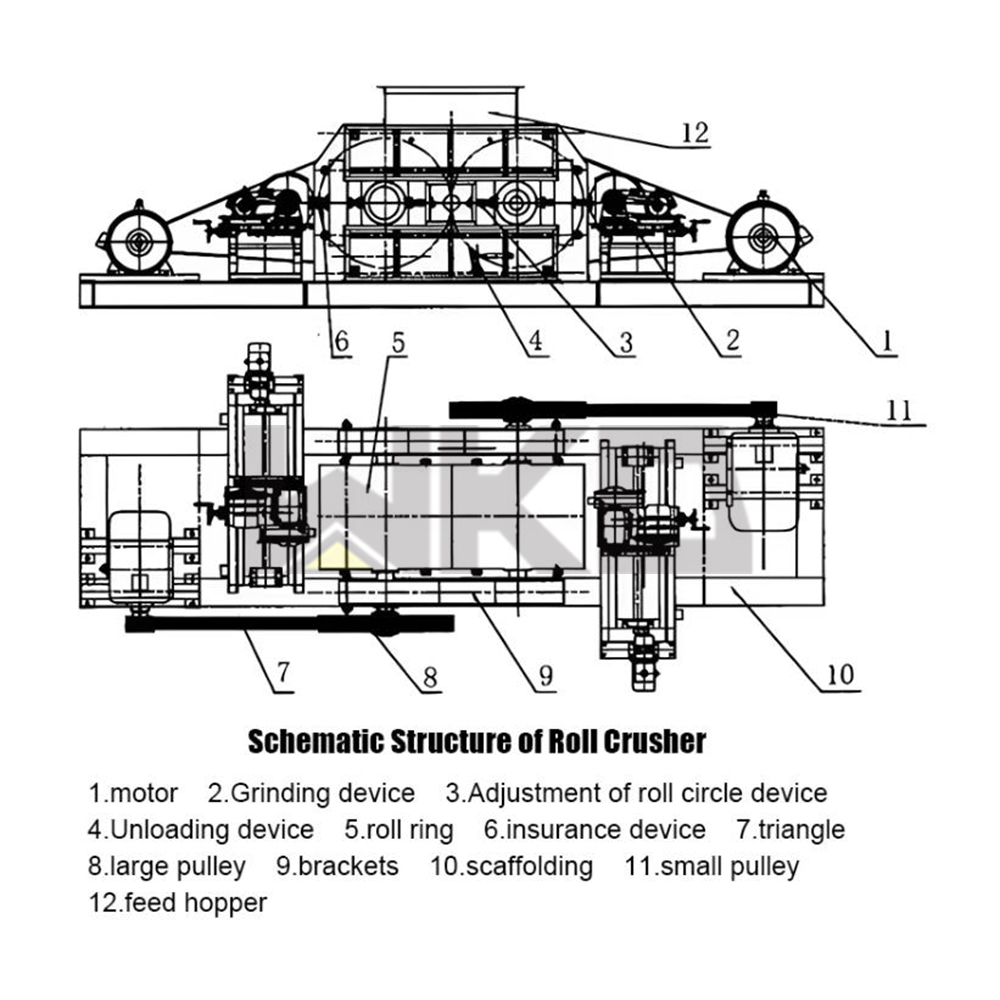

Working Principle

The roller sand making machine uses two motors to drive two sets of roller shafts to squeeze and grind materials. Fine crushing operations with a roll crushing degree of less than 80mm and a finished product particle size requirement of 50-20mm Using double rollers as support and fixing the core equipment on top, the crushing task is completed under the drive of the electric motor. At the same time, it also uses dual motors to work together, so its work efficiency is very high, and the output and production capacity can meet the actual needs.

roller mill (34).jpg

Application

roller crusher (88).jpg

Pamaters

Model	Max Feeding Size(mm)	Capacity(t/h)	Output Size (mm)	Power (kW)	Dimention (mm)
2PG-400*250	30	5-15	2-5	5.5*2	23501000810mm
2PG-600*400	70	10-35	2-10	15*2	330015001500mm
2PG-750*500	85	15-45	2-20	15*2	375016001150mm
2PG-800*600	85	20-70	3-40	18.5*2	395017001200mm
2PG-1000*800	100	30-90	3-60	22*2	552020601360mm
2PG-1250*1000	100	40-120	3-70	37*2	627026801590mm
2PG-1500*1000	100	50-140	3-80	45*2	677026801590mm
