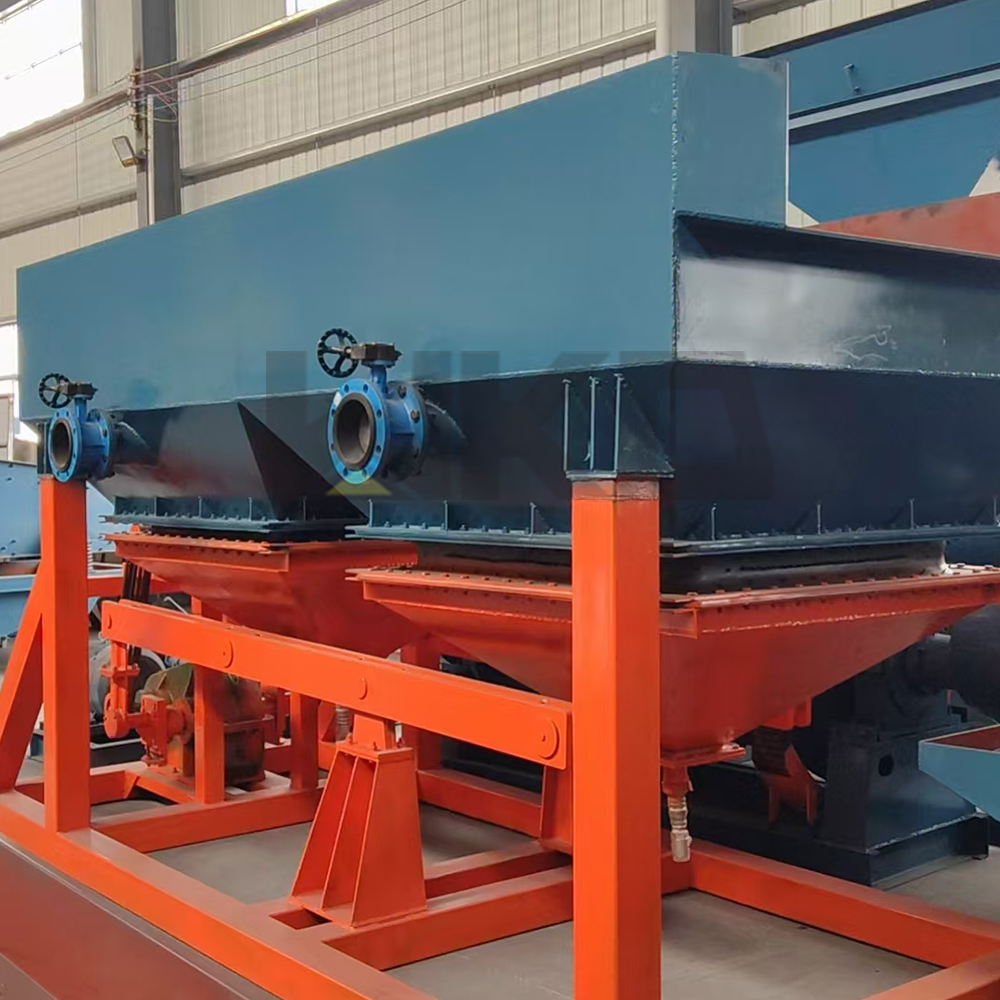

Jig Separator (Sawtooth Wave Jigging Machine) is an advanced, energy-efficient, and eco-friendly solution for mineral separation. Designed to handle fine particle materials(0-5mm), it features a cam-driven mechanism that generates a sawtooth wave pulsation. This creates a consistent upward water flow and rapid downward flow, enhancing the jigging process and boosting the recovery of fine minerals.

Application

  Jig is suitable for separating a variety of fine minerals, including tungsten, tin, gold, iron, manganese, titanium, molybdenum, chromium, sulfur, etc. It is also highly effective in recovering valuable metals from smelting slag—such as stainless steel slag.

Advantages

01.Compact and Efficient Design

Bottom-driven structure saves space and improves processing capacity per unit area.

02. Superior Separation for Fine Minerals

The sawtooth wave pulsation produces a fast upward water flow and sharp downward flow, enhancing the recovery of fine particles less than 5mm.

03. Energy and Water Saving

Reduces water consumption by 30–40%, making it more cost-effective and environmentally friendly.

04. Long Serivce Time

Stainless Steel Screen – More corrosion-resistant and durable than traditional manganese steel screens.

Reinforced Rubber Diaphragm – Extends service life by 1.5 times.

05. Easy Operation and Maintenance

Eccentric Wheel with Scale Marks – Allows for easier and more precise stroke adjustment., and low maintenance requirements.

Parameters

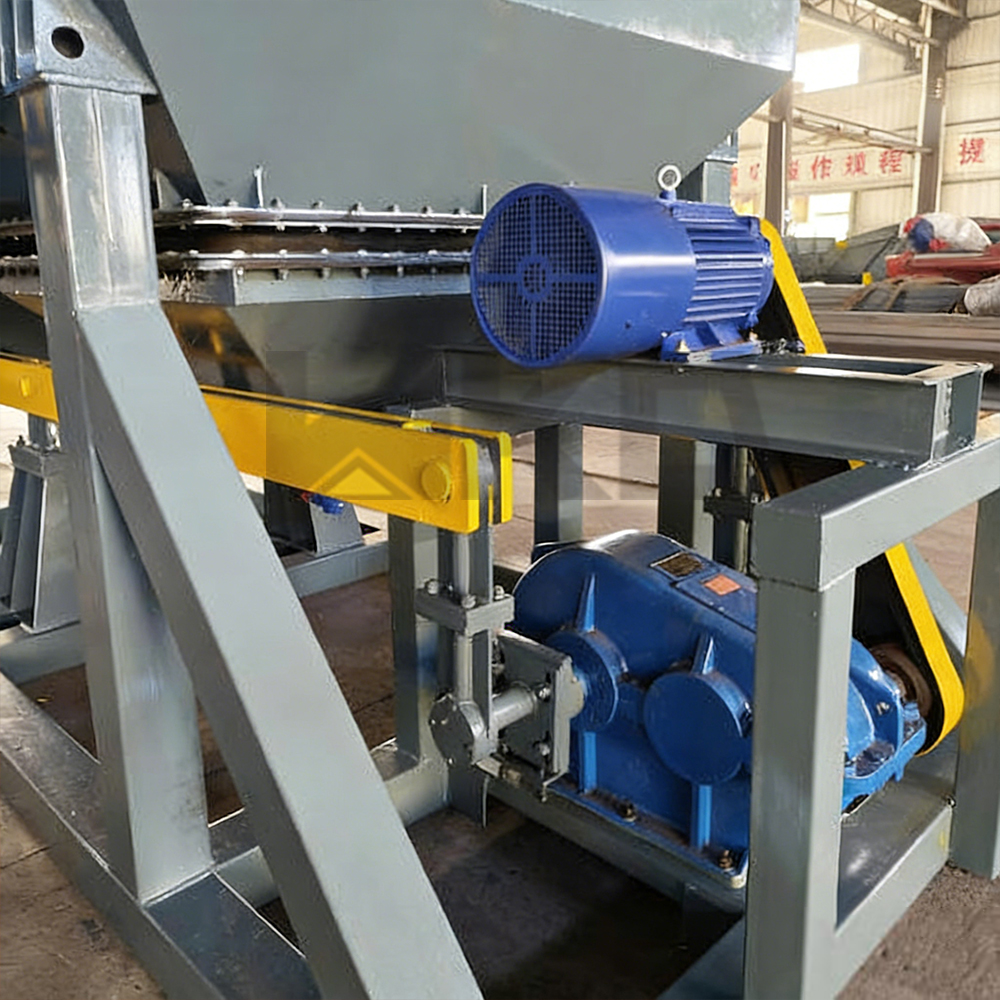

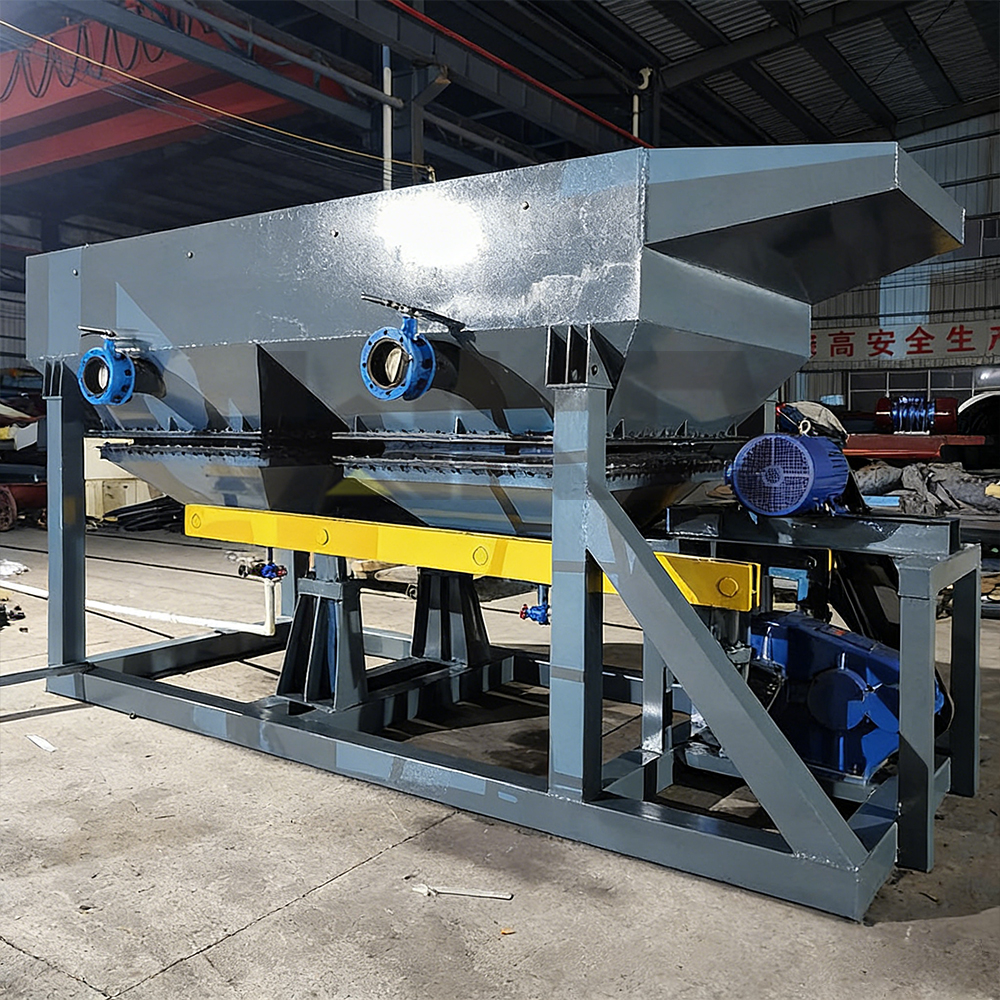

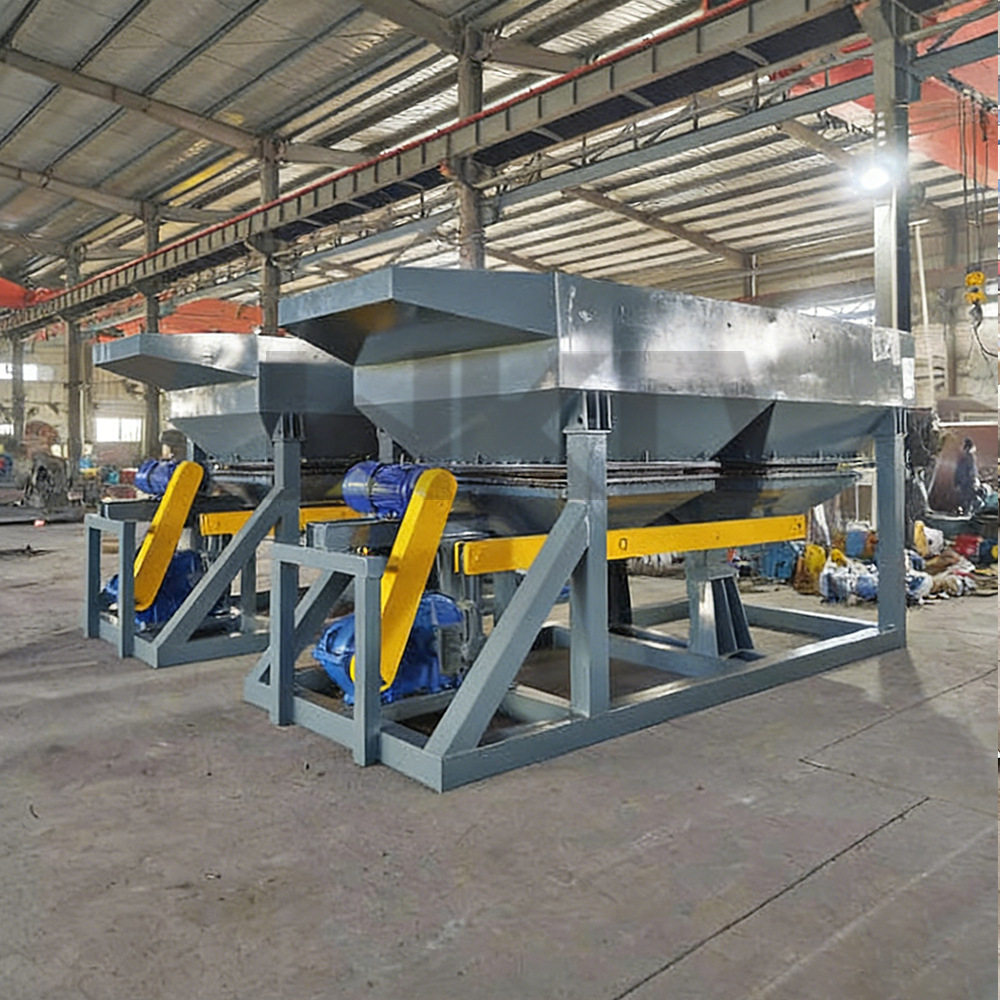

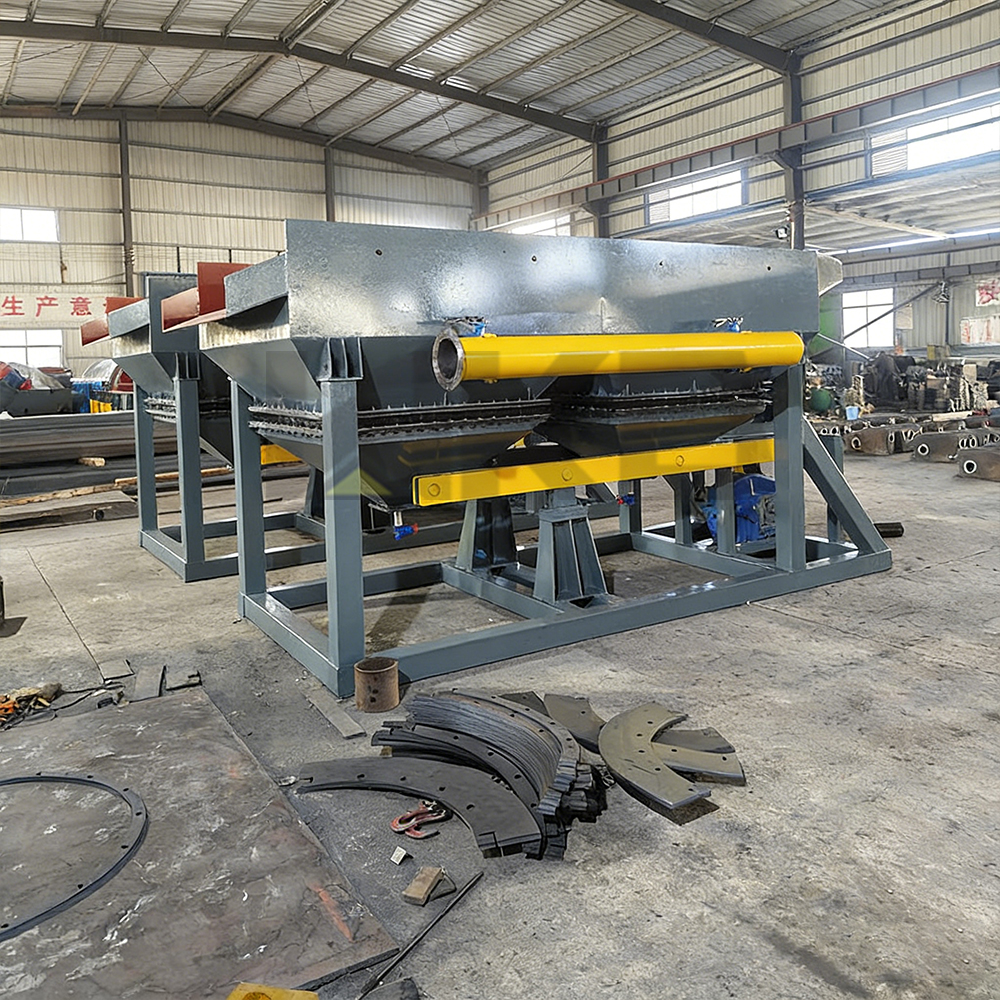

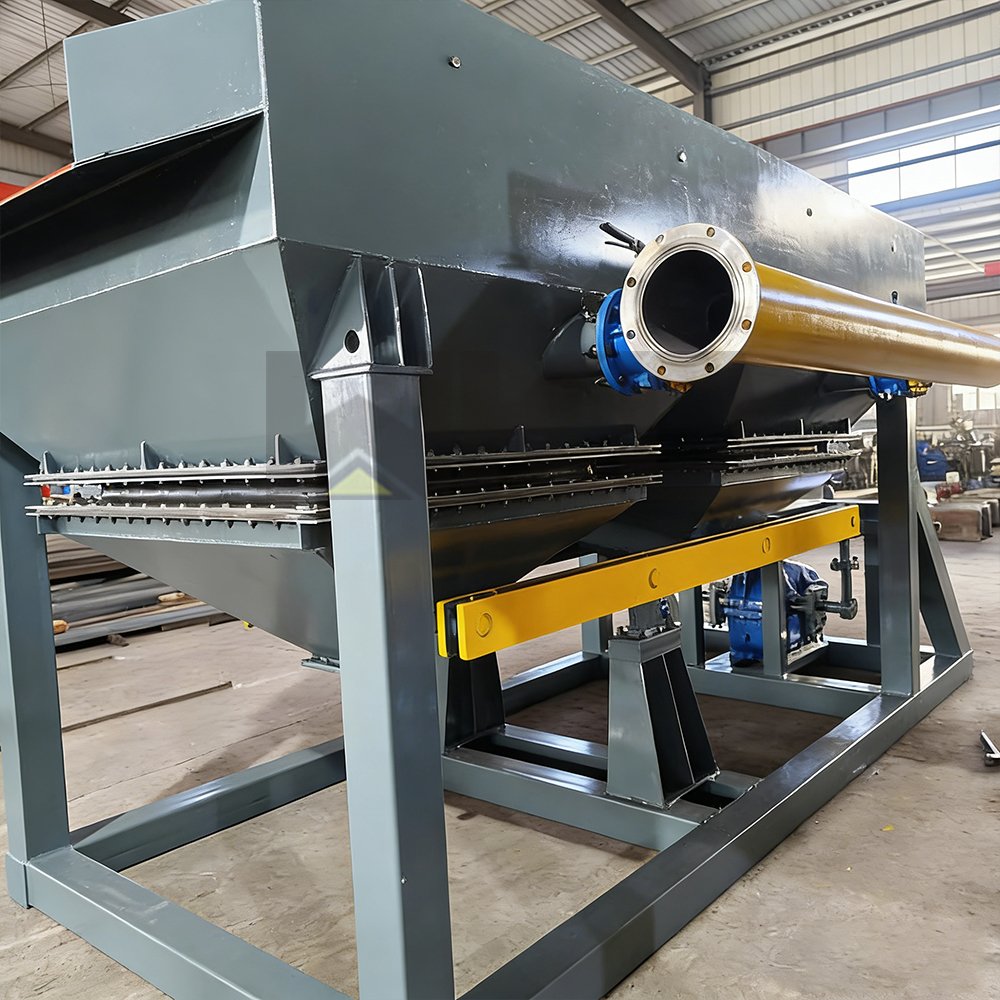

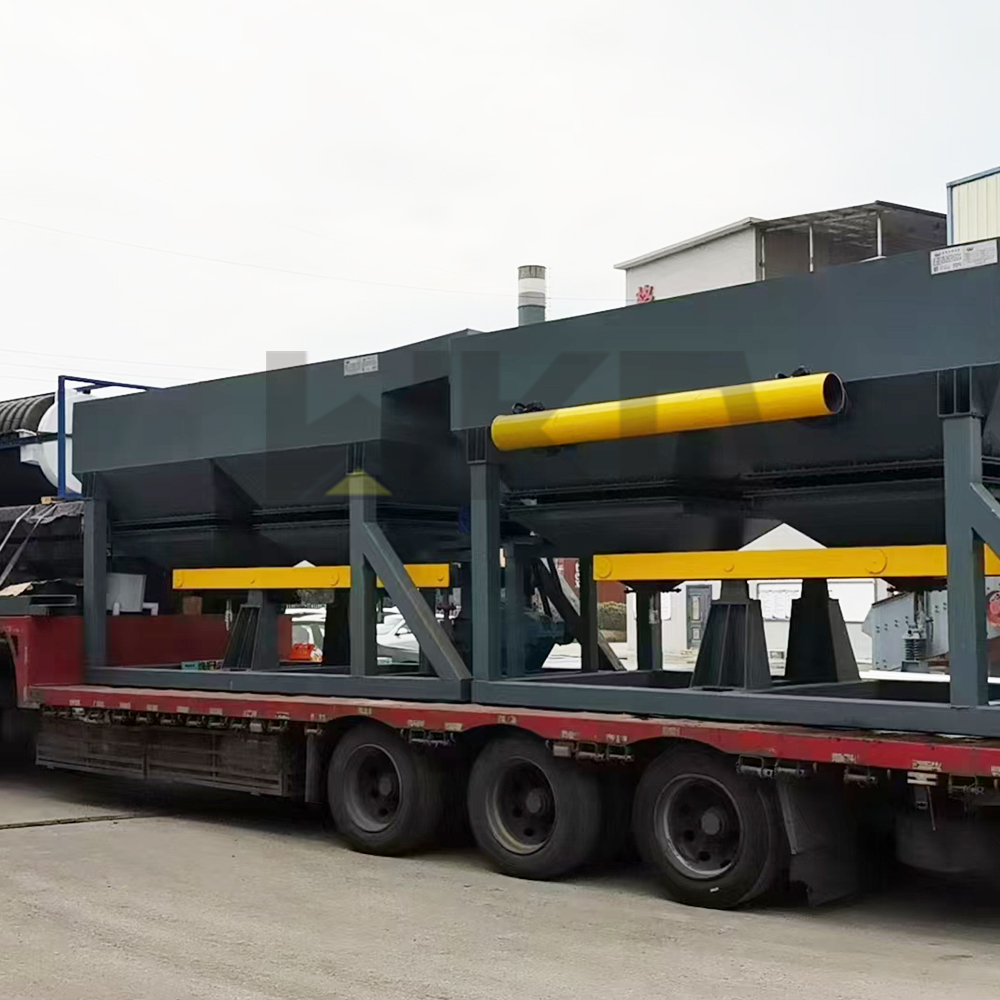

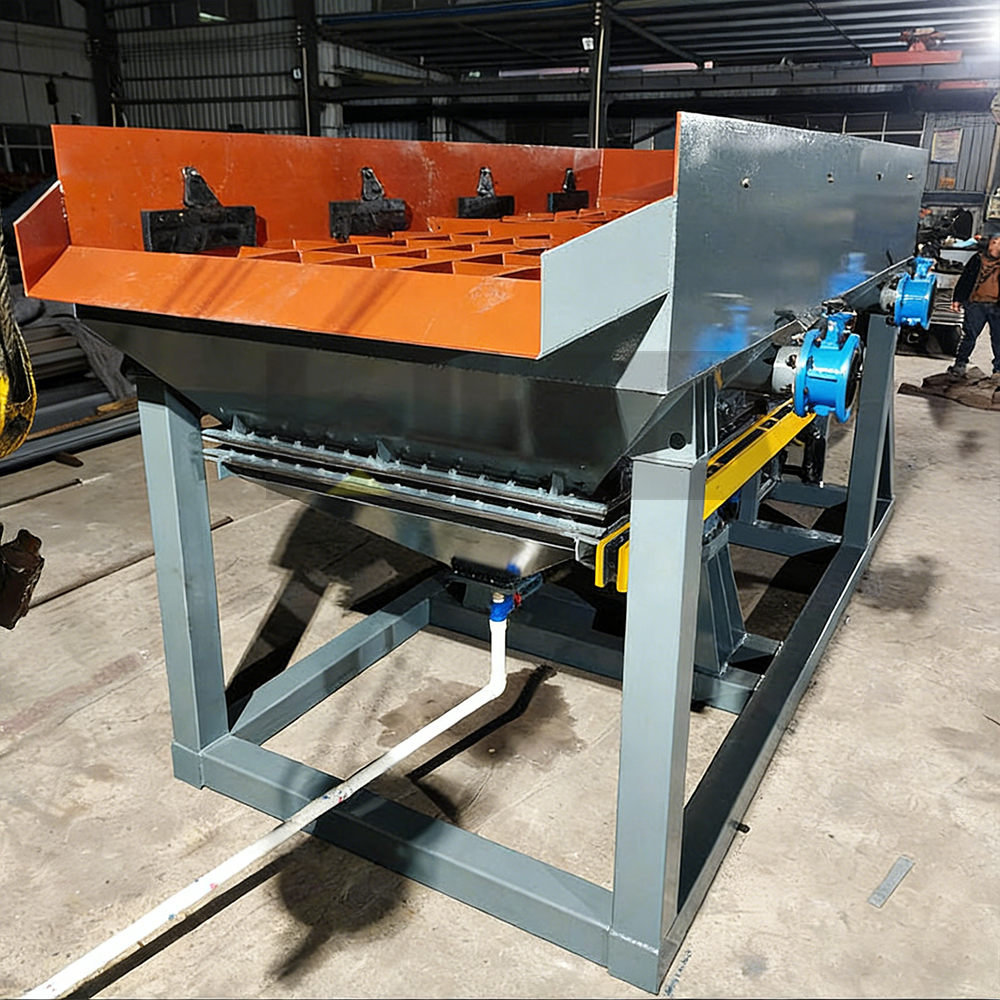

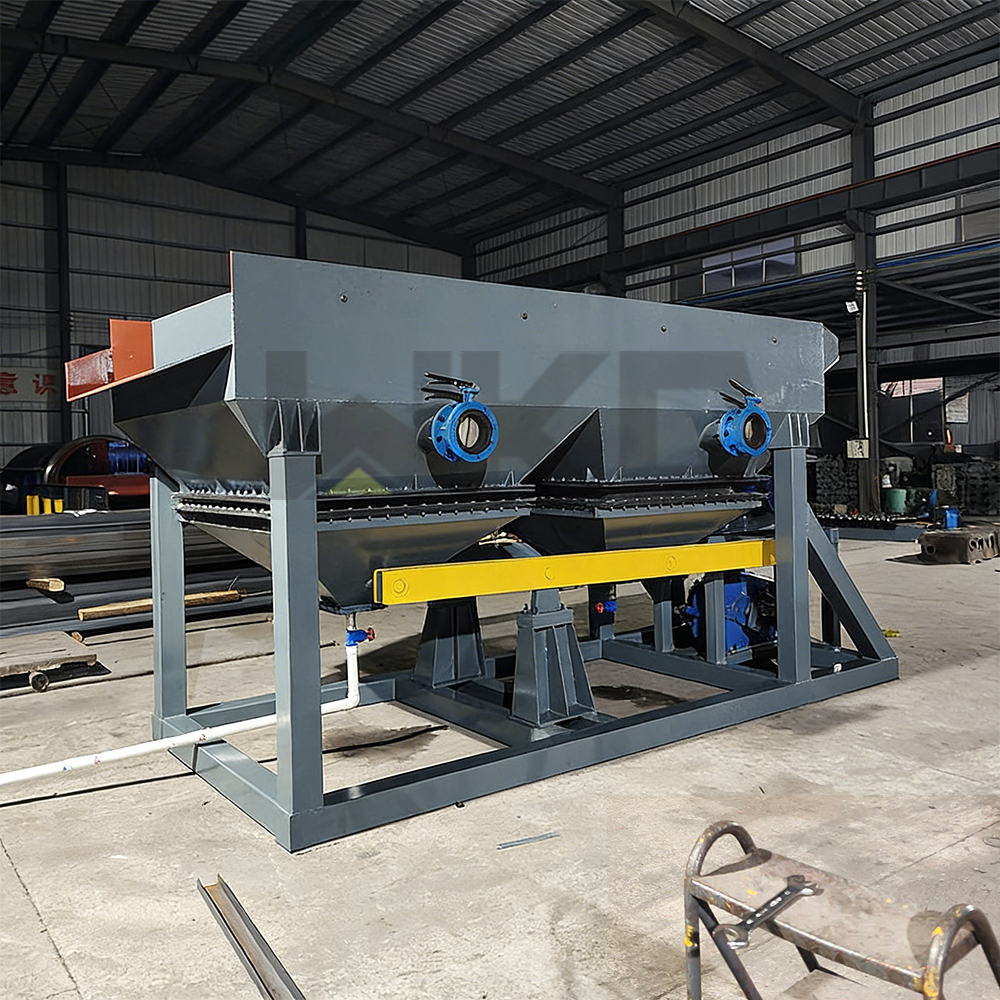

Details Images
