Gemini Shaking Table

Gemini Shaking TableGemini Shaking Table, also known as a precious metal table, works according to the specific g

INQUIRY

Gemini Shaking Table

Gemini Shaking Table, also known as a precious metal table, works according to the specific gravity prince. Ideal for grain sizes between 30 micron and 2mm. It is specially designed for precious metals such as Gold, Palladium, tantalum and copper. It can maximize the concentration rate in the ore with its low energy consumption. Thanks to the frequently installed mini valves, fine adjustment can be made in the water collector as you wish. We have two types of production, Gemini Table laboratory type and Industrial type

gemini shaker table (2).jpg

Features

Direct, fixed-speed feed system.
Simple operation.
Adjustable feed rate.
Gemini shaker table can be operated in batch or continuous mode.
Available for single or three-phase power supply.
No massive foundation is required.
Deck constructed of hard-wearing gel coat with GRP backing.
It can maximize the concentration rate in the ore with its low energy consumption.

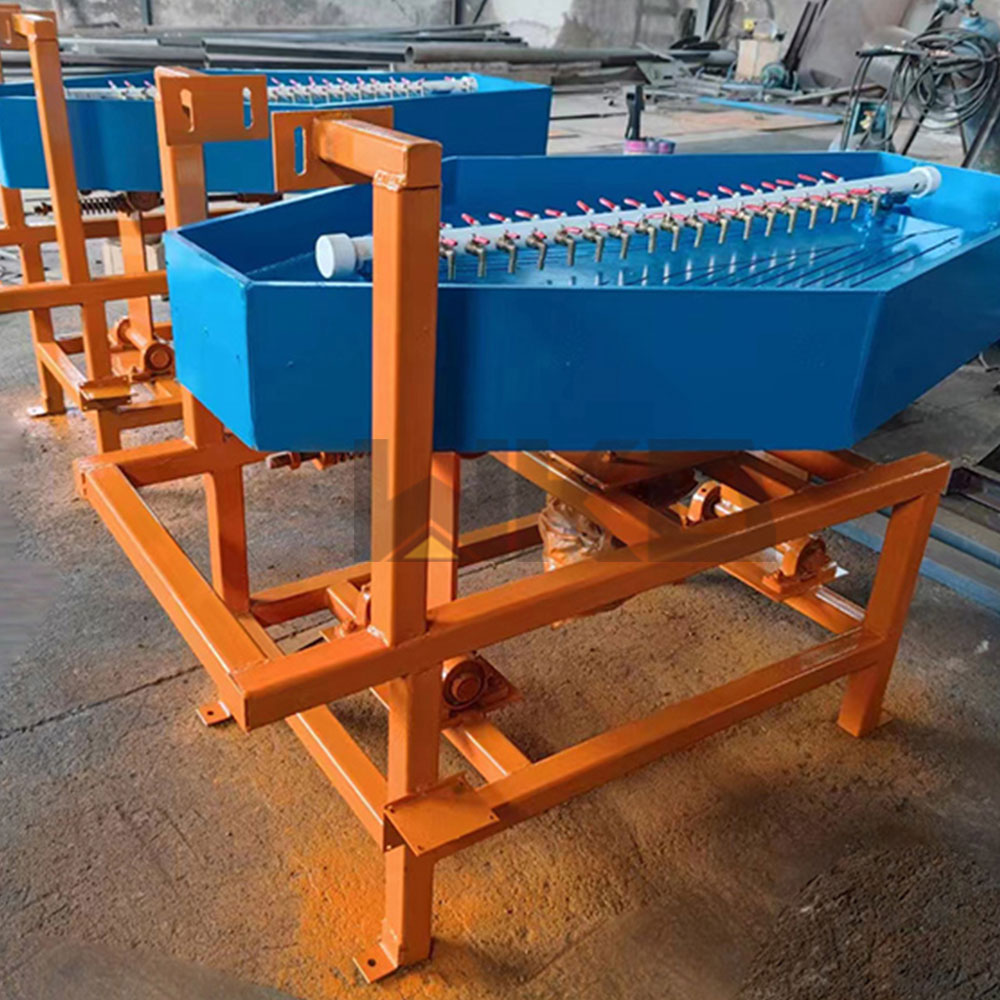

gemini shaker table (1).jpg

Parameters

Model		GT60	GT250	GT1000
Feed	Feed Rate Nominal(kg/h)	30	115	450
	Feed Density Recommended (%solids w/w)	60-70	60-70	60-70
	Feed Size Nominal Top-Microns	800-1000	800-1000	800-1000
Wash Water	Nominal Wash Water Requirements (L/min)	12	25	38
Wash Water	Nominal Wash Water Pressure (kPa)	30	30	30
Operating	Length (mm)	1490	2180	2800
	Width (mm)	670/894	700/1340	916/1750
	Height (mm)	1160	1350	1365
	Wash Water (L/min)	12	25	38
Dimensions	LWH(m)	1421.10*1.21	2.201.501.50	2.801.901.50
Packed Weight (kg)		250	420	540
