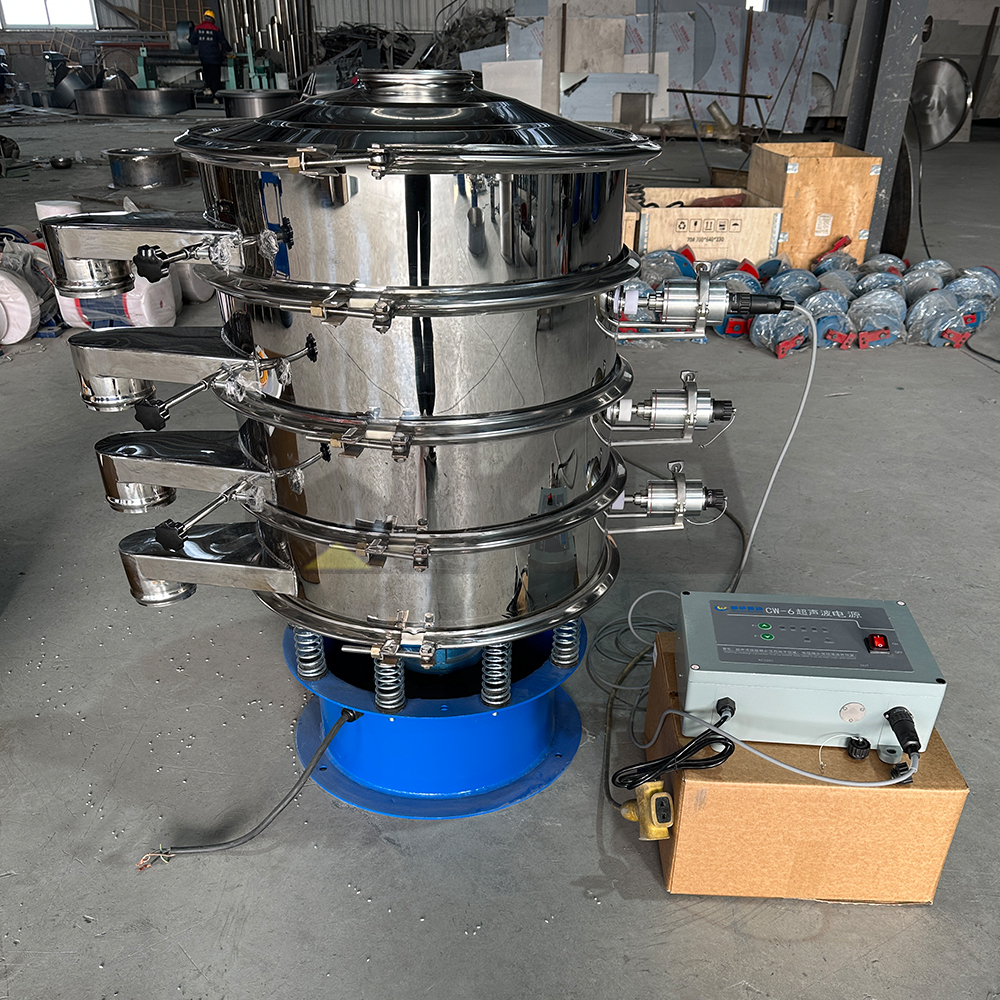

Ultrasonic Wave Rotary Vibrating Screen

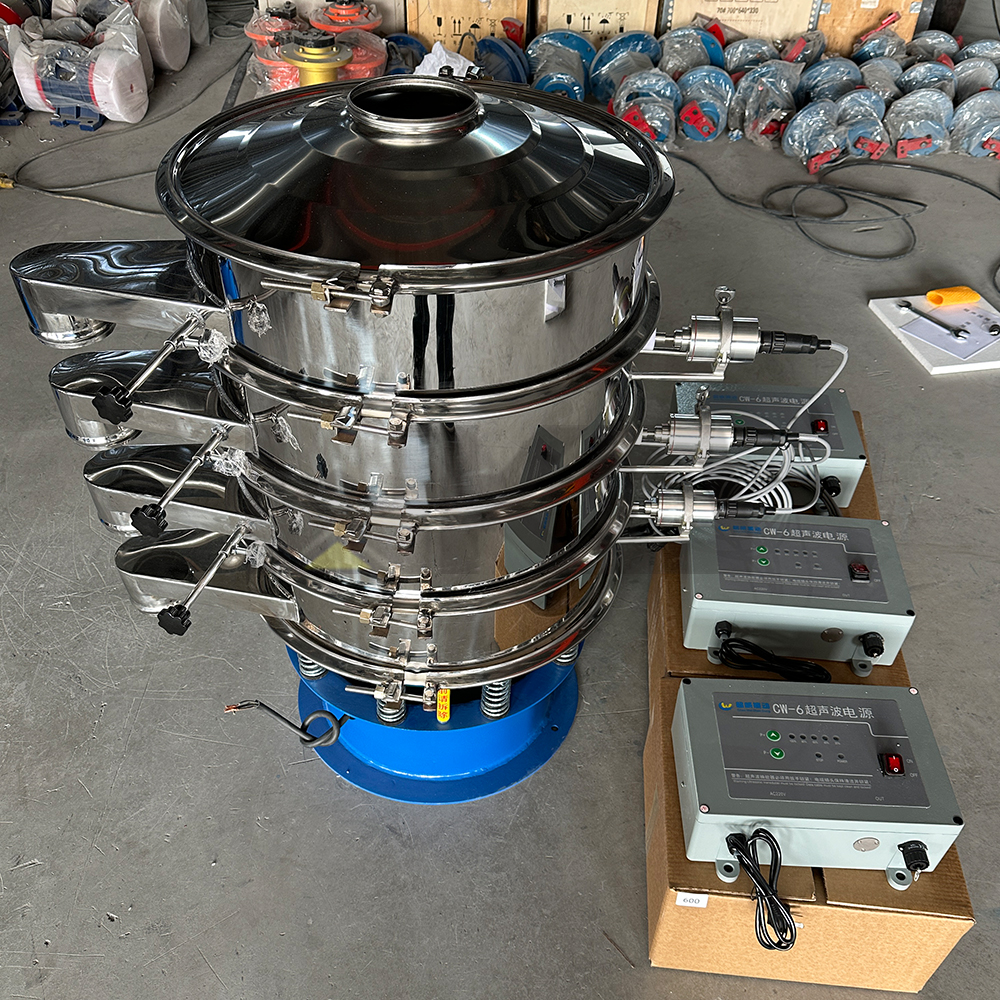

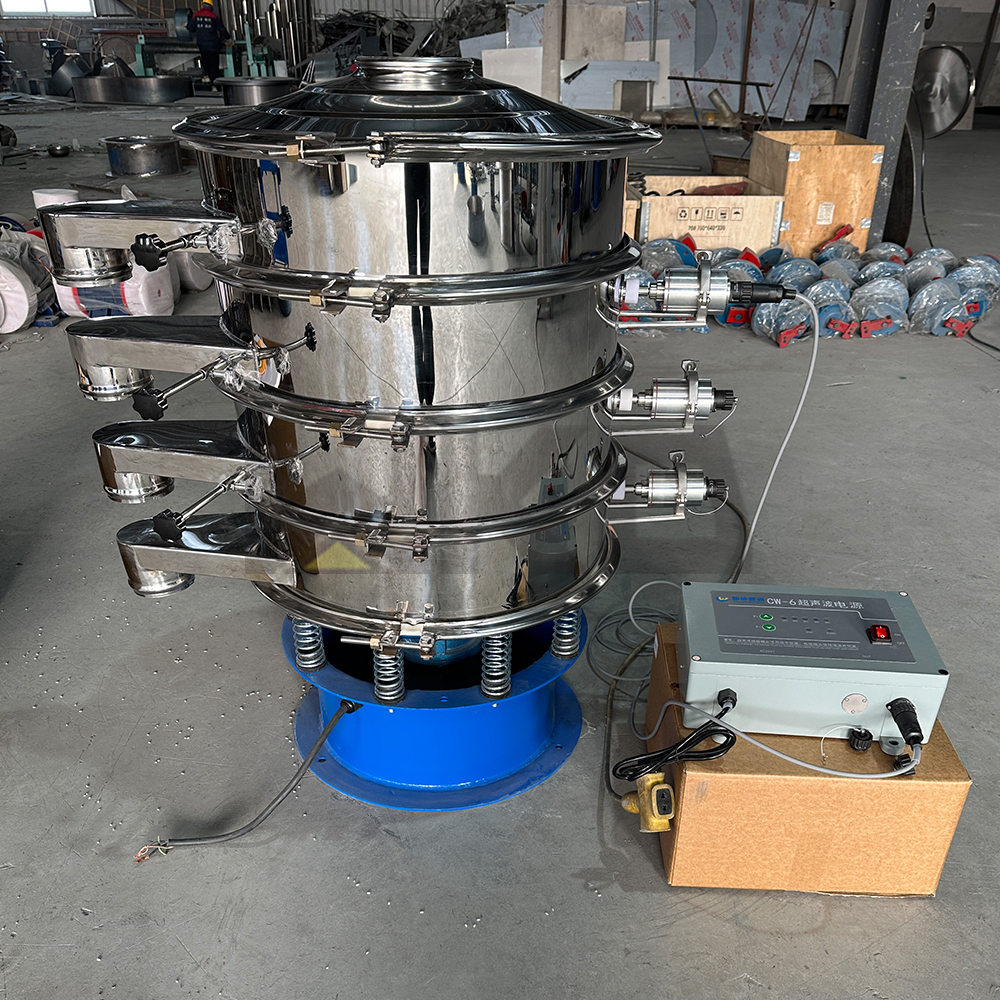

Ultrasonic vibrating sieve shaker is a kind of equipment which has prominent advantages in solving materials sieving problems,such as high absorption, easy agglomeration,high static,high precision degree,light weight problems,etc. It consists of ultrasonic producer and vibrating screen. By adopting advanced intelligent vibrating ultrasonic controller,materials on the net do low frequent vibration along with supersonic vibration ,thus not only solve the problem of jam but also greatly improve its output and quality.

rotary vibrating screen (14).jpg

Working Principle

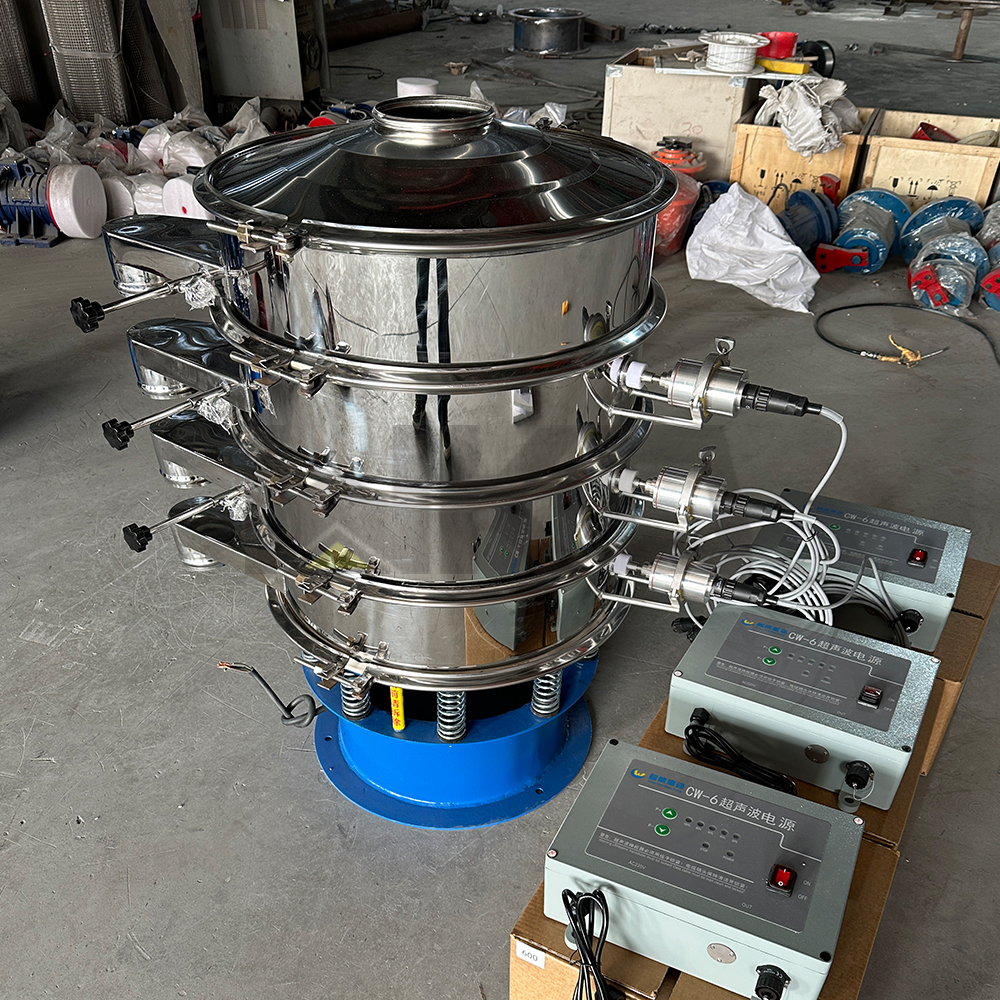

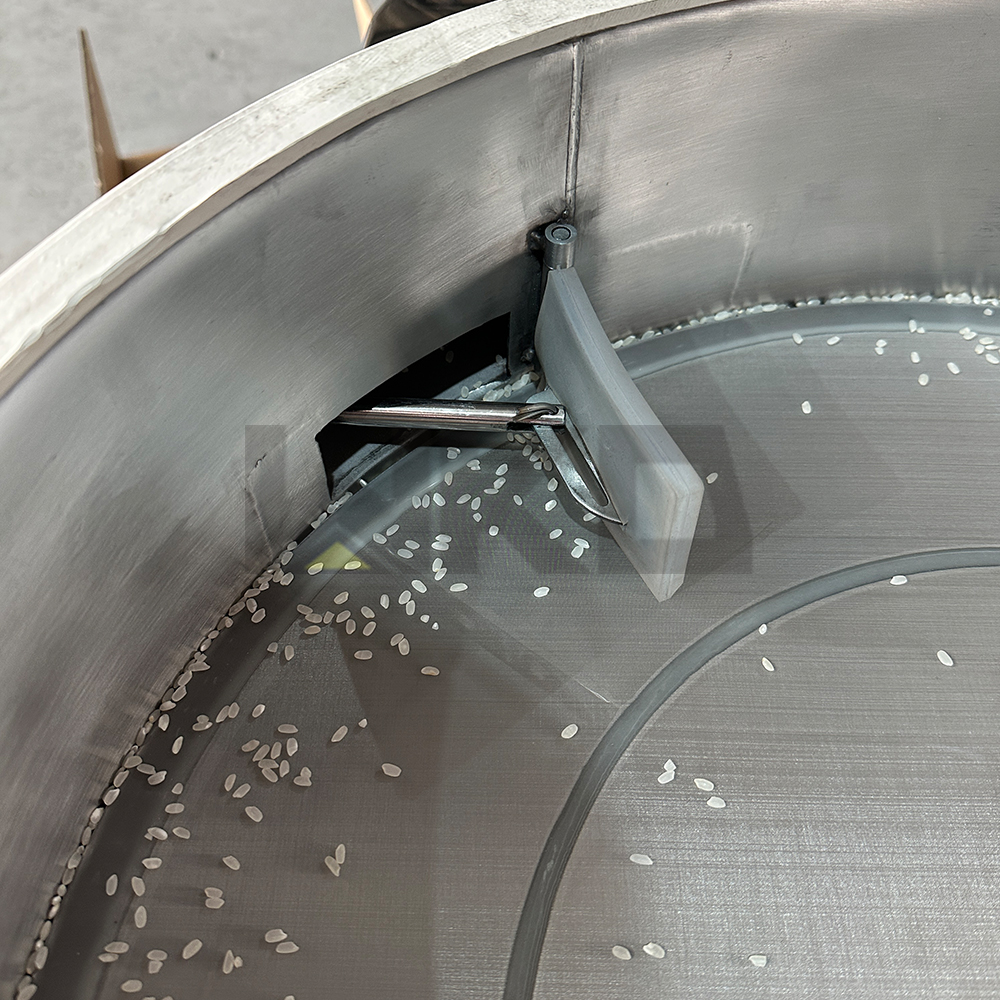

The function principle of ultrasonic vibrating sieve shaker is adding an ultrasonic energy transform device on the screen surface of 3-D vibrating separator and filter. This device can make the screen surface superpose ultra high frequency vibrational energy, so that it can keep clear of the net and achieve the ideal screen situation. Ultrasonic shaker screen is usually used in screening superfine powder which the ordinary vibrating screen can not reach.

rotary vibrating screen (7).jpg

Application

It is widely used in size classification, product reclamation ,screening and liquid cleaning. Details are as follows:

1. Chemical industry: resin, pigment, cosmetic, coatings, medicine powder

2. Food industry: sugar powder, starch, salt, rice noodle, milk powder, egg powder, sauce, syrup

3. Metallurgy and Mine industry: aluminum powder, copper powder, ore alloy powder, welding rod powder

4. Medicinal industry: all kinds of medicine.

Gold Separating Machine.jpg

Parameters

Model	Outside Dia.(mm)	Screen Surface Dia.(mm)	Effective Screening Area(m2)	Max Feeding Size(mm)	Screen Mesh	Layer	Vibrating Time	Power(kW)
wkd-400	400	360	0.09	＜10	2-500		1500	0.22
wkd-600	600	560	0.22	＜10	2-500	1-5	1500	0.25
wkd-800	800	760	0.4	＜20	2-500	1-5	1500	0.55
wkd-1000	1000	930	0.63	＜20	2-500	1-5	1500	0.75
wkd-1200	1200	1130	0.95	＜20	2-500	1-5	1500	1.1
wkd-1500	1500	1430	1.5	＜20	2-500	1-5	1500	2.2
wkd-1800	1800	1730	2.3	＜30	2-500	1-5	1500	3.0
wkd-2000	2000	1930	2.86	＜30	2-500	1-5	1500	4.5
