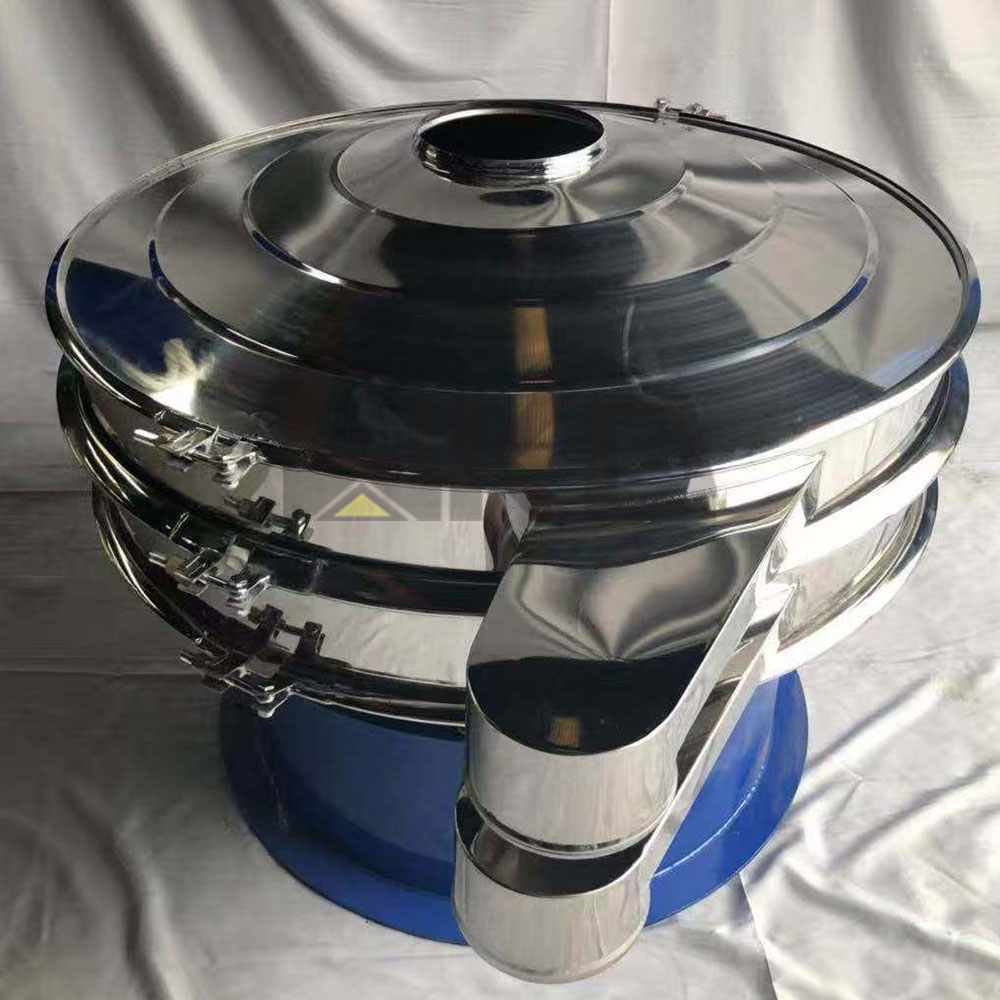

Rotary Vibrating Screen

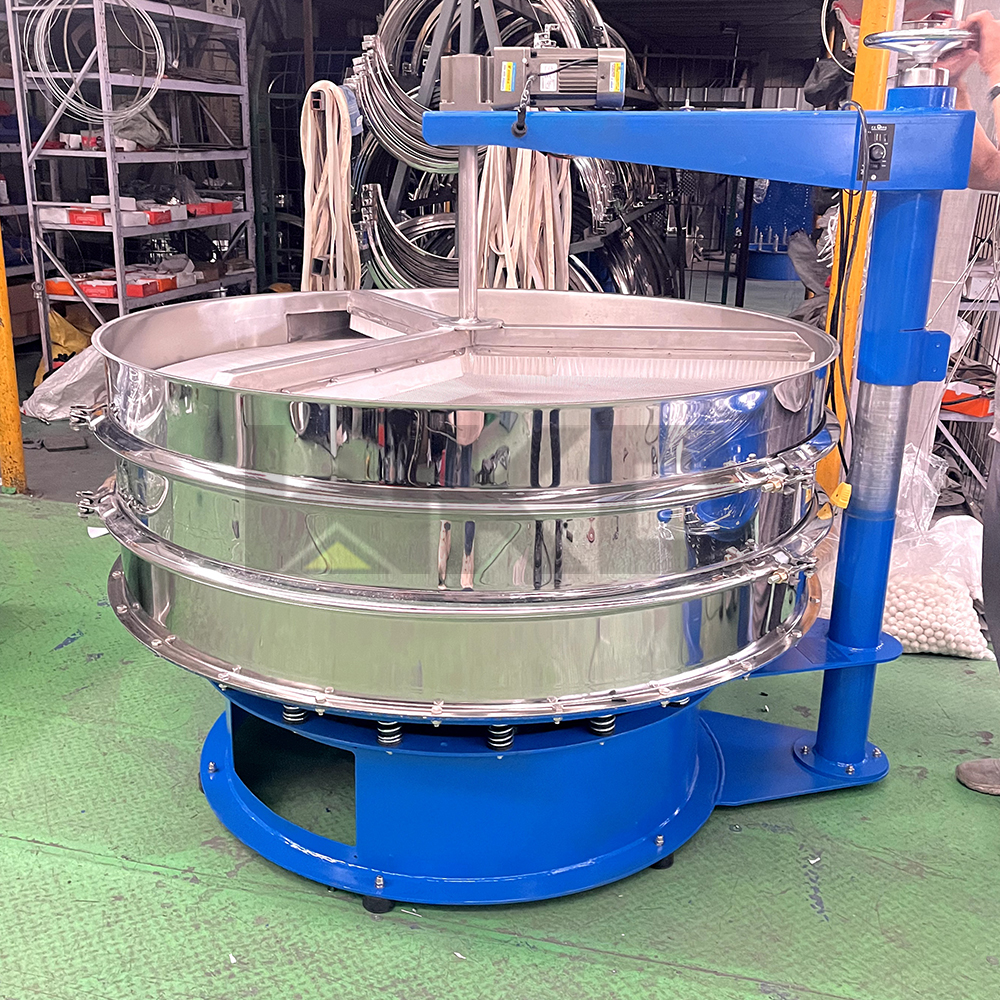

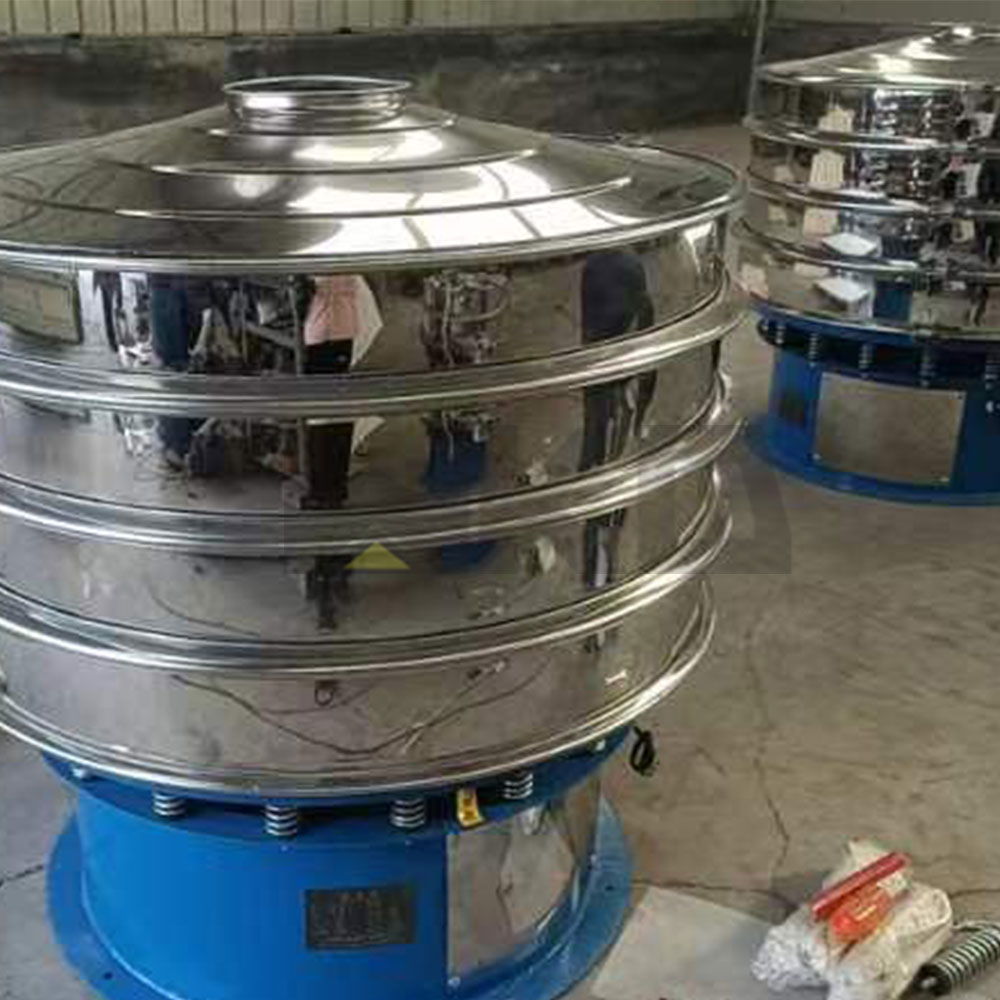

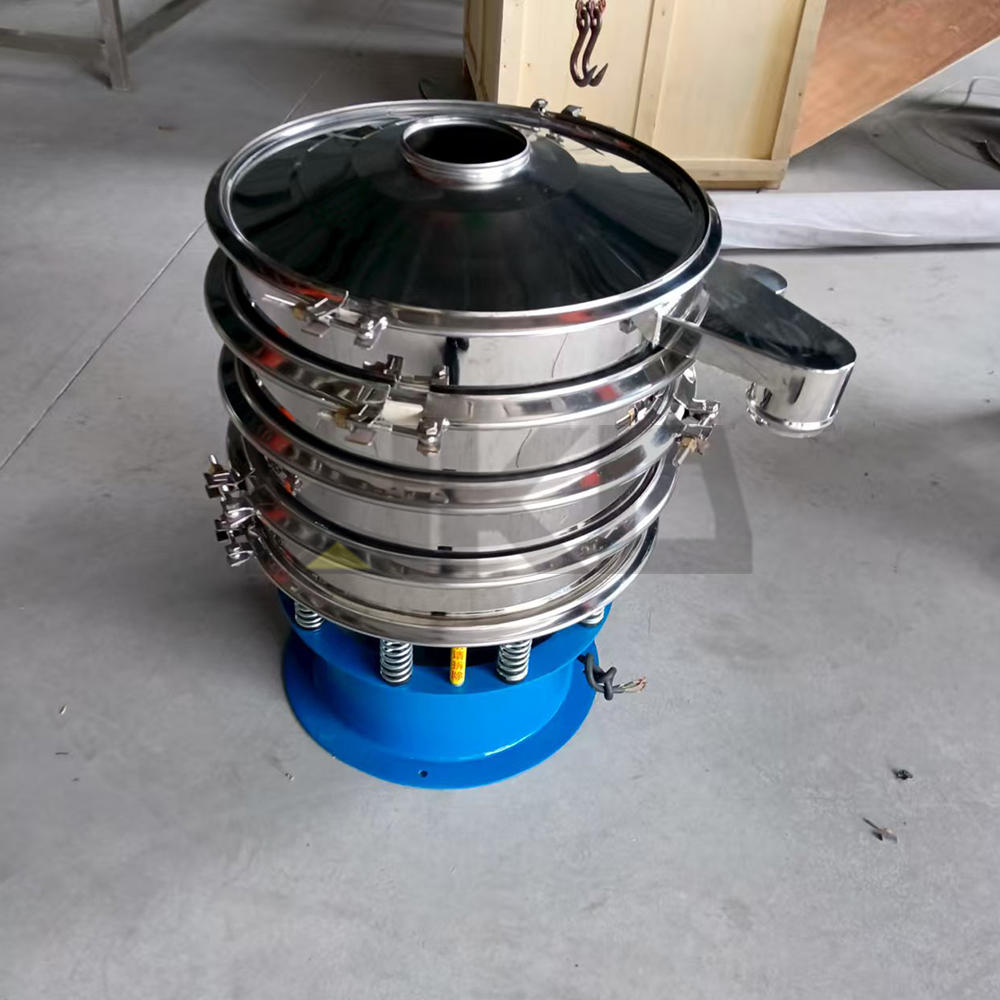

Rotary vibration screen is a high precision fine powder screening machine, with low noise and high efficiency. It takes 3-5 minutes to quickly change the net.The rotary screen is made of an upright motor as the excitation source. The upper and lower ends of the motor are equipped with eccentric hammer. The rotary motion of the motor is transformed into horizontal, vertical and inclined tridimensional motion, which is then transmitted to the screen surface.By adjusting the phase Angle of upper and lower ends, the movement track of materials on the screen surface can be changed.Materials can be fine screening, probability screening, etc.

1 (2).jpg

Features

1.The widest range of screening: applicable to all kinds of particles, powder, and slurry filter.

2.The mesh not block: a variety of specially designed screen of the cleaning device make the probability of blocking the mesh approach the minimum.

3.Single layer and multi-layer separation; Single layer filtration, once to achieve the requirements

4.Easy to change the screen; no deformation of the mesh, long service life of screen, high efficiency

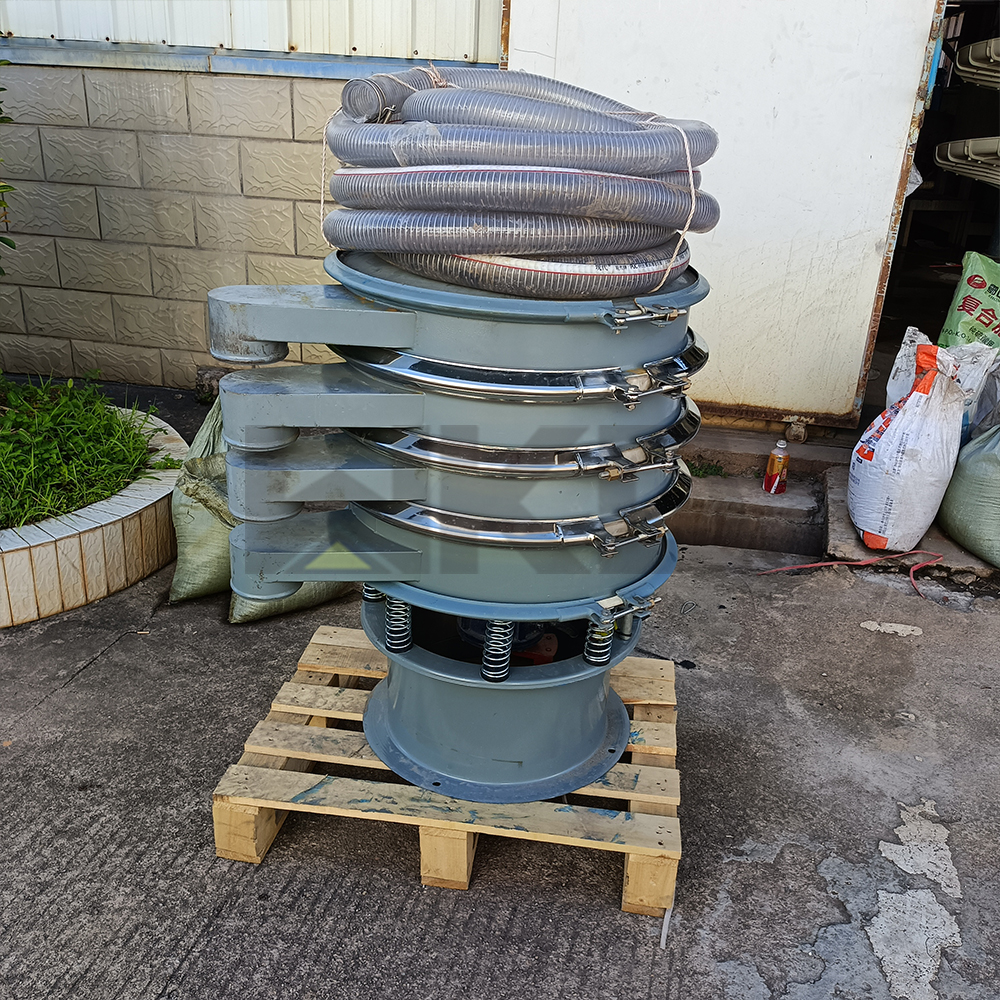

rotary sieve (1).jpg

Application

1.Chemical industry: resin powder, pigment, washing powder, micro powder, paint, soda ash, lemon powder, etc.

2.Abrasives and ceramics industry: alumina, quartz sand, mud, spray soil.

3.Food industry: sugar, salt, alkali, monosodium glutamate, milk powder, soy milk, yeast, juice, soy sauce, vinegar, etc.

4.Paper industry: coating paint, clay mud, black and white liquid, waste liquid, papermaking liquid, waste water recycling.

5.Metallurgical industry: titanium oxide, zinc oxide, electromagnetic materials, metal powder, electrode powder, etc.

6.Pharmaceutical industry: Chinese medicine powder, Chinese medicine liquid, western medicine powder, western medicine liquid, Chinese and Western medicine granules, etc.

7.Environmental protection: garbage, human and animal urine, waste oil, food waste water, wastewater treat

Gold Separating Machine.jpg

Parameter

Model	Dimention (mm)	Screen Surface Diameter (mm)	Effective Screening Area (m2)	Max Feeding Size	Screen Mesh	Layer	Vibration Time	Power (kW)
WKD-400	400	360	0.09	＜10	2-500	1-5	1500	0.22
WKD-600	600	560	0.22	＜10	2-500	1-5	1500	0.25
WKD-800	800	760	0.4	＜20	2-500	1-5	1500	0.55
WKD-1000	1000	930	0.63	＜20	2-500	1-5	1500	0.75
WKD-1200	1200	1130	0.95	＜20	2-500	1-5	1500	1.1
WKD-1500	1500	1430	1.5	＜20	2-500	1-5	1500	2.2
WKD-1800	1800	1730	2.3	＜30	2-500	1-3	1500	3.0
WKD-2000	2000	1930	2.86	＜30	2-500	1-3	1500	4.5
