Vibrating Feeder

Vibrating feeder is a kind of equipment that can feed blocky and granular materials from the storage bin evenly, regularly and continuously to the receiving device. In the sand and gravel production line, it can continuously and uniformly feed the crushing machinery and coarsely screen the materials.

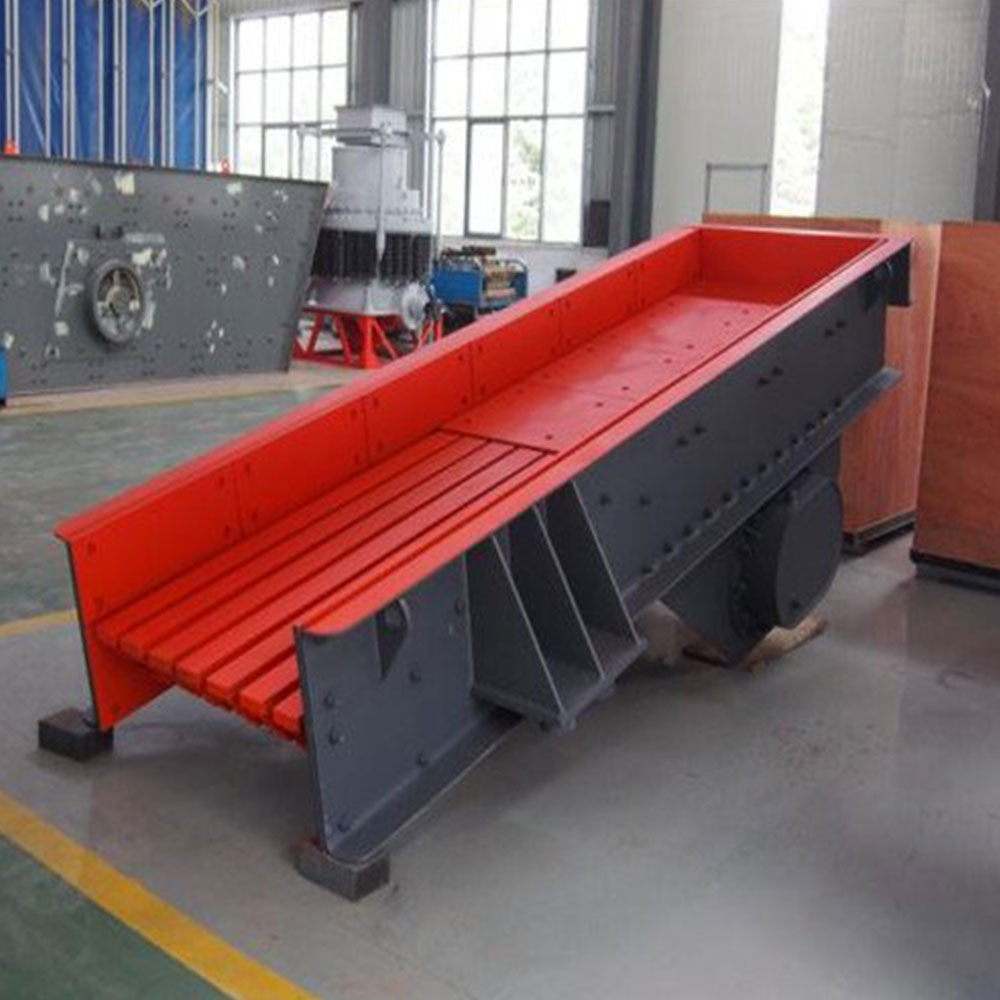

vibrate feeder (6).jpg

Working Principle

The vibrating feeder uses the rotation of the eccentric block in the vibrator to generate centrifugal force, so that the movable parts such as the screen box and the vibrator are forced to perform continuous circular or approximately circular motion. The vibrating feeder is composed of a feed trough body, an exciter, a spring support, and a transmission device. The vibration source of the tank's vibration feed is the exciter, which is composed of two eccentric shafts (active and passive) and gear pair. When it rotates, the active and passive shafts rotate in opposite directions at the same time, causing the tank to vibrate, so that the material flows continuously and achieves the purpose of conveying the material.

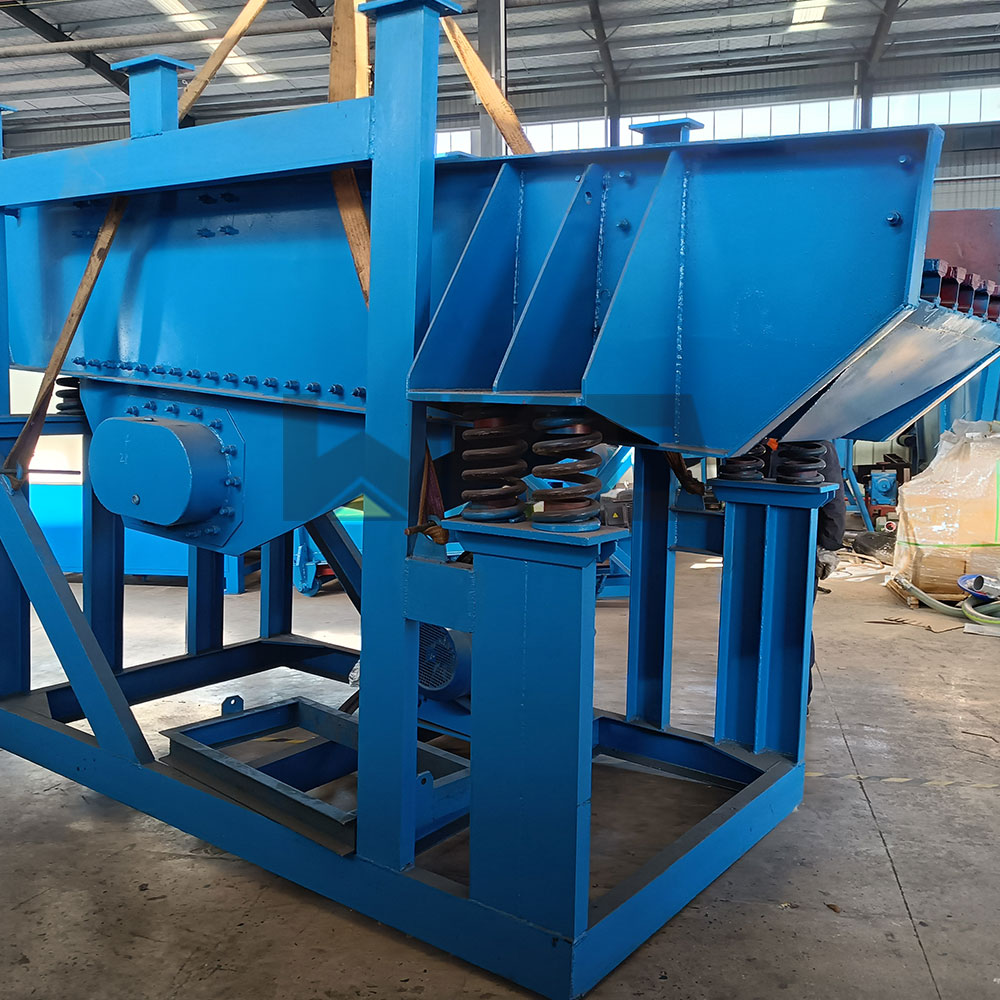

vibrating feeder (5).jpg

Parameters

Model	Max Feed Size(mm)	Capacity(T/H)	Power(kW)	Installation Angle(°）	Cell Size	Dimension Size
GZD-650*2300	300	80-100	1.2*2	10-20	650*2300	23001360780
GZD-750*2500	350	100-130	1.5*2	10-20	750*2500	25001460780
GZD-850*3000	400	120-150	3*2	10-20	850*3000	311018001600
GZD-1000*3600	500	150-200	3.7*2	10-20	1000*3600	385019501630
GZD-1100*3600	580	240-300	3.7*2	10-20	1100*3600	360020501630
GZD-1300*3600	650	450-600	7.5*2	10-20	1300*3600	390023501750
GZD-1500*3600	1050	450-1000	7.5*2	10-20	1500*3600	390020001750
GZD-2000*3600	1200	550-1000	10*2	10-20	2000*3600	360020001750
GZD-2500*5000	1500	650-1500	18*2	10-20	2500*5000	500025001800
ZSW-380*96	500	100-180	8P-11	0-10	3800*960	396016401320
ZSW-490*110	630	150-140	6P-15	0-10	4900*1100	498018301320
ZSW-490*130	750	400-700	4P-22	0-10	6000*1300	608225802083
ZSW-600*150	800	500-900	4P-30	0-10	6000*1500	6086266221912
ZSW-600*180	900	700-1300	4P-45	0-10	6000*1800	631032622230
ZSW-600*200	1200	800-1500	4P-55	0-10	6000*20000	631032622230
