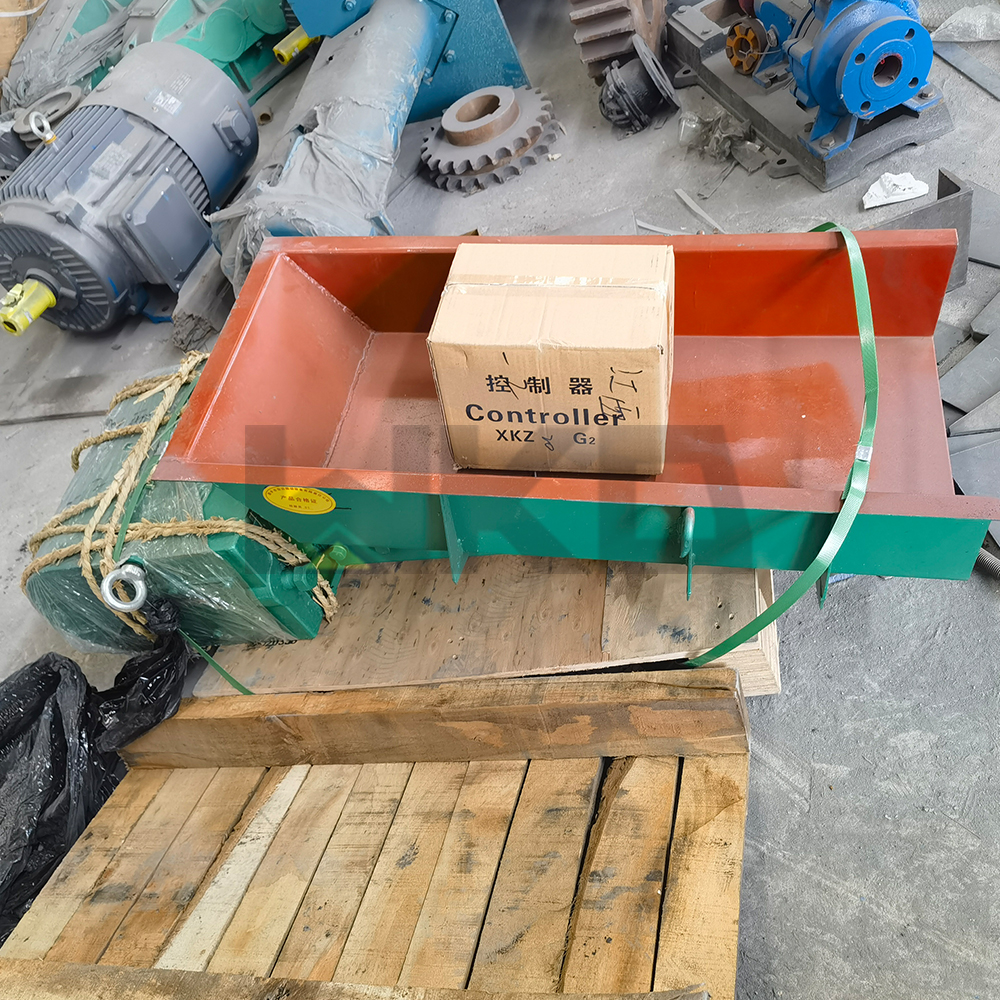

Electromagnetic Vibrating Feeder
GZ electromagnetic vibrating feeder is a device, which could feed those lump, granular and powder material into affected device from storage silo or hooper. It could speedless adjust the feeding amount, and realized that production lines centralized & automatic controlled. It is widely applied in mine, metallurgy, coal, light industry, power industry, machinery, food industry,etc. This machine has small amplitude, those sticky or wet powder material is not suitable to use it.

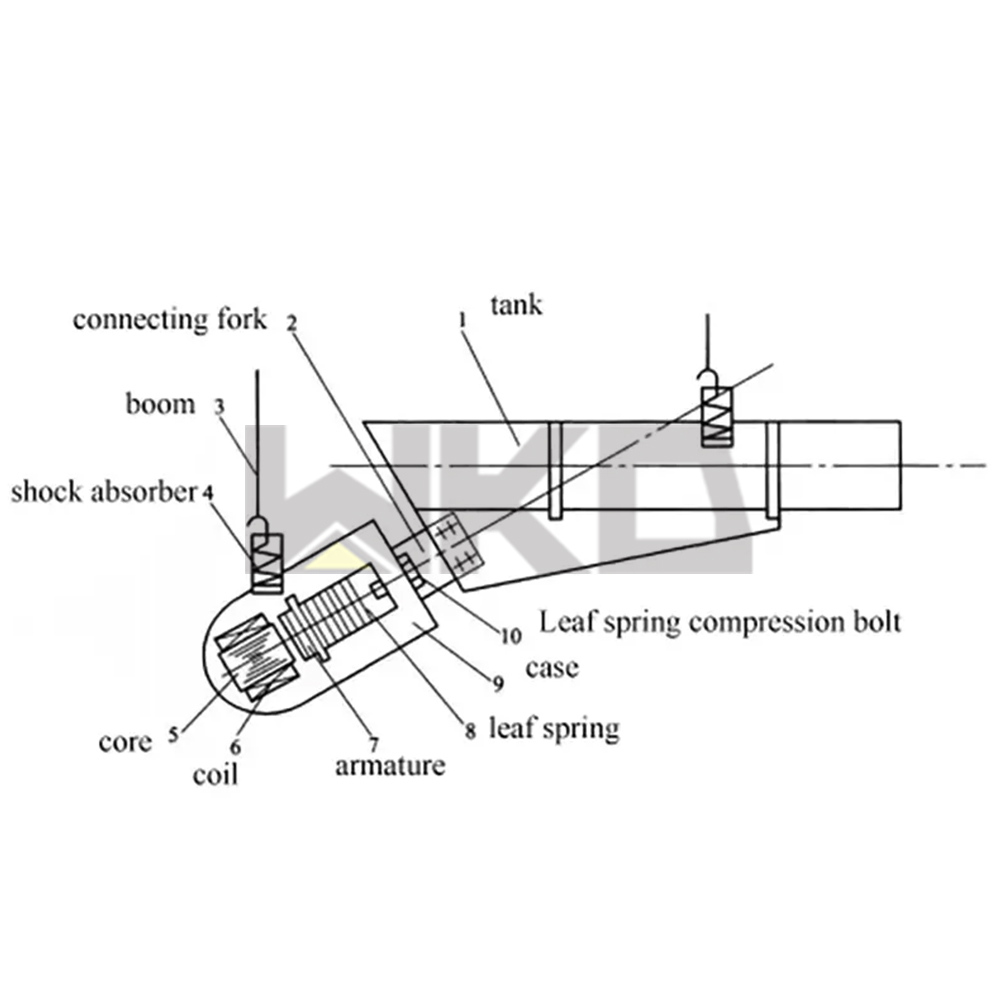

Structure
Feed through
Electromagnetic Vibrator
Shock absorber
Control box
Working Principle
The electromagnetic vibrating feeder is consist of feeding trough, exciter, spring bearing, transmission device etc. The vibration source of feeding tank vibration is exciter. The exciter is made up of two eccentric shafts and gears. The motor drives the main shaft through the triangle belt ,then the Good gear of the main shaft drive another shaft to rotate. The two shafts do reverse rotation at the same time and tank vibration to make the materials moving continuously. Thus they can achieve the goal of transporting materials.
Features
Simple structure in linear type ,easy in installation and maintation.
This series of electromagnetic vibration feeder has the advantages of small volume, low noise, light weight, high working frequency, low power consumption, and can be used to realize automation of production process in automatic control process.
Stepless adjustment of feeding quantity can start frequently and run continuously under rated voltage and amplitude conditions, which is convenient for installation and maintenance.
Parameters
