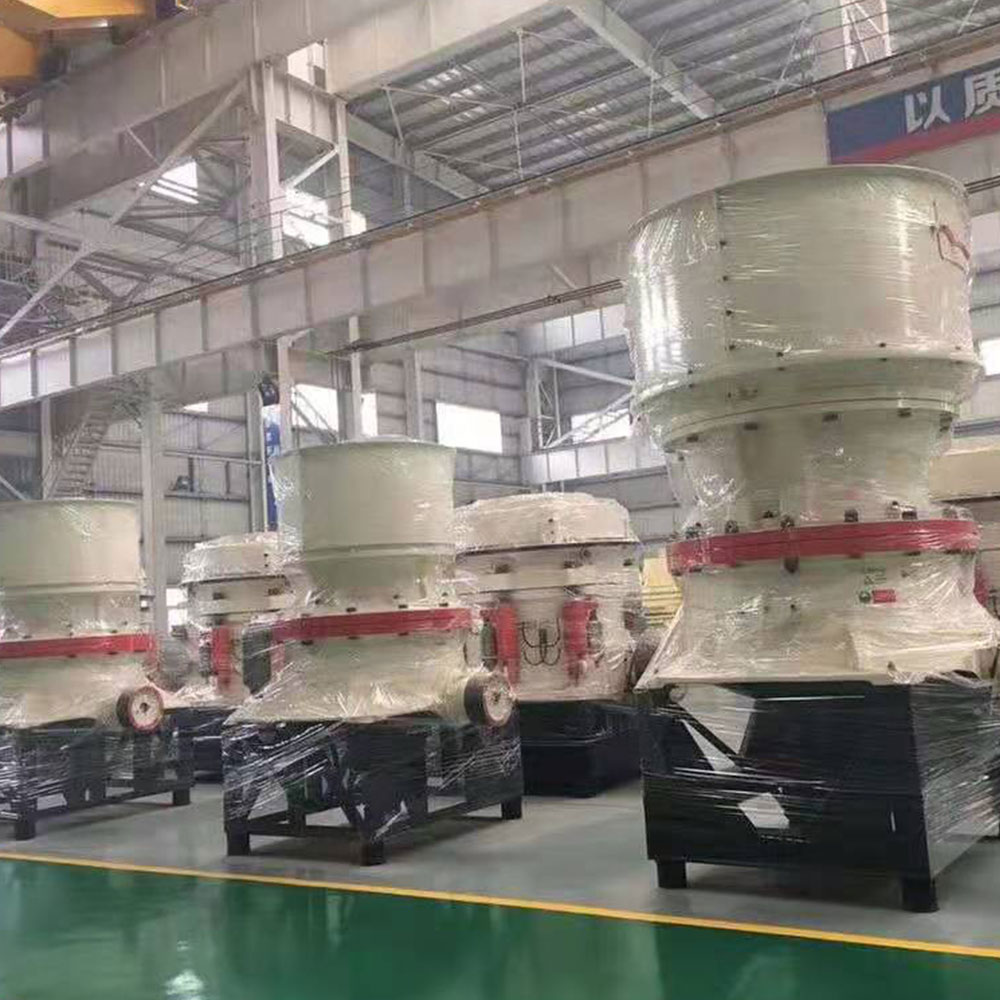

Cone Crusher

This series of crusher is suitable for crushing medium-hard ores and rocks It has the feature of simple structure, high efficiency, easy adjustment and economical operation

INQUIRY

Cone Crusher

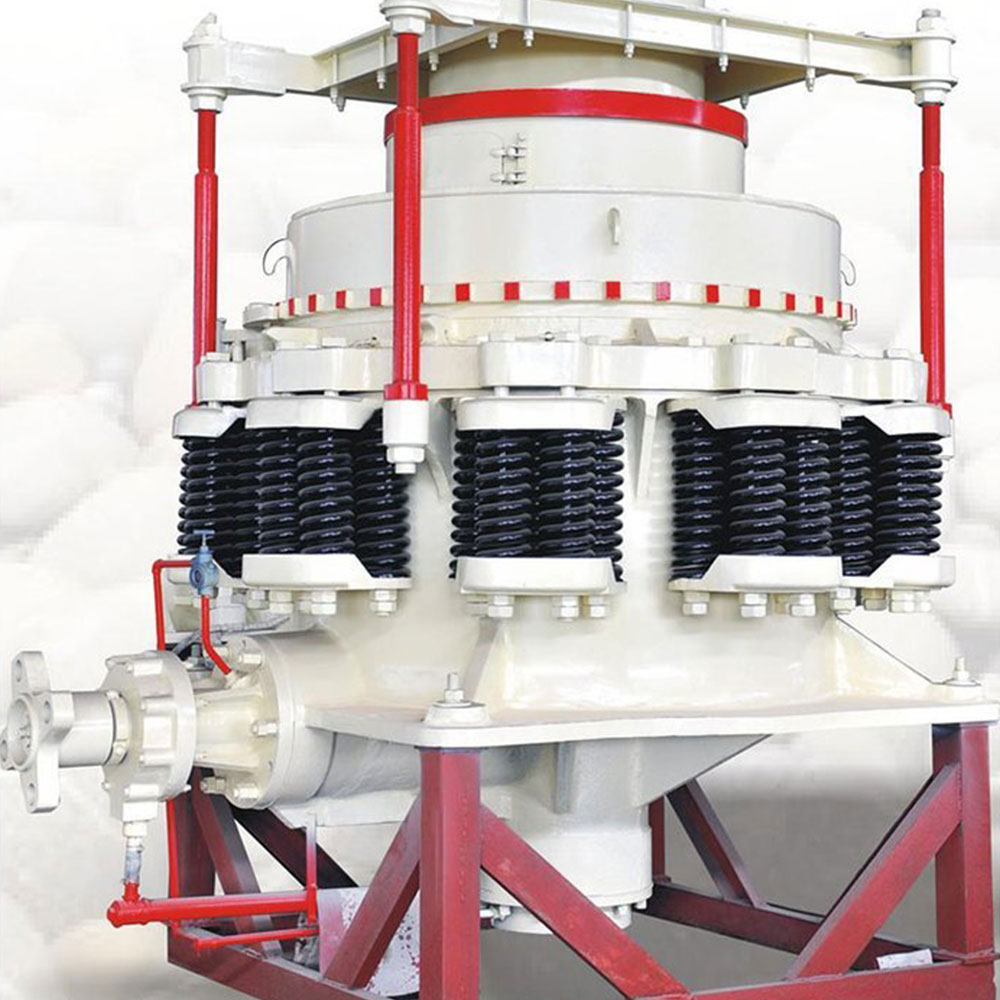

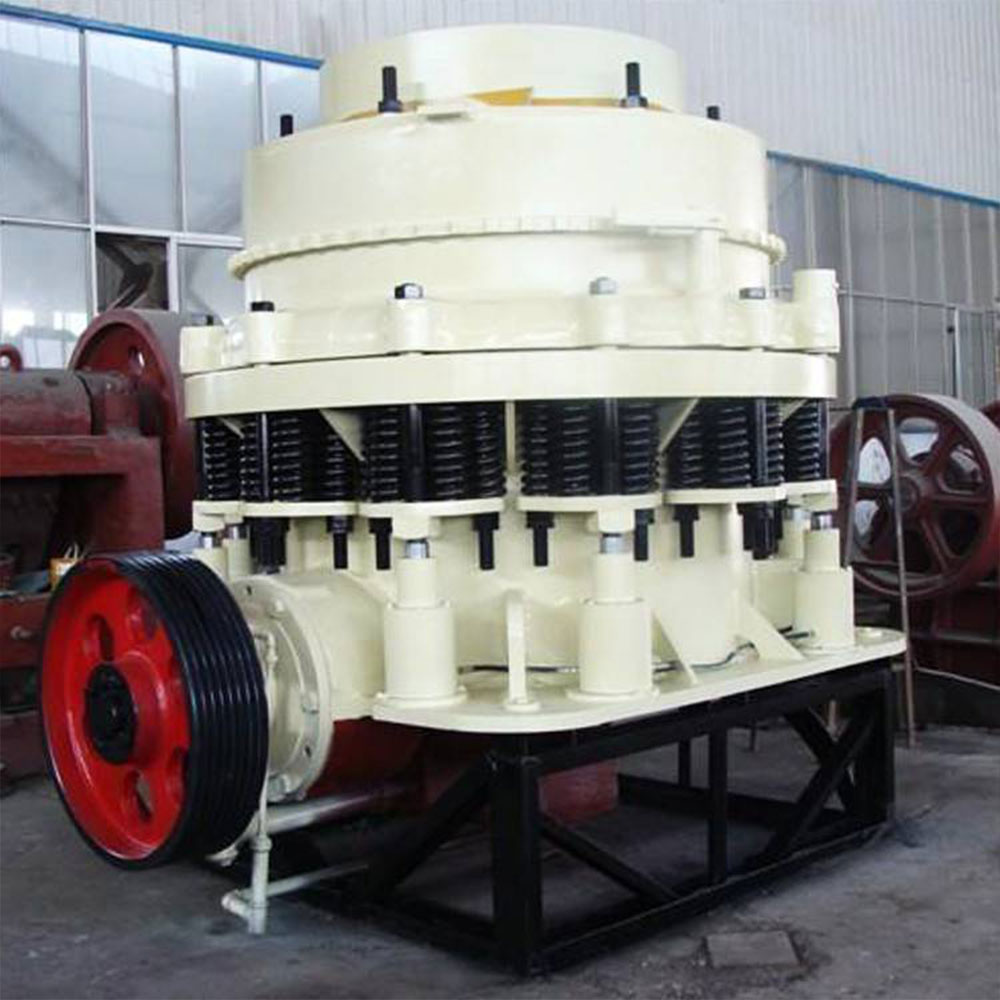

Spring Crusher machine mainly consists of frame, horizontal axis, cone brake, balance wheel, eccentric sleeve, upper crushing wall (welding cone), down crushing wall (movable cone), fluid coupling, lubricating system, hydraulic system and control system.

This series of crusher is suitable for crushing medium-hard ores and rocks. It has the feature of simple structure, high efficiency, easy adjustment and economical operation. The crushing chamber is determined by the using of the ores. The standard type is suitable for medium broken, the medium type is for the medium and fine rushing, and the short head type is for fine crushing.

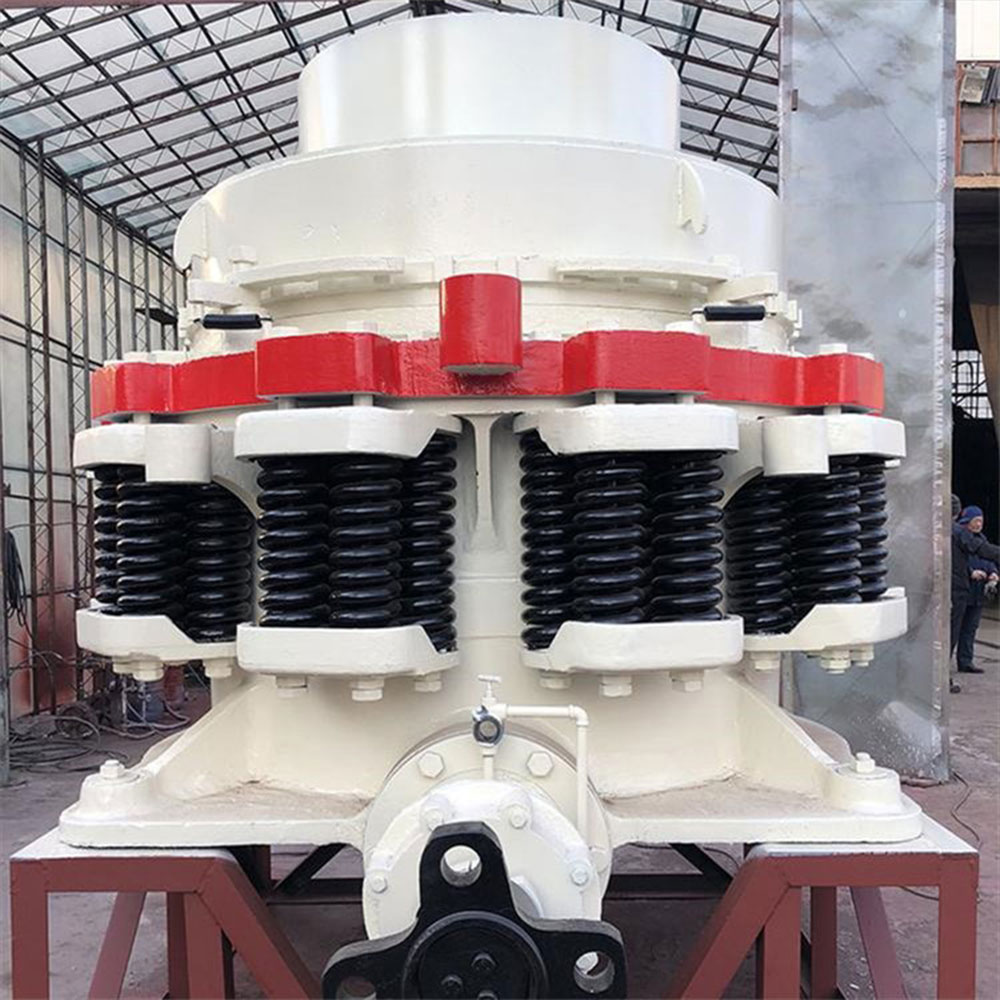

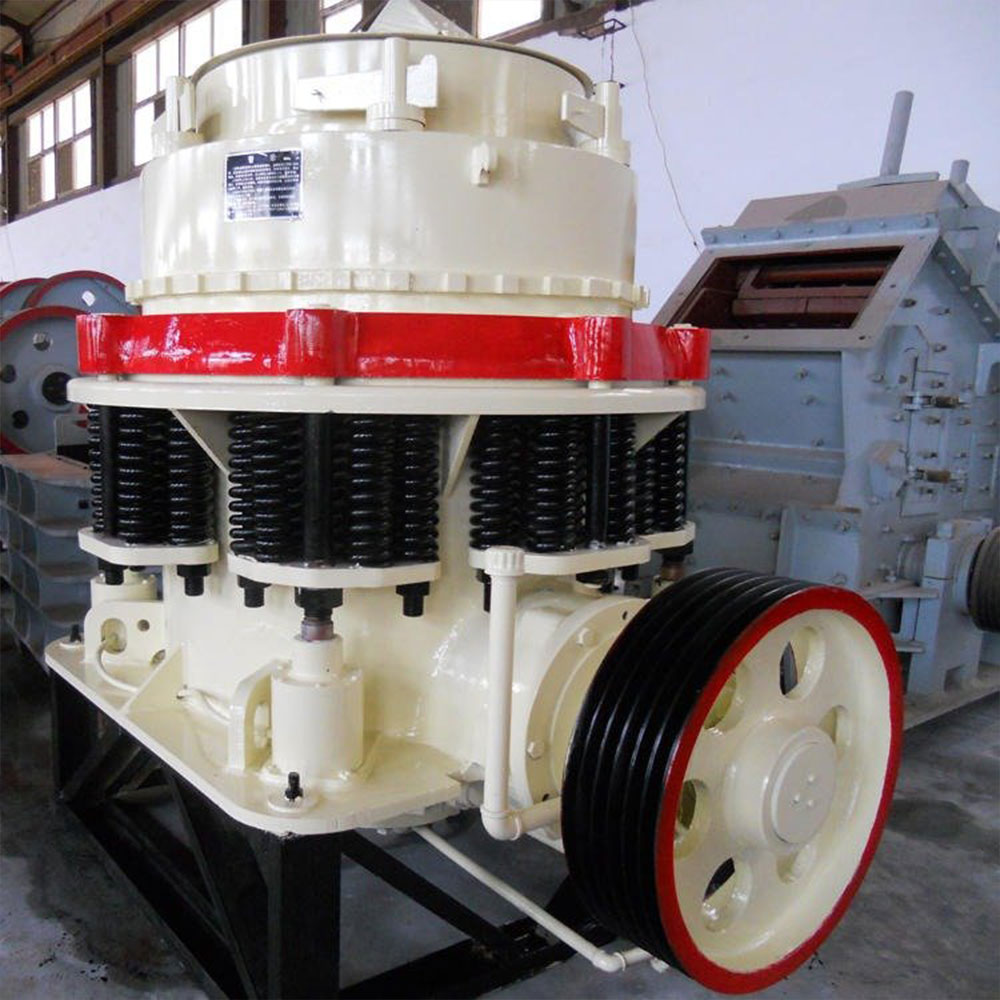

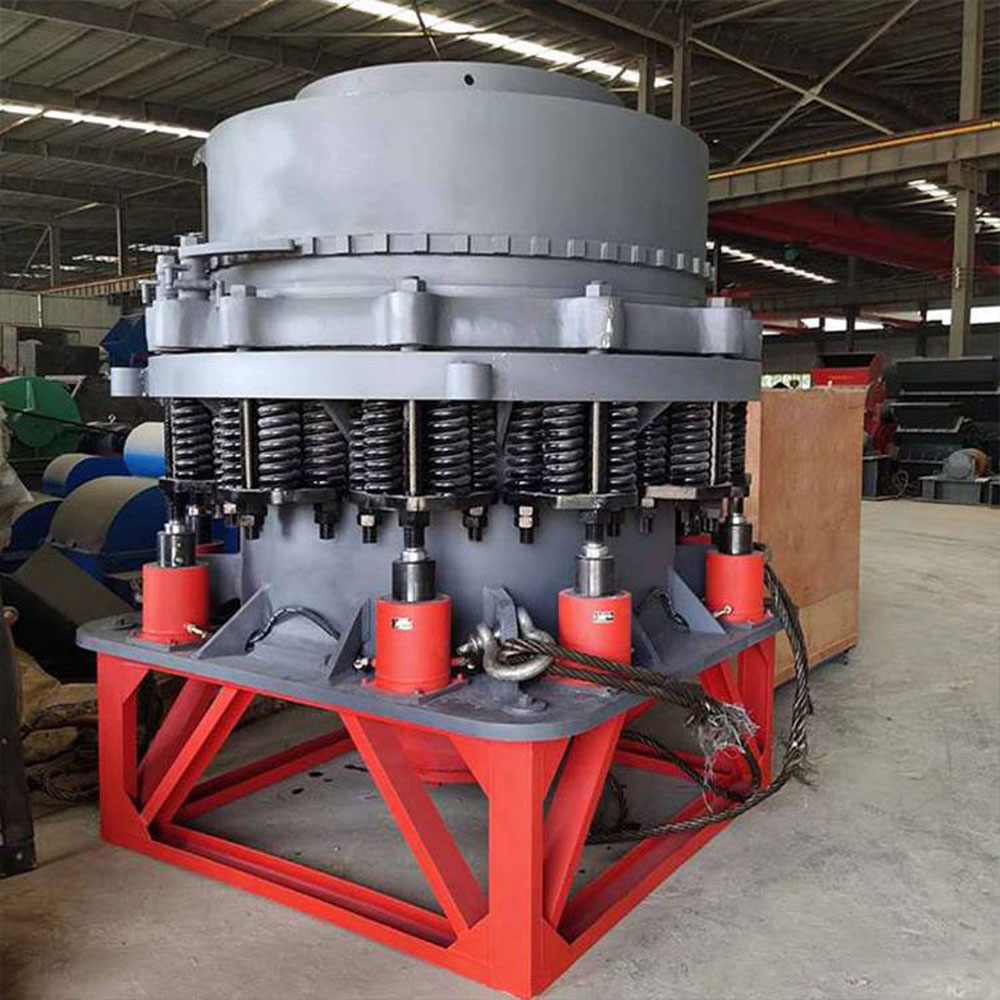

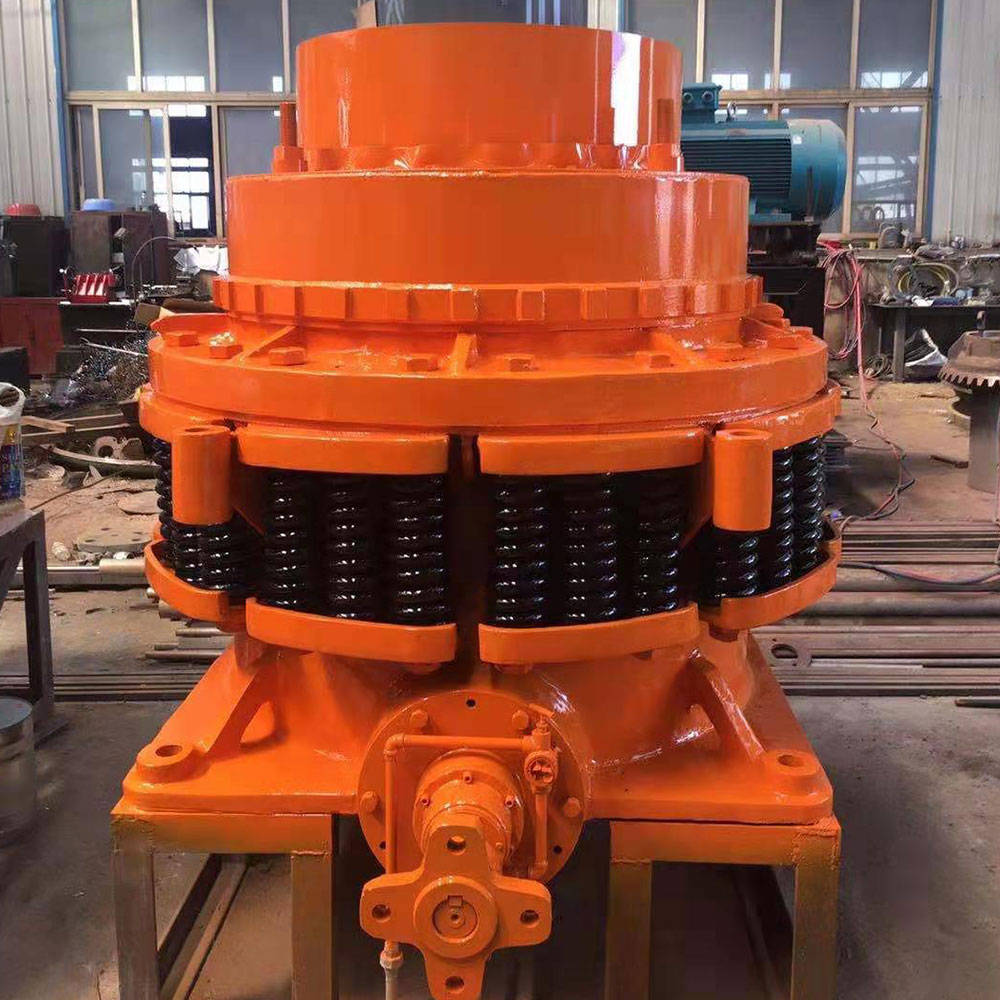

Crusher Cone (23).jpg

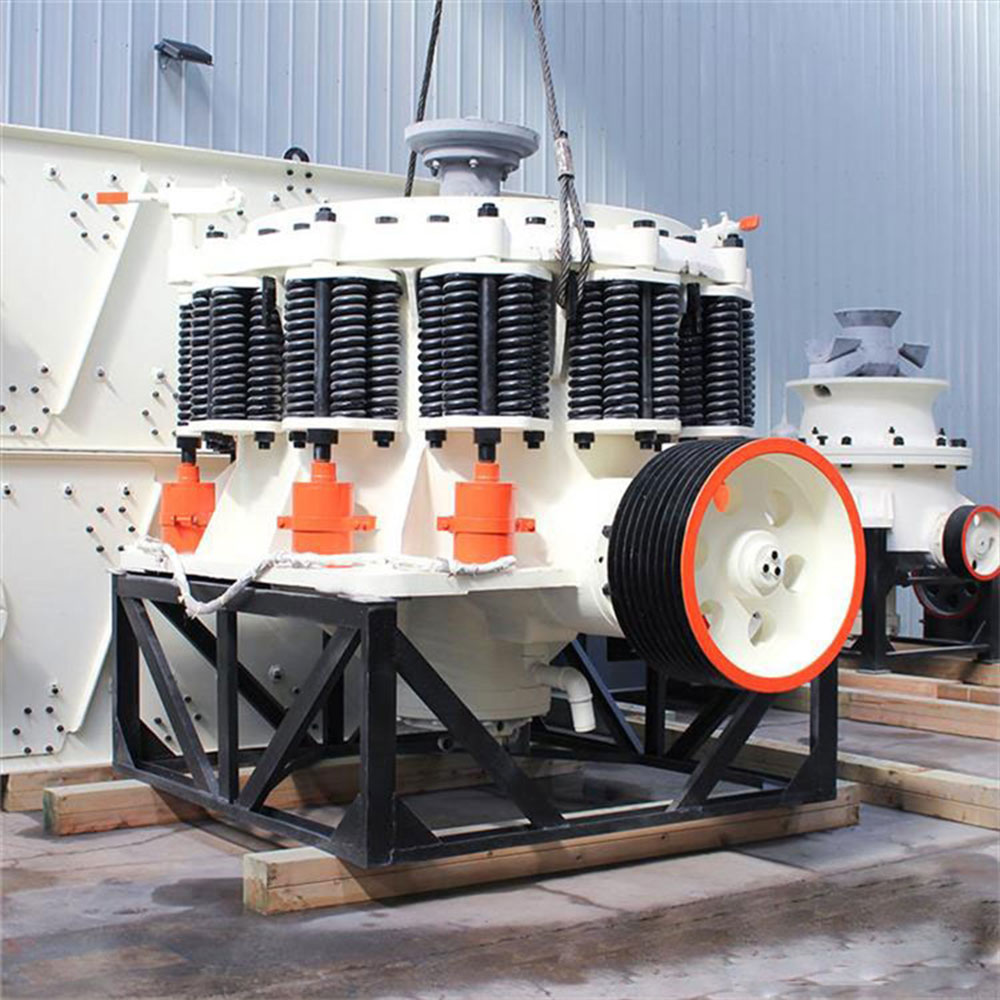

Working Principle

Spring Cone crusher crushes materials by the working surface between the movable cone and fixed cone. The movable cone of the cone crusher is supported by spherical bearing and fixed on an hanging erect shaft which is set in the eccentric sleeve, and the sleeve is set on the stopping and pushing bearing. The movable cone and erect shaft are derived by the eccentric shaft sleeve together.The eccentric shaft sleeve is driven by horizontal shaft and fabricated gear, and the wheel of the conveyor belt is derived by motor through v-belts.

The lower part of vertical shaft is installed in the eccentric sleeve. When the eccentric sleeve of cone crusher rotates, there is a conical surface lined out by the shaft. When the movable cone comes near the fixed cone, rocks are grinded into pieces, when the cone leaves, grinded materials is discharged from the discharge hole. The fixed cone can beascended or descended by adjusting setting to adjust the width of discharge hole, consequently the output size is determined.

Crusher Cone (15).jpg

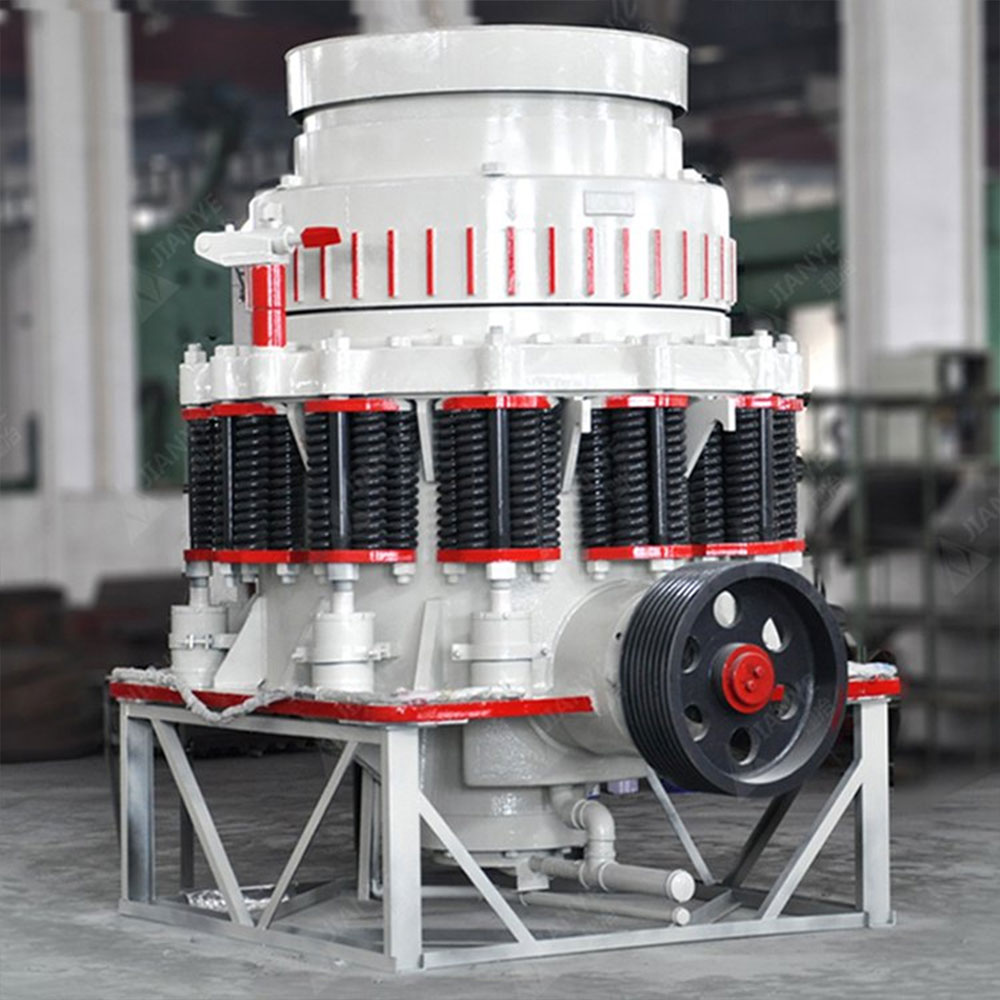

Features

The structure is classic, suitable for various working conditions and environments, and the equipment performance is stable and reliable.
The finished product is cubic in shape, with good particle size, meeting the demand for high-quality aggregates.
Replaceable cavity type, multi-purpose for one machine, meeting different process requirements for medium and fine crushing.
Utilizing a spring safety system with overload protection mechanism, it is easy to disassemble and maintain.
Adopting dual sealing protection of dry oil and water to extend bearing life.

Parameters

Type	Dia. of Cone(mm)	Discharge Setting(mm)	Max Feed Size(mm)	Capacity(t/h)	Power(kW)	Weight(t)	Dimension(mm)
PYB-600	600	12-25	62	15-25	30	5.5	280013001700
PYD-600	600	3-13	36	5-23	30	5.5	280013001700
PYB-900	900	15-50	115	50-90	55	10.18	302016402350
PYZ-900	900	5-20	60	20-65	55	10.19	302016402350
PYD-900	900	3-13	40	15-50	55	10.27	302016402350
PYB-1200	1200	20-50	145	110-200	110	24.7	415223001980
PYZ-1200	1200	8-26	100	50-150	110	25	415223001980
PYD-1200	1200	3-15	50	18-105	110	25.6	415223001980
PYB-1750	1750	25-60	215	280-480	155-160	50.6	602029484192
PYB-1750	1750	10-30	185	115-320	155-160	51	602029484192
PYB-1750	1750	5-15	85	75-230	155-160	50.5	602029484192
PYB-2200	2200	30-60	300	590-1000	260-280	84	770534325057
PYB-2200	2200	10-30	235	200-580	260-280	85	770534325057
PYB-2200	2200	5-16	110	120-370	260-280	85	770534325057
