Dewatering Vibrating Screen

Dewatering screen is also a kind of vibrating screen mainly for the dewatering of the mine tailings and sand, it concentrates the tailing slurry or sand first and then dewaters treated materials on the vibrating dewatering screen, where more than 85% water contain is removed.

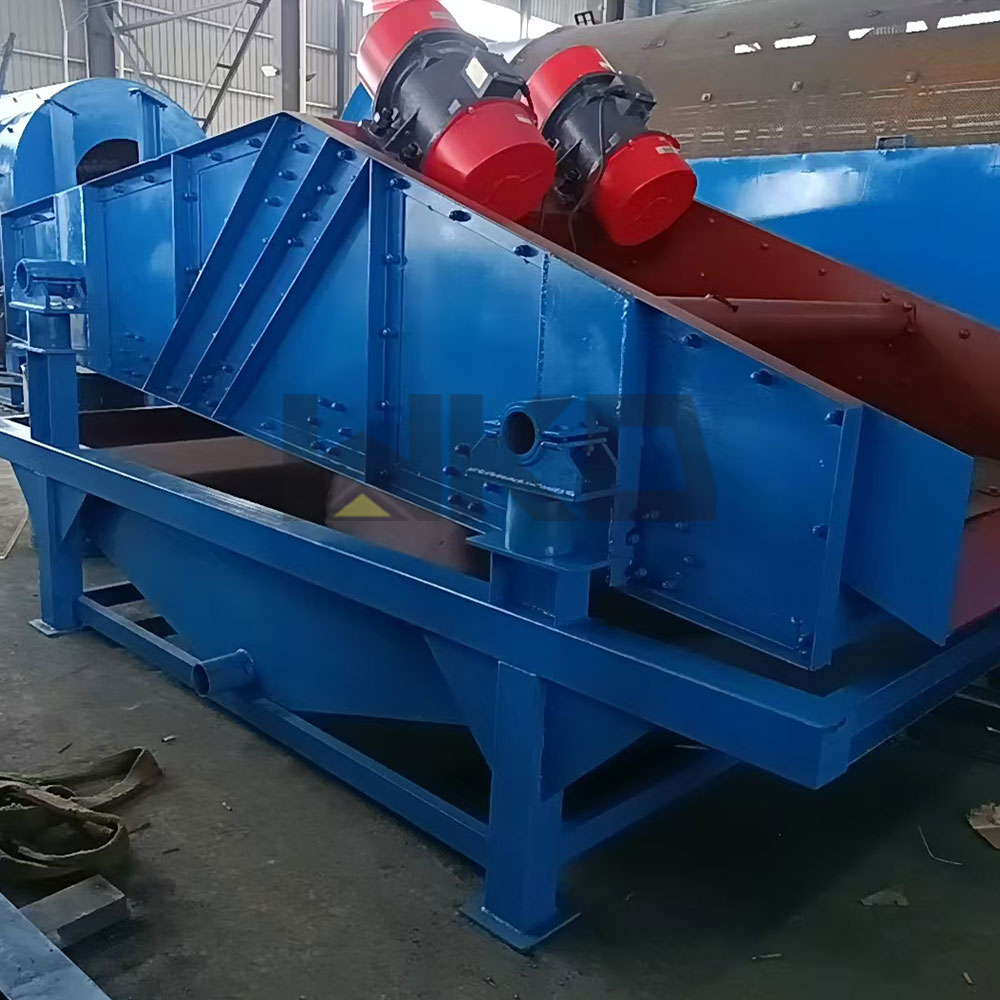

dewater screen (11).jpg

Working Principle

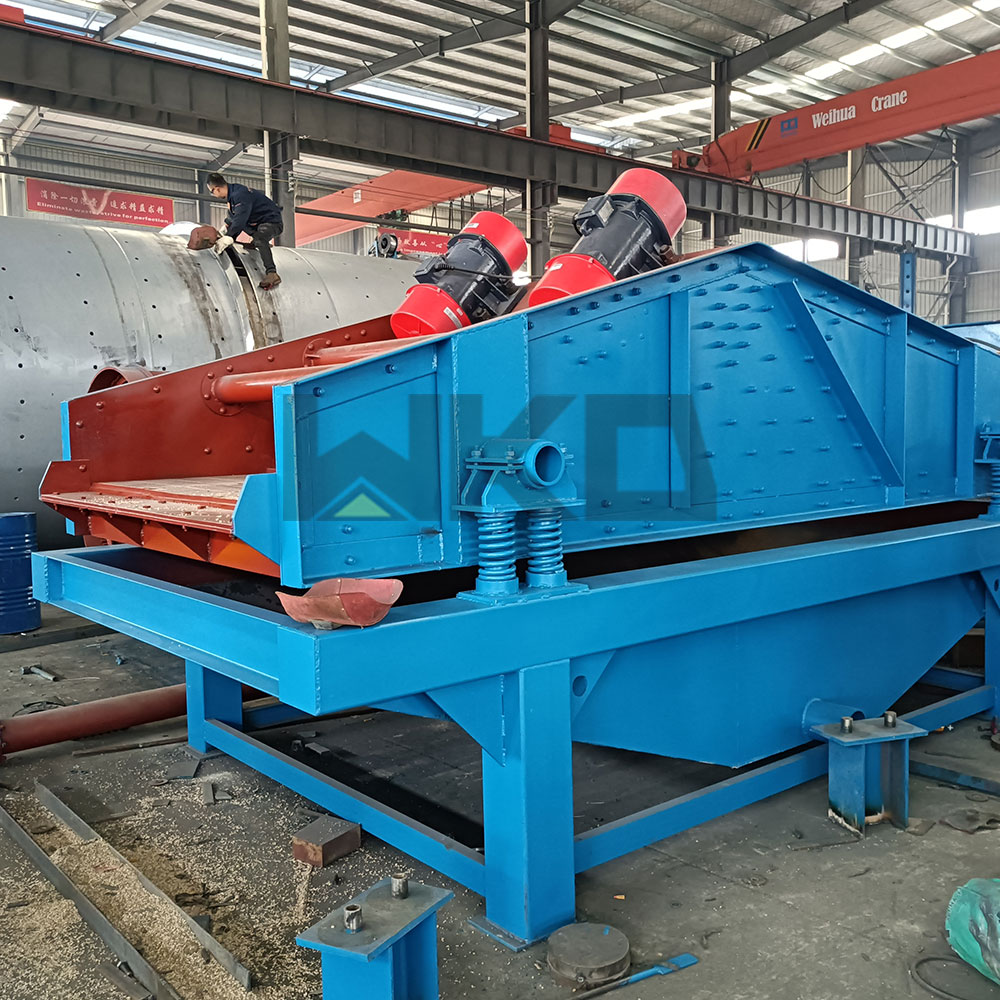

Dewatering screen adopts double vibration motor as power supply: The two motors that rotate synchronously and reversely and centrifugal force are produced by two groups of eccentric block. This makes the screen body periodical to-and-fro moving along the direction of straight line, which is for the purpose of dehydration. The screen frame is connected by the high-intensity bolts,so the structure is stable and durable.

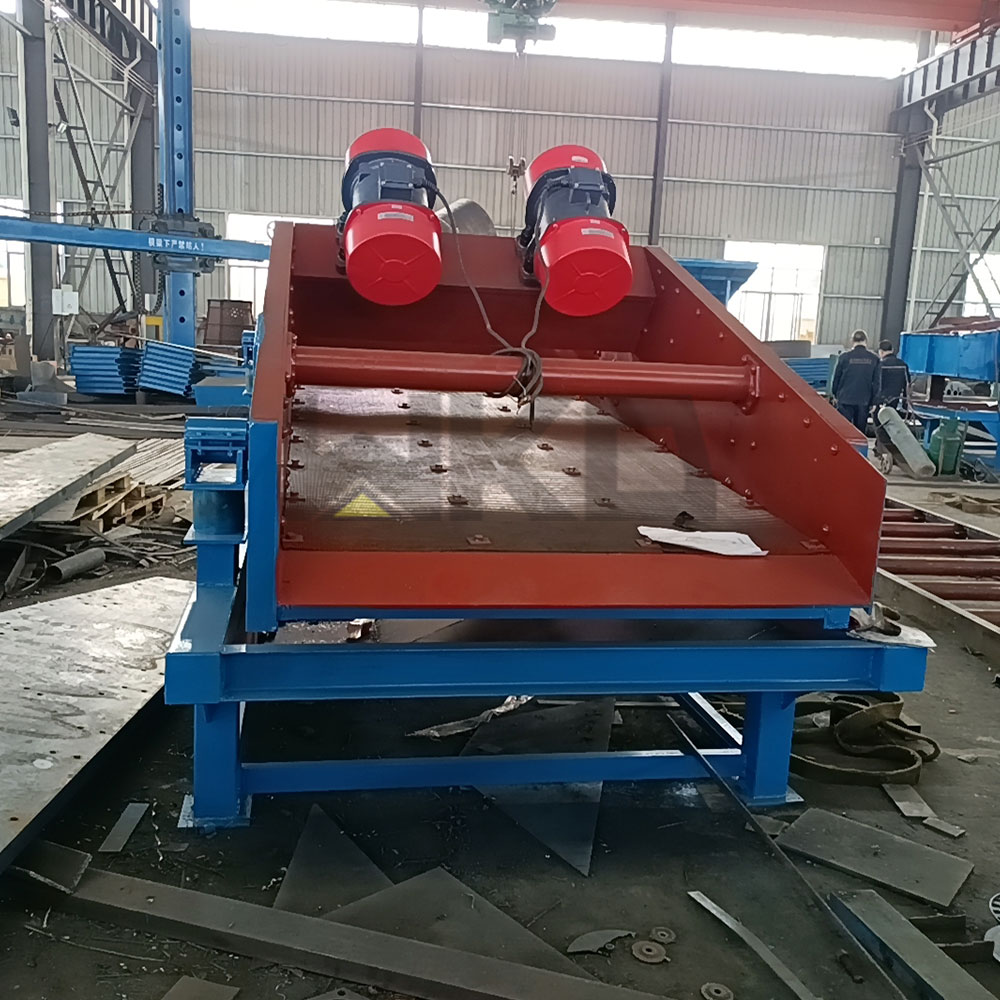

dewater screen (28).jpg

Application

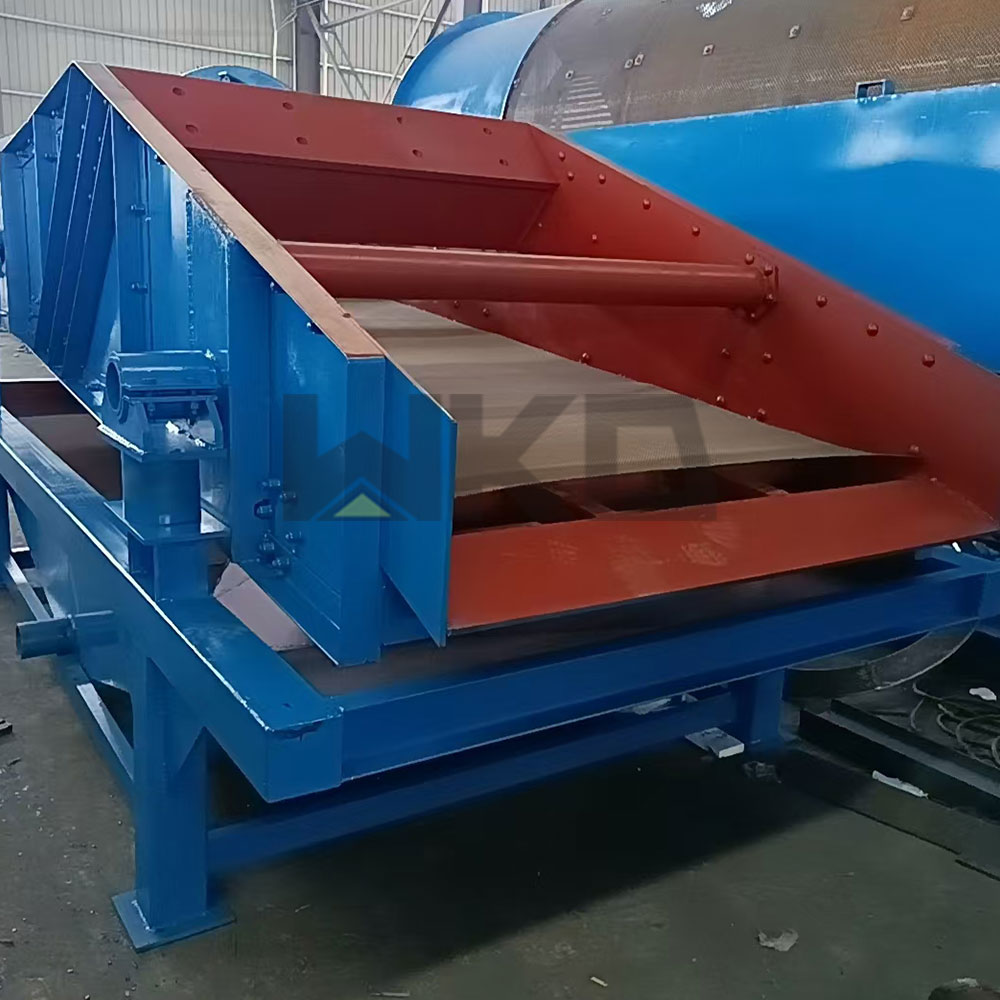

dewater screen (23).jpg

Parameters

Model	Area of Screen (m2)	Capacity (t/h)	Feeding Size (mm)	Power (kW)	Dimension (mm)	Weight (t)
TS0720	40	5-10	≤10	0.75*2	23001000750	0.8
TS0920	40	10-20	≤10	1.1*2	23001200750	1.2
TS1020	200	10-30	≤10	1.5*2	23001300750	1.6
TS1225	200	50-80	≤10	2.2*2	28001500800	2.1
TS1530	200	100-120	≤10	3*2	33001800800	3.2
TS1536	200	120-150	≤10	3*2	368318901421	3.8
TS1836	200	150-180	≤10	4*2	371524661855	4.8
TS1845	200	200-220	≤10	4*2	451524491987	6.5
TS2148	200	220-240	≤10	7.5*2	491527852142	7.6
