Ball Mill

Ball mill is the key equipment for grinding after the crushing process, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramic

INQUIRY

Gold Ball Mill

0 (15).jpg

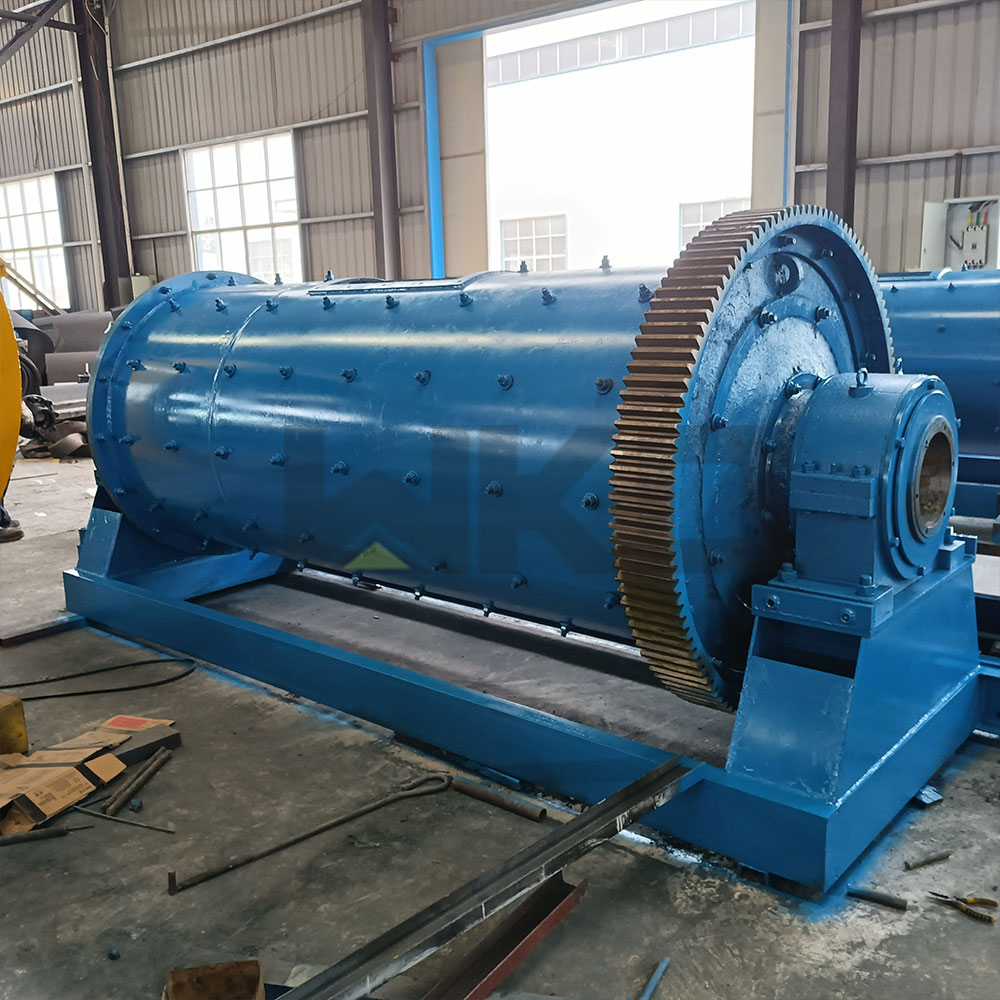

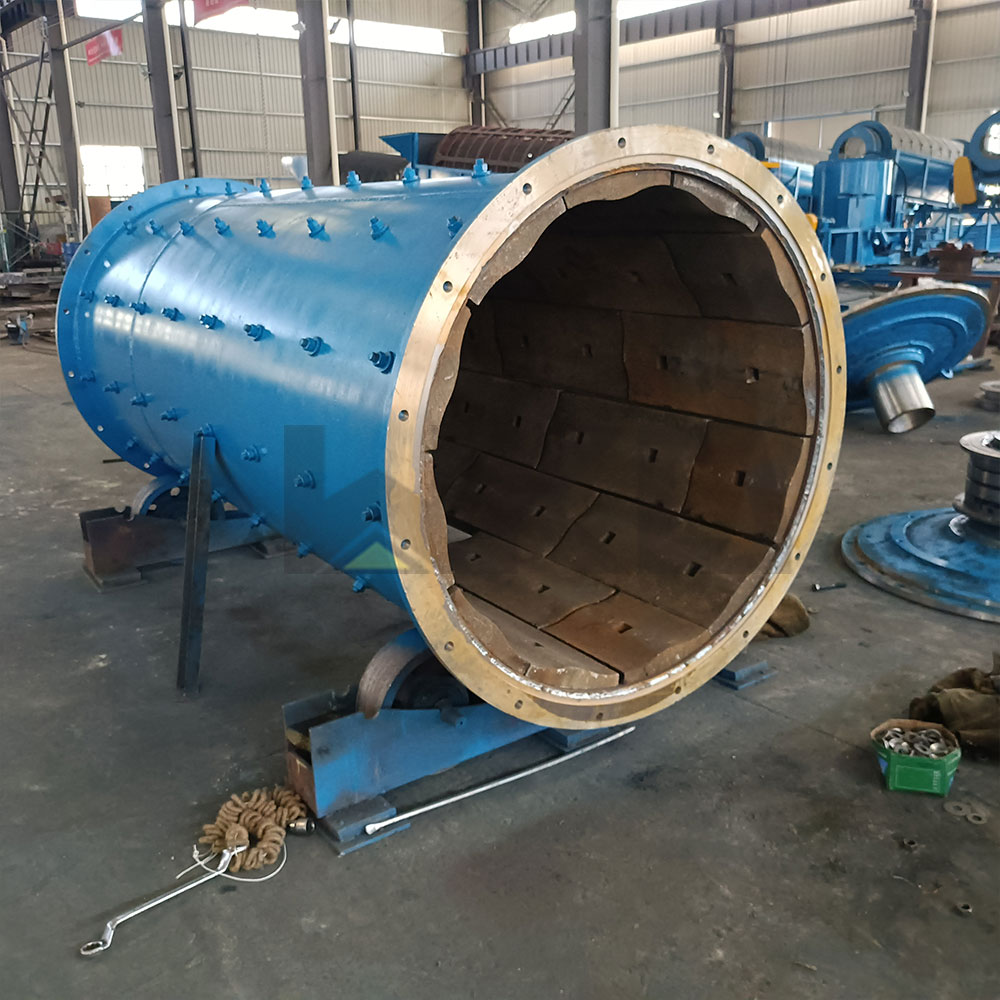

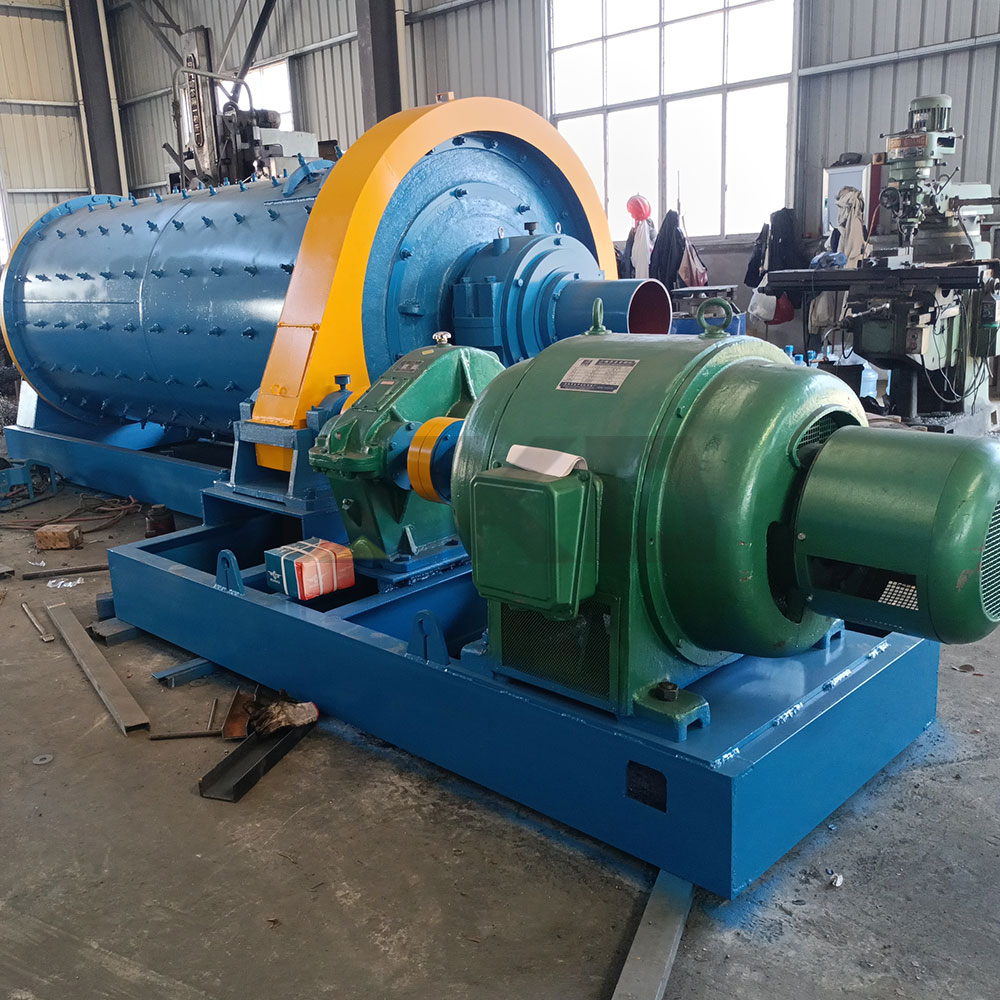

The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

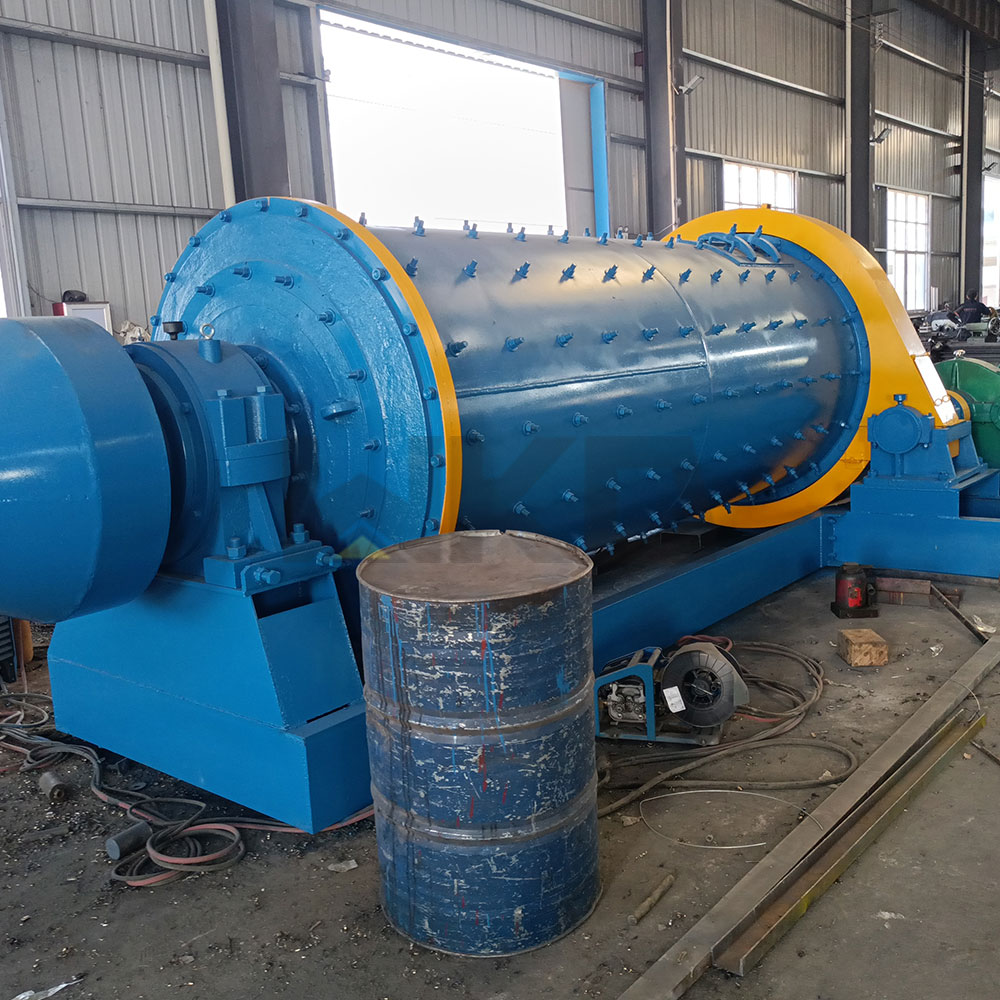

2 (2).jpg

Main Features

The transmission machinery of Energy-saving grate ball mill substitutes large-scale double row self-aligning roller bearing for sliding bearing. It is easy to start and saves energy up to 20-30%

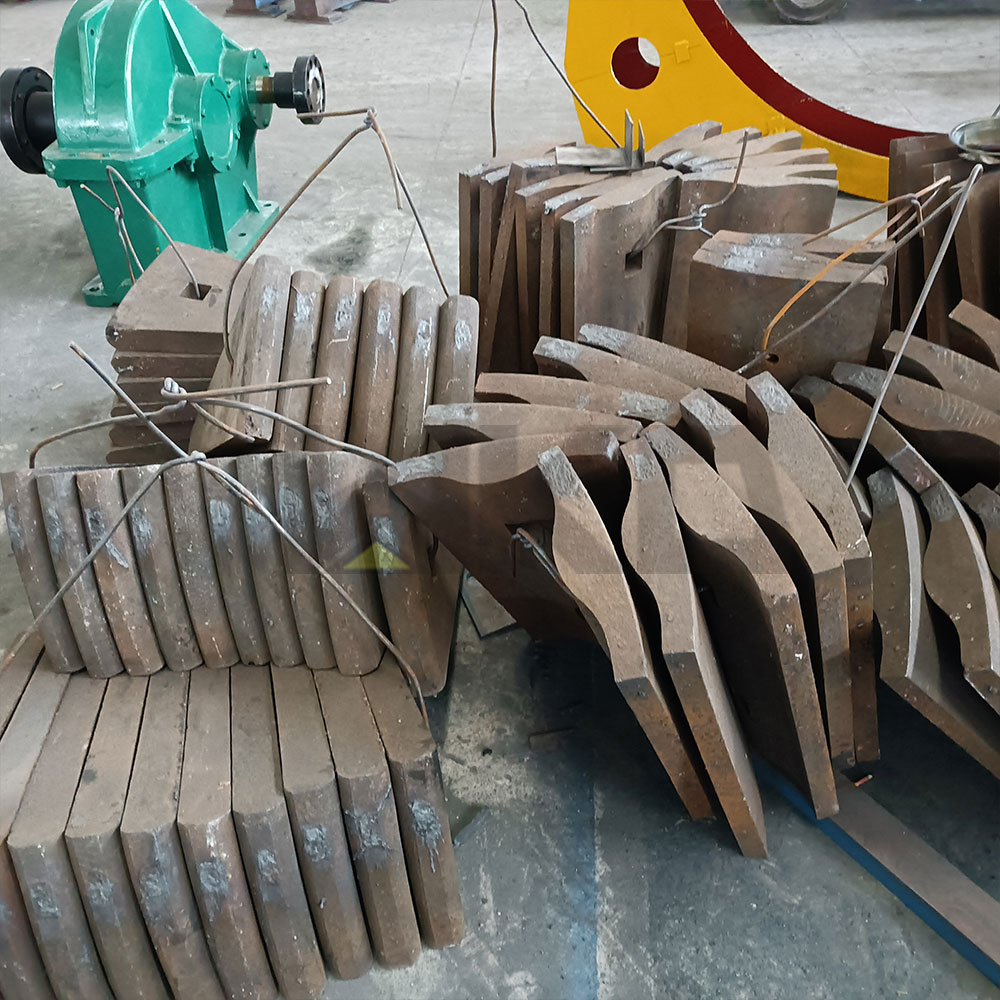

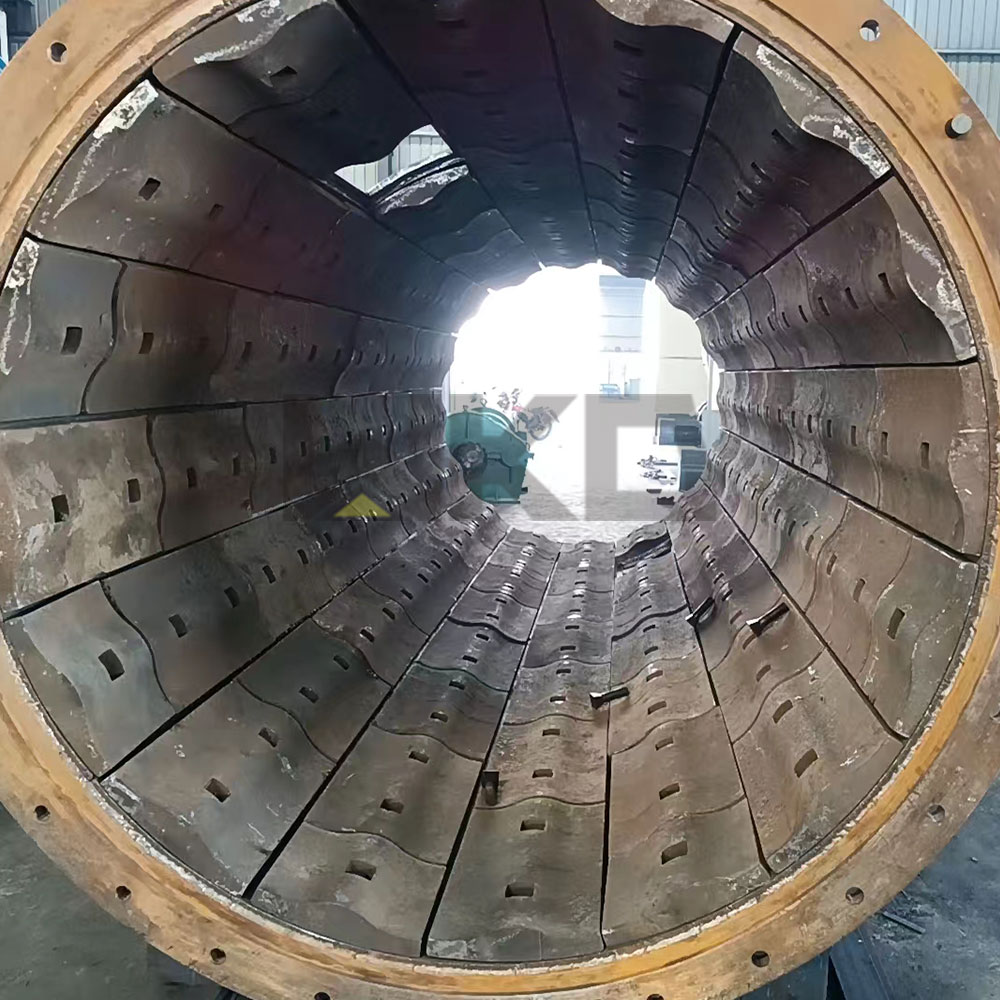

Energy-saving grate ball mill adopts groove-type circular lining plate that is instrumental in increasing contact areas of iron balls and ores, which enhances grinding action and ore lifting capacity and decreases energy consumption.
Energy-saving grate ball mill adopts whole milling house, which makes it easy for construction and installation.
Energy-saving grate ball mill has bigger discharge opening and huge processing capacity.
Energy-saving grate ball mill is equipped with oil-mist lubrication device which guarantees smooth operation of gears.

Parameters

Model	Drum Size(mm)	Speed(r/min)	Ball Weight(t)	Feed Size(mm)	Output Size(mm)	Capacity(t/h)	Power(kW)	Weight(t)
WKD0918	0.9*1.8	38.8	1.92	0-20	0.074-0.6	0.4-2.14	22	5.34
WKD1224	1.2*2.4	31	4.8	0-20	0.074-0.6	0.4-6.8	55	13.43
WKD1245	1.2*4.5	31	5.2	0-20	0.074-0.6	1.6-12	75	17.4
WKD1530	1.5*3	27.5	8.1	0-20	0.074-0.6	2.9-16.5	95	18.6
WKD1557	1.5*5.7	29.2	15	0-20	0.074-0.6	4-25	130	24.54
WKD1836	1.8*3.6	23.9	11	0-20	0.074-0.6	8-40	155	33
WKD2136	2.1*3.6	23.8	27	0-20	0.074-0.6	8-61	210	46.8
WKD2436	2.4*3.6	22	28	0-20	0.074-0.6	7-95	240	73
WKD2465	2.4*6.5	22	36	0-20	0.074-0.6	7-110	310	76
WKD2736	2.7*3.6	21.9	39	0-20	0.074-0.6	13-145	400	77
WKD2740	2.7*4.0	21.9	43	0-20	0.074-0.6	13-150	400	91
WKD3060	3*6	19	70	0-20	0.074-0.6	100-145	800	155
