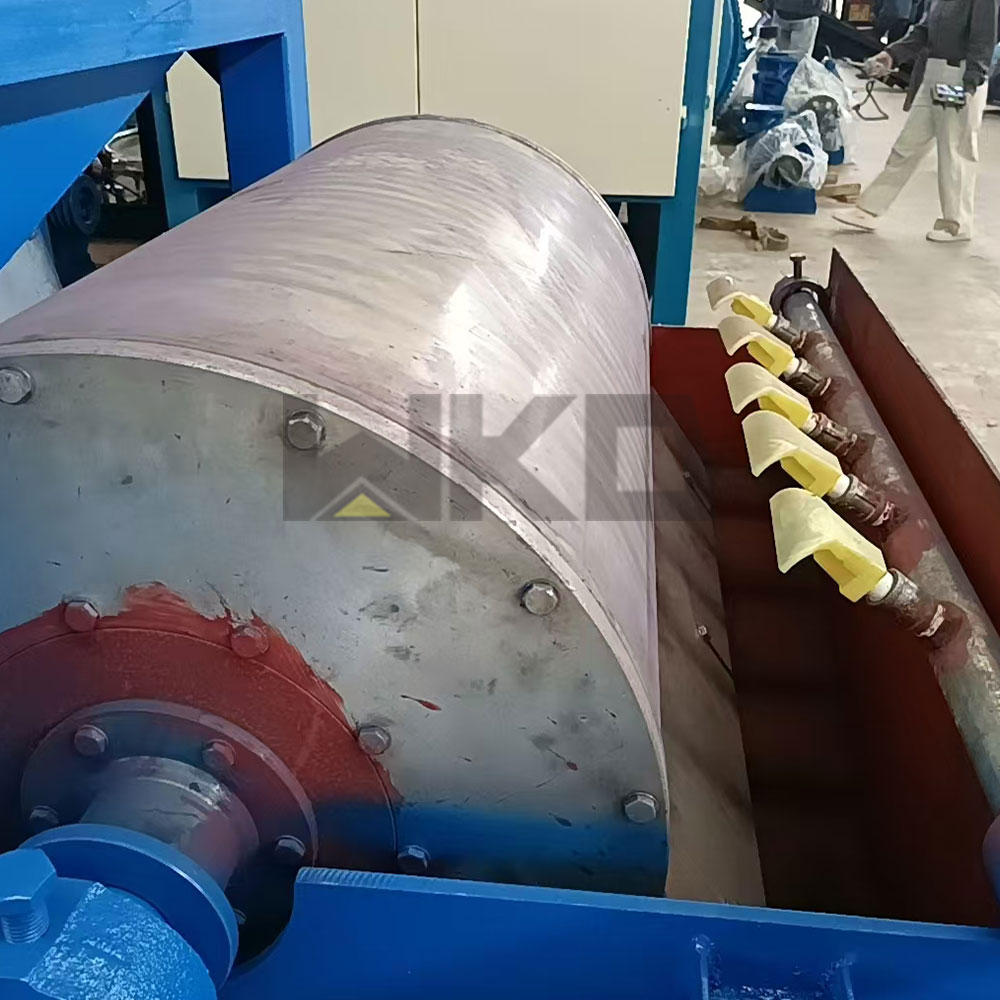

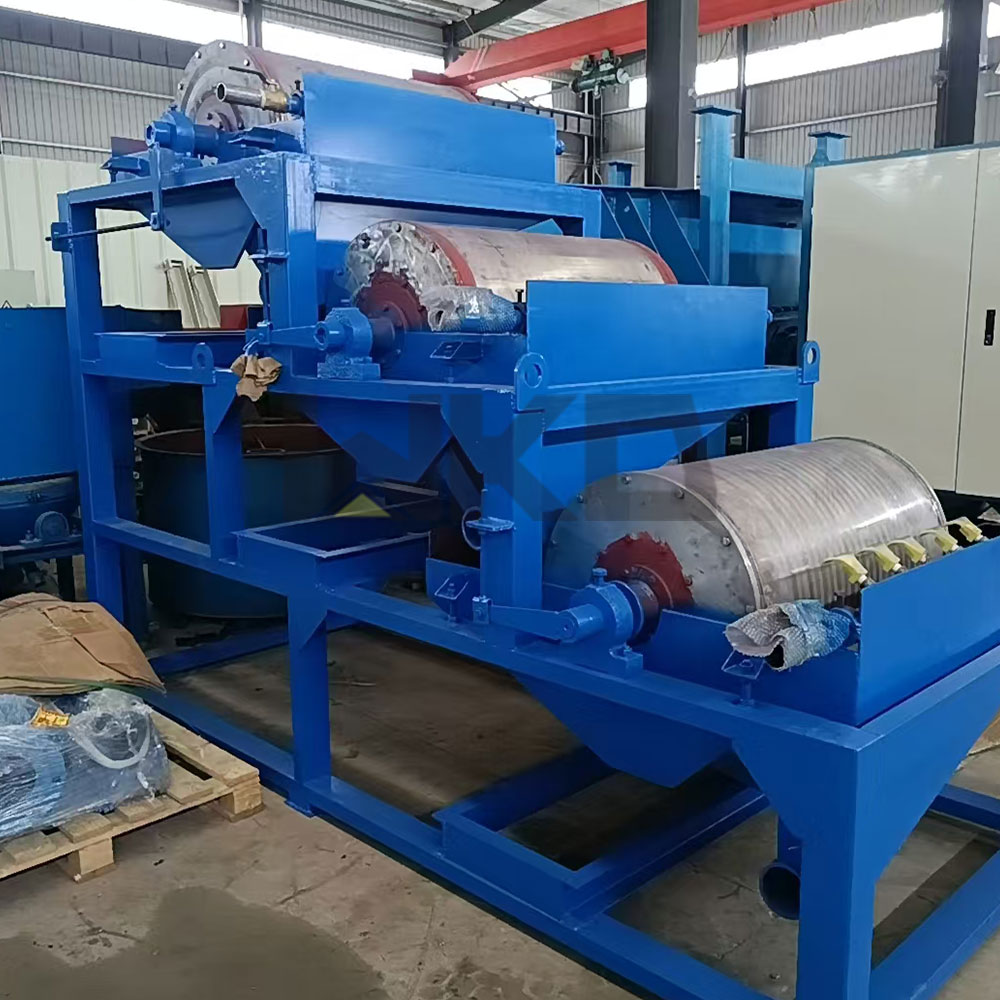

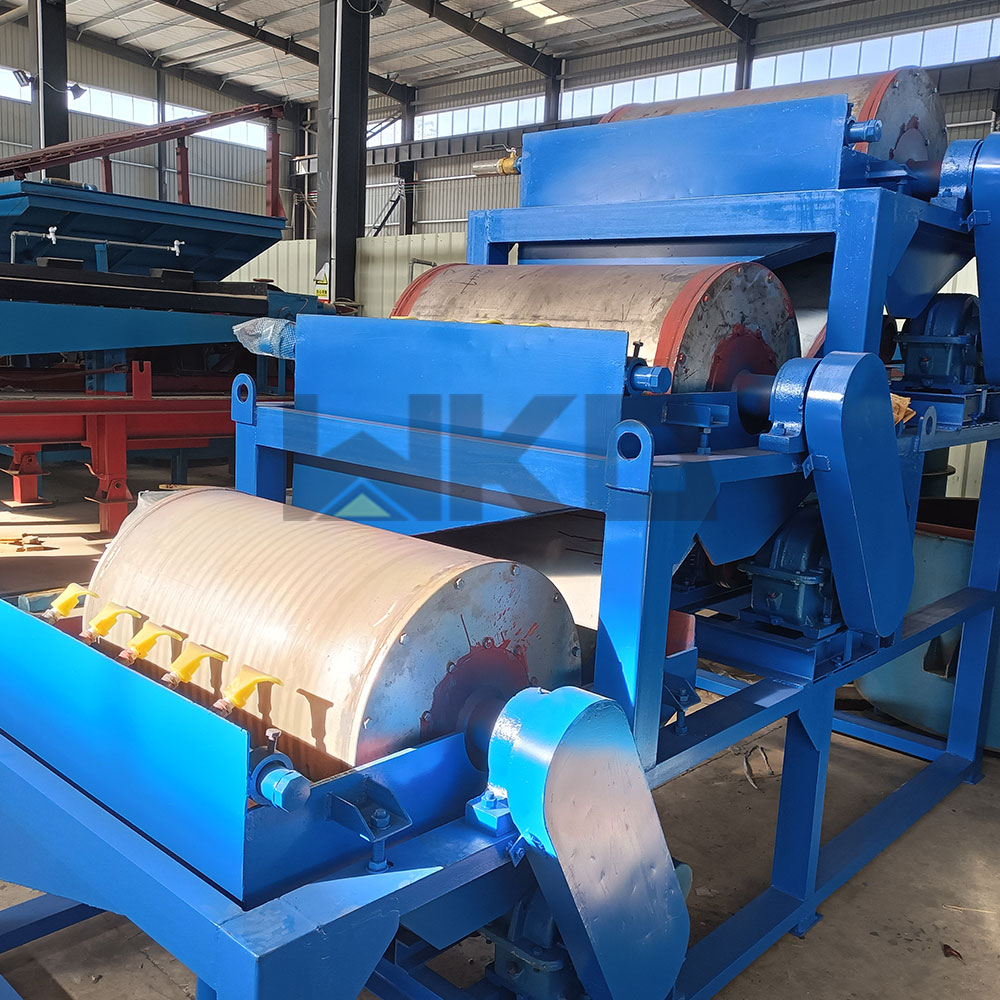

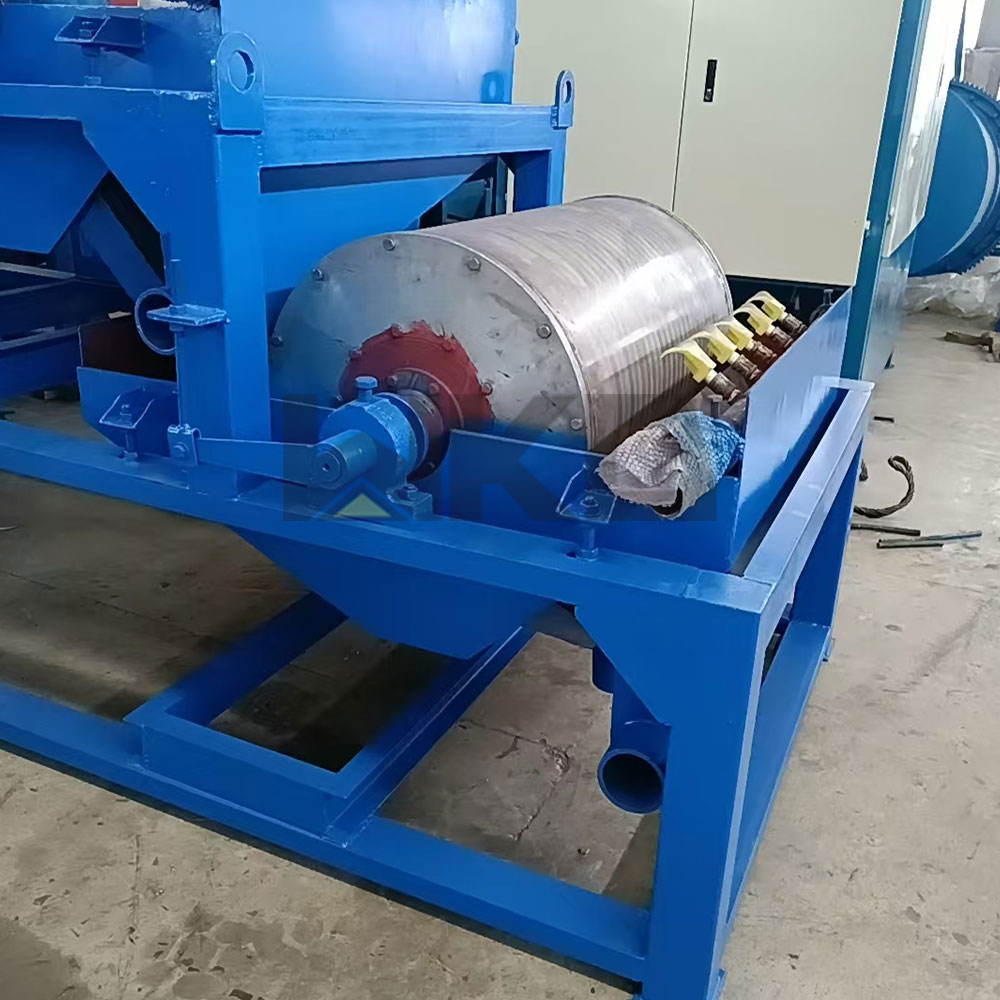

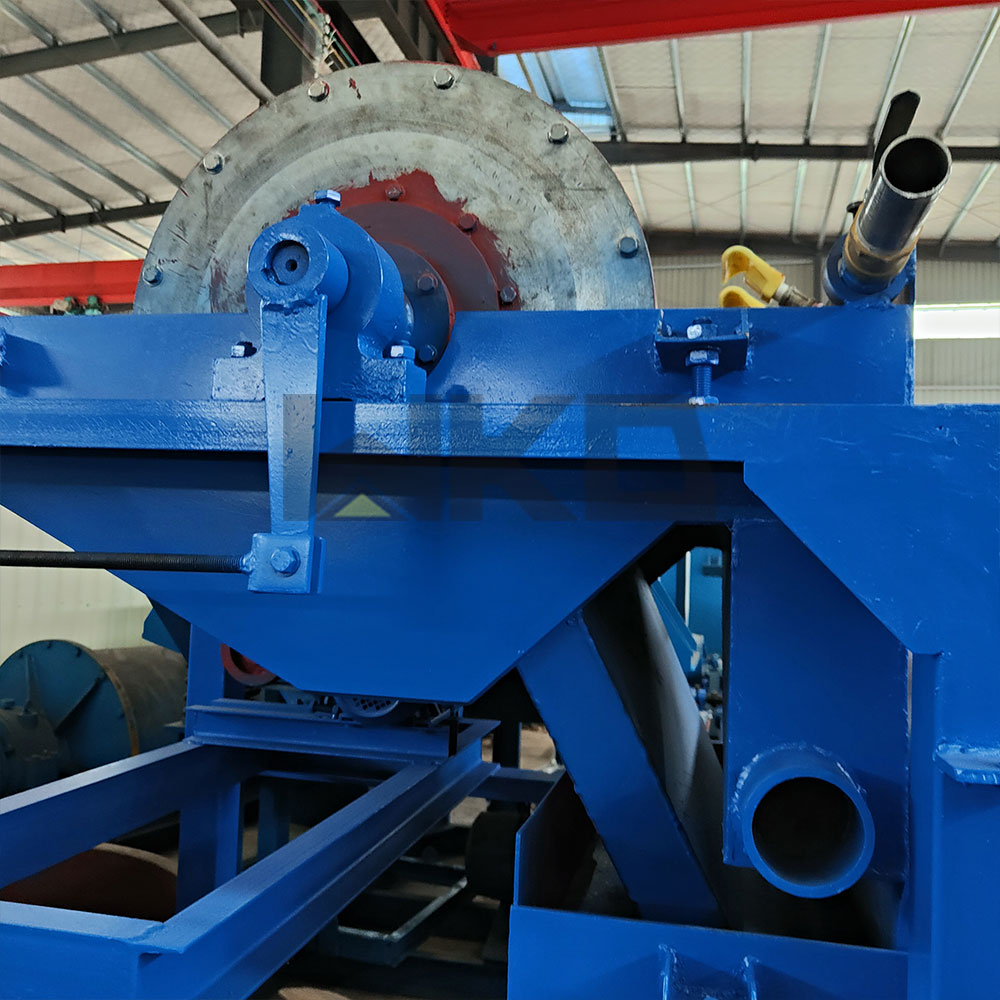

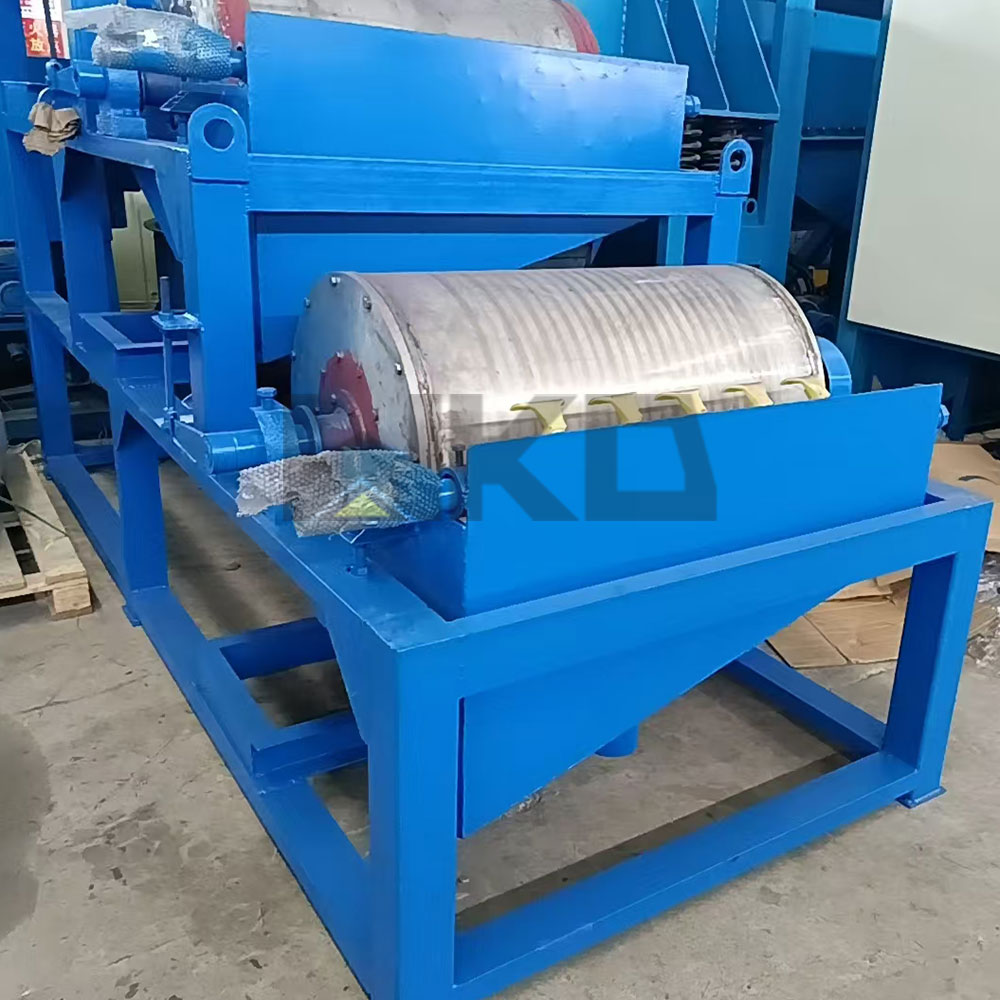

Three Roller Wet Magnetic Separator

Wet Permanent High Intensity Roller Magnetic Separator

Our factory produces one roller, two rollers, three rollers, four rollers wet and dry type high intensity magnetic separator and low intensity magnetic separator, magnetic field intensity from 800 gauss to 20000 gauss. We've high intensity filed separator and low intensity for weak magnetic minerals and strong magnetic ores,non magnetic ores. Such as magnetic iron ore,Tin ore, ilmenite, titanium ore, hematile, manganese, cobalt, cassiterite, coltan,tantalum, niobium, zircon sand, beach black sands, Monazite ore, Rutile ore,silica purify sand and so on.

Description

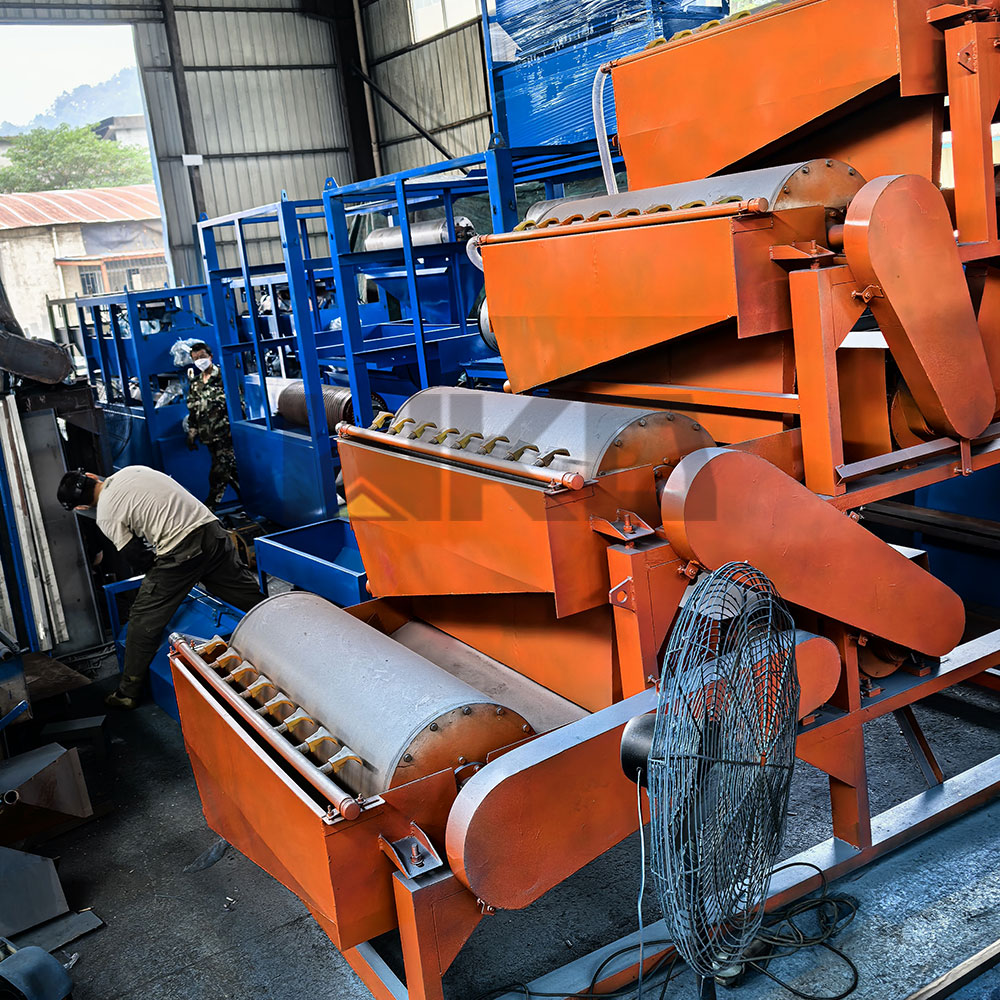

Four rollers high intensity dry type magnetic separator

Capacity:2-5 tons per hour;

Feeder hopper on the top of the machine;

Four drums/rollers:

First drum size: diameter 440 mm* length 1100 mm, magnetic field intensity:1000 gauss-1500 gauss;

Second drum size:diameter 440 mm* length 1100 mm, magnetic field intensity:5000 gauss-7000 gauss;

Third drum size:diameter 440 mm* length 1100 mm, magnetic field intensity:8000 gauss-10000 gauss;

Fourth roller size:diameter 220 mm* length 1100 mm, magnetic field intensity:15000 gauss;

Material: steel for the whole machine frame;

Frequency conversion motors;

AC Inverter Controller to adjust the speed variation of each rollers/drums;

Electric control pannel box to control the machine working;

Usage: it is used for separate Garnet ore, Zircon ore, Magnetic iron ore, Ilmenite ore, Monazite ore, Rutile ore, silica sand, weak magnetic ore and so on.

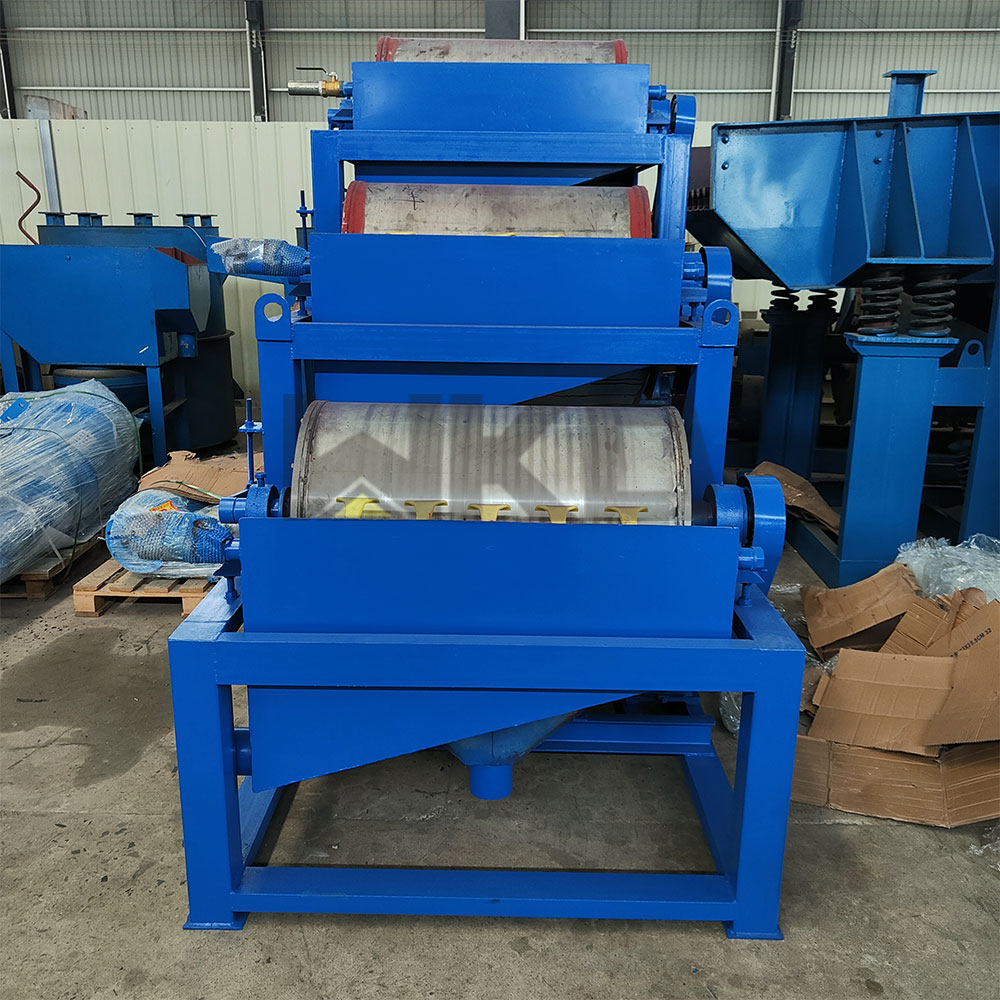

Three rollers high intensity dry type magnetic separator

Capacity:1-2 tons per hour;

Feeder hopper on the top of the machine;

Three rollers:

First roller size: diameter 160 mm* length 1200 mm, magnetic field intensity:1200 gauss;

Second roller size:diameter 390 mm* length 1200 mm, magnetic field intensity:8000 gauss;

Third roller size:diameter 160 mm* length 1200 mm, magnetic field intensity:13000 gauss-15000 gauss;

Material: steel for the whole machine frame;

Adjust speed motors;

Electromagnetic speed regulation to adjust the roller speed;

Dimension:1700*1500*2280mm;

Two rollers high intensity magnetic separator

Capacity:1-2 tons per hour;

Feeder hopper on the top of the machine;

Two rollers:

First roller size: diameter 160 mm* length 1200 mm, magnetic field intensity:13000 gauss;

Second roller size:diameter 160 mm* length 1200 mm, magnetic field intensity:13000 gauss;

Material: steel for the whole machine frame;

Adjust speed motors;

Electromagnetic speed regulation to adjust the roller speed;

Dimension:1700*1400*2250mm;

One roller low&high intensity magnetic separator

Capacity:10-20 tons per hour;

Feeder hopper on the top of the machine;

One roller:

Roller size: diameter 400mm* length 1800mm, magnetic field intensity:1200 gauss;

Material: steel for the whole machine frame;

Adjust speed motors;

Electromagnetic speed regulation to adjust the roller speed;
