Jaw Crusher

Jaw crusher is widely used in various industries, such as mining, road and railway construction, building construction, water conservation and chemical industry etc. It could crush kinds of minerals and rocks with compression strength less than 320MPa,such as quartz, granite, basalt, limestone, river stone, sandstone, shale, iron ore, copper ore, gold ore etc. Jaw crusher is a kind of stone crushing machine which is widely used as primary or secondary crusher.

jaw crusher (185).jpg

Advantage of Jaw Crusher

①simple structure and low price

②convenient for transmission.

③no need to worry about power off.

④ Discharging size of jaw crusher can be adjusted to meet the requirements of different users;

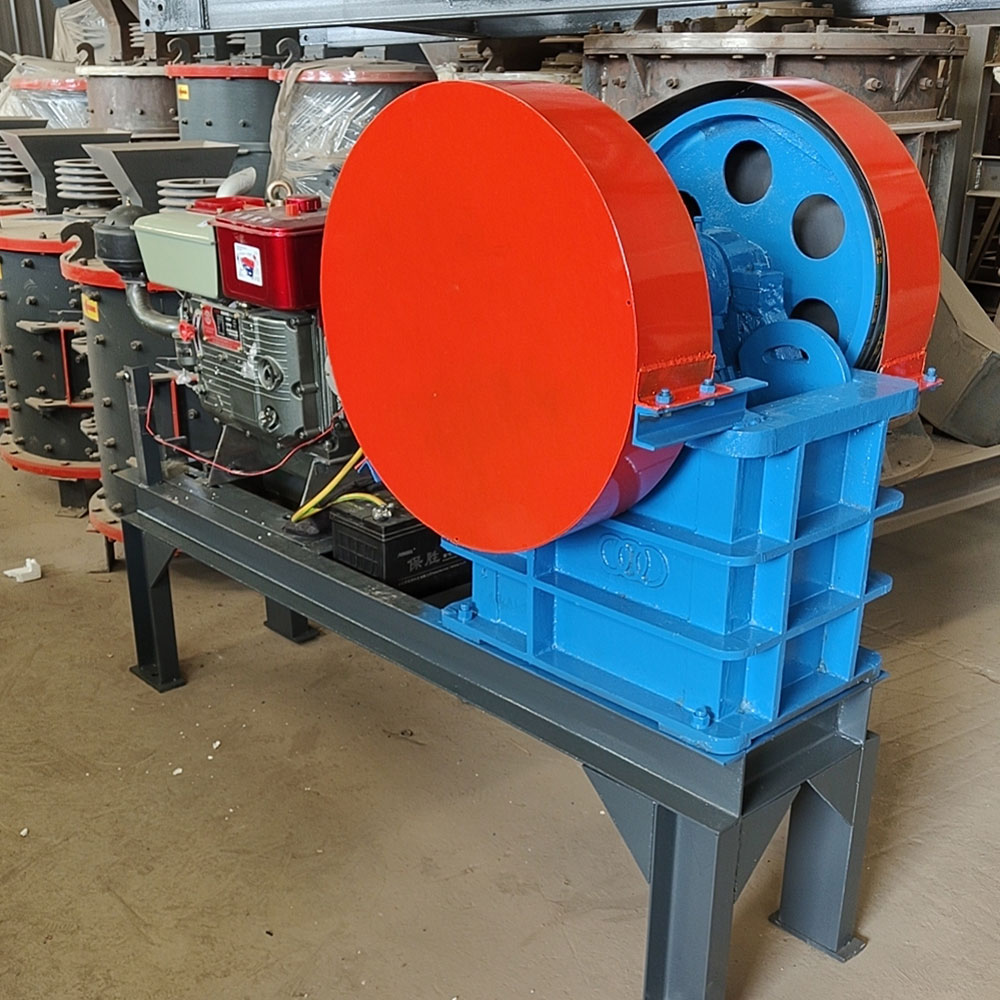

⑤Diesel engine jaw crusher is easy to install, operate and maintain.

⑥Every feature has been carefully designed to provide superior quality and performance.

Diesel Jaw Crusher (13).jpg

Working Principle of Jaw Crusher

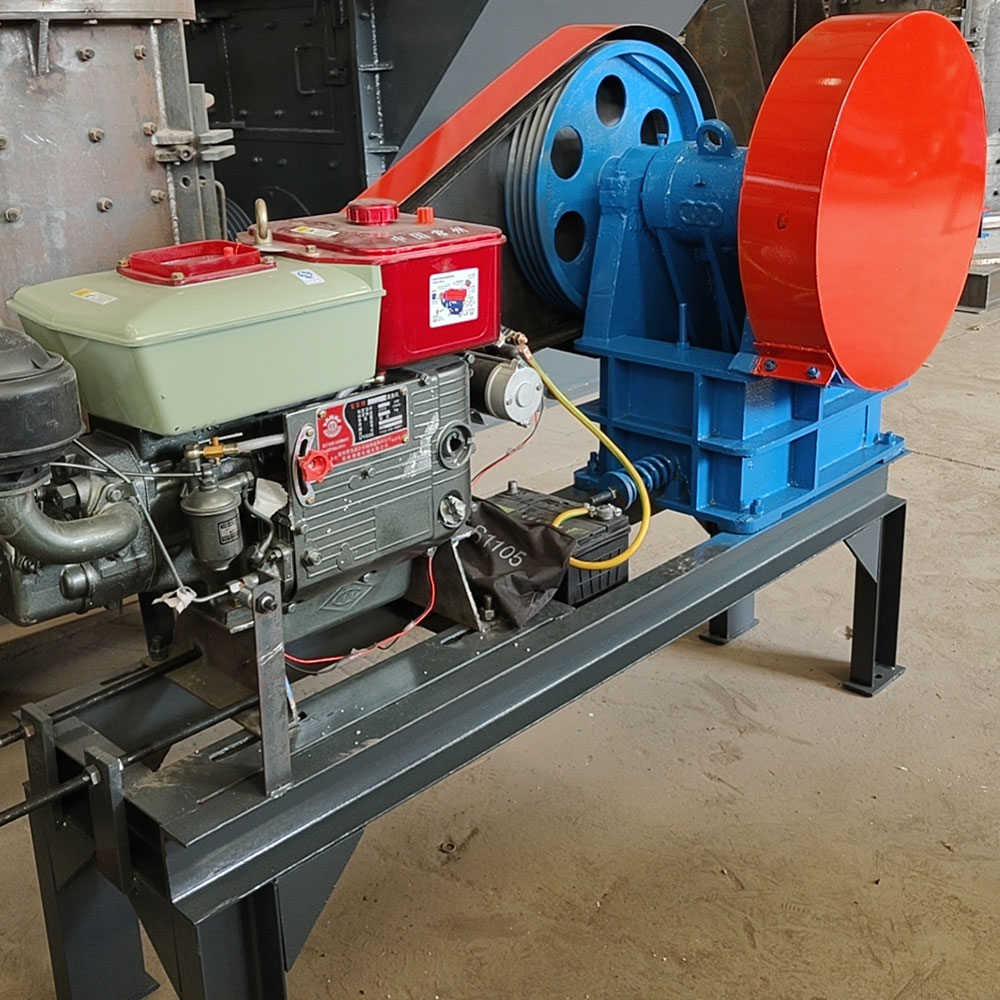

This kind of Jaw Crusher adopts diesel engine motor as its power. When the small diesel engine crusher working, the diesel engine transmits power through belt and belt pulley, drives the swing jaw surround the eccentric shaft do periodic action. The angle between toggle plate and swing jaw increases when swing jaw moves up, which makes the moving jaw get closes to the fixed jaw. At the same time the material is squeezed, rubbing, grinding and other multiple broken. The angle of Jaw Crusher between toggle plate and swing jaw decreases when swing jaw moves down, the moving jaw of Jaw Crusher moves away from fixed jaw by the pulling of rod and spring, the products after crushing will be discharged from the outlet of Jaw Crusher.

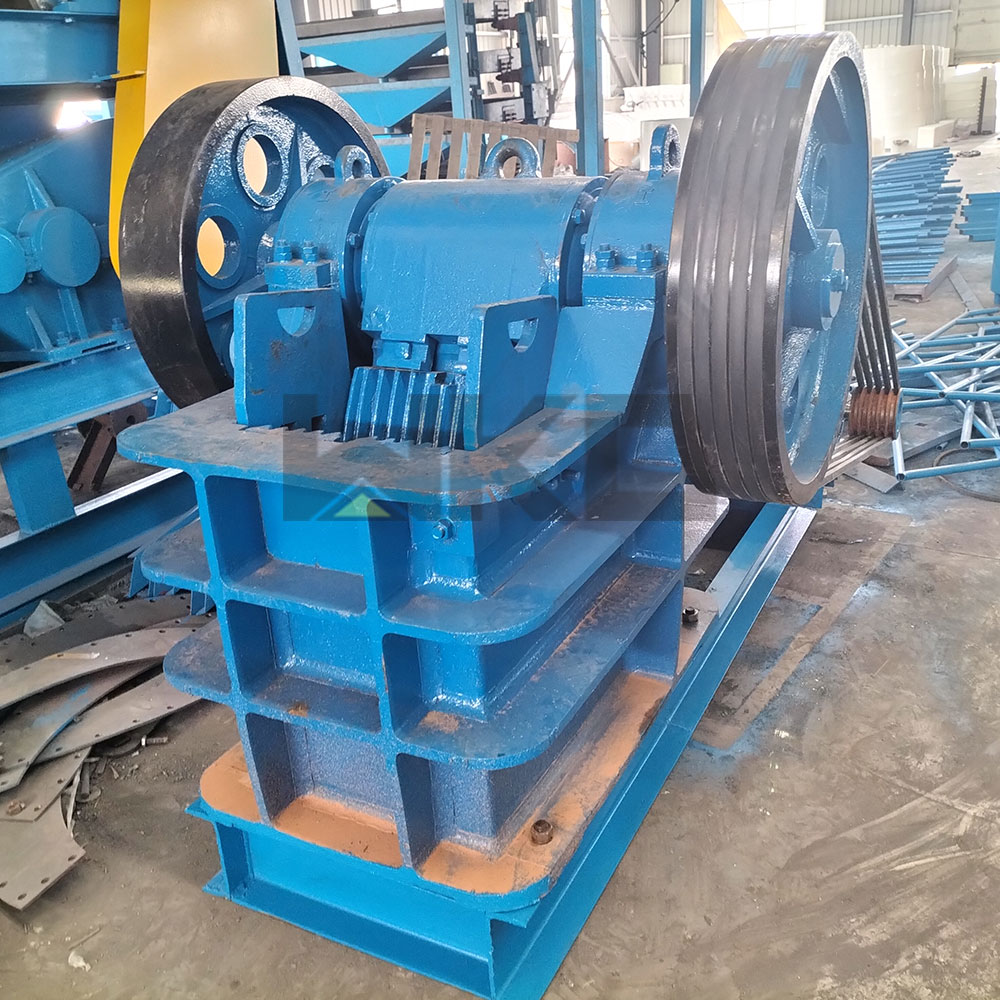

jaw crusher (9).jpg

Parameters of Jaw Crusher

Model	Inlet Size(mm)	Max Feeding Size (mm)	Capacity(t/h)	Adjustable range of discharge (mm)	Motor Power (kW)	Eccentric Shaft Rotation Speed (r/min)	Weight (t)
PE150*250	150*250	125	1-3	10-40	5.5	250	0.6
PE200*300	200*300	180	2-6	20-60	7.5	310	1.03
PE250*400	250*400	210	5-20	20-60	15	300	2.8
PE400*600	400*600	340	16-65	40-100	30	275	6.5
PE500*750	500*750	425	45-100	50-100	55	275	10.1
PE600*900	600*900	500	50-120	65-160	55-75	250	15.5
PE750*1060	750*1060	630	52-180	80-140	110	250	28
PE800*1060	800*1060	650	85-185	100-200	110	250	30
PE870*1060	870*1060	670	120-210	200-600	110	250	30.5
PE900*1200	900*1200	750	140-260	95-165	110-132	200	50
PE1000*1200	1000*1200	850	160-300	195-265	110-132	200	51
PE1200*1500	1200*1500	1020	300-600	150-300	160	180	100.9
PE250*750	250*750	210	8-22	25-60	22	330	4.9
PE250*1000	250*1000	210	16-52	25-60	30-37	330	6.5
PE250*1200	250*1200	210	20-60	25-60	37	330	7.7
PE300*1300	300*1300	210	20-90	20-90	55	330	11
