High Tension Electrostatic Separator

Electrostatic Separator machine also known as electric separator is used for recycling of various minerals, waste metals and non-metal materials with conductivity difference such as selected white tungsten, tinstone, zirconite, andalusite, rutile

INQUIRY

High Tension Electrostatic Separator

Description

Electrostatic Separator Equipment is one of the major equipment in Electrostatic Separation Process mineral separation. Here are our hot models: DXJφ220x1500, DXJφ270x1500, DXJφ320x1500, DXJφ220x2000（Can be 2 rollers or 4 rollers, 2 rollers mostly used for lab, 4 ps roller most used for industrial.）

It is widely used in sorting titanium, zirconium, rutile, monazite, iron, tungsten, tantalum, niobium, tin and other precious minerals. It can separate material which's particle size is from 0.1 to 2 mm and surface temperature is less than 1% of itself. It often works well with the single-disc magnetic separator and permanent magnetic sorting machine in the process of sorting ilmenite, zircon ore and other minerals.

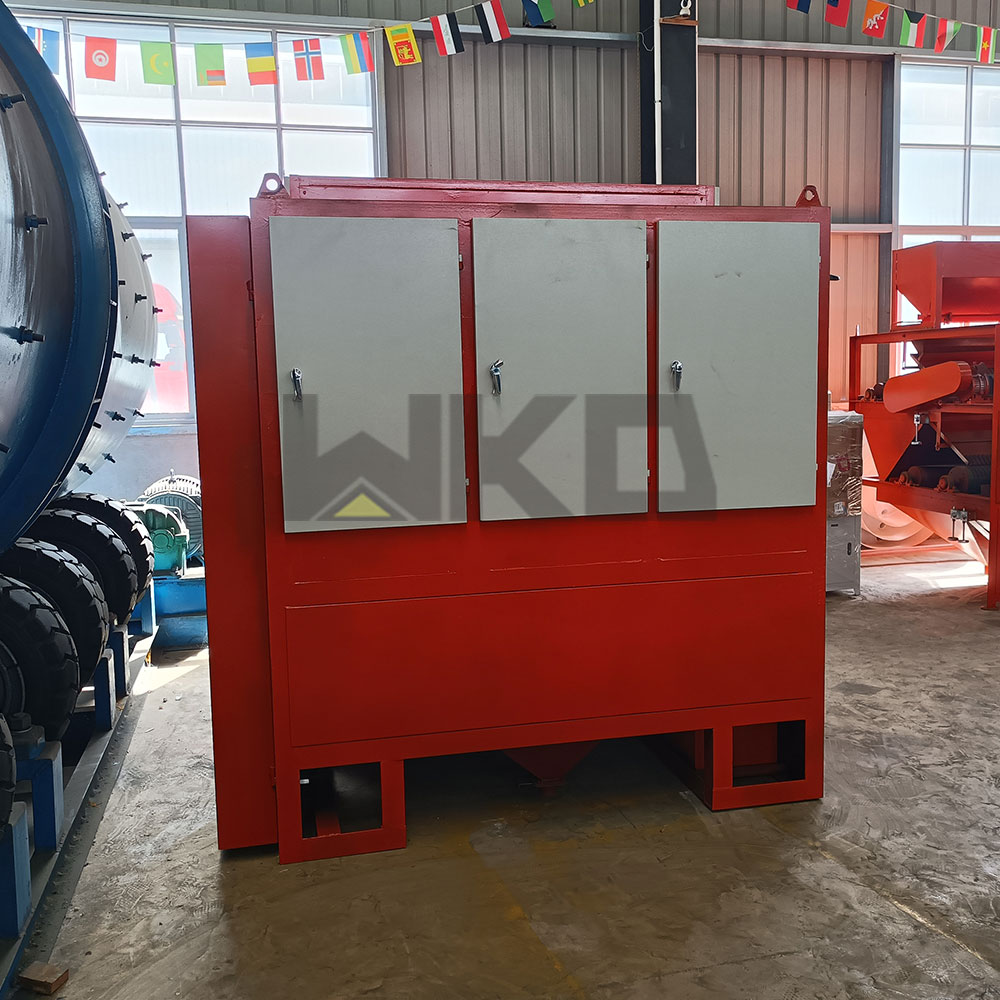

electric sepatator (4).jpg

Working Principle

Electrical Separation is to electrify wire electrodes with very small diameter with high-voltage direct current to produce corona electric field in the space between corona electrode and grounding electrode. The entire space close to the grounding electrode carries negative charge (positive grounding) at the time and the mineral aggregates have the same chance to obtain electric s while passing through the corona electric field. However, due to different conductivity of minerals, they receive different electricity in the electric field and carry away different electric charges so that ore sands fall along different tracks in the electric field. In this way, good separation conditions are created for minerals with good, medium and no conductivity.

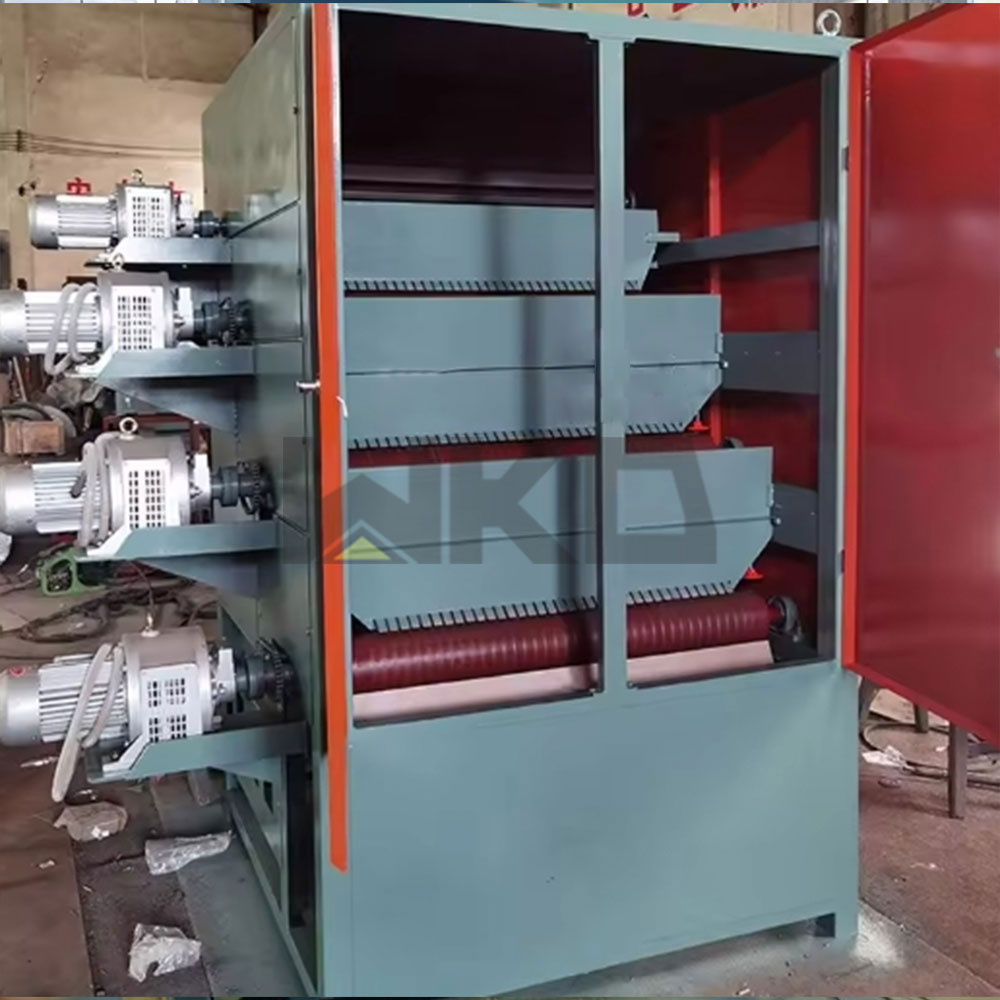

Electric Separator (38).jpg

Parameters

Model	DJ∮220X1500	DJ∮270X1500	DJ∮320X1500	DJ∮220X2000
Voltage	60000V
Roller Number	2roller, 3roller, 4roller, 6roller option
Feeding Size	20-280mesh
Capacity	800-2000kg/h
Rotating Motor	1.1kW
Material Heater	2 rollers, 3 rollers high temperature 12 kW,low temperature 4 kW 4 rollers,6 rollers high temperature 22 kW,low temperature 8 kW
Material Divider Drum Heater	1kW
Direct Current High Tension Generator	60kW/50mA
Power Supply	380V
Electri Control Cabinet Size	12006001250mm
Power Consumption	2 rollers 7.5 kW,3 rollers 9 kW, 4 rollers 16.5 kW,6 rollers 19 kW
Appox Weight	2 rollers 1500 kgs, 3 rollers 2500 kgs, 4 rollers 2800 kgs,6 rollers 3400 kgs
