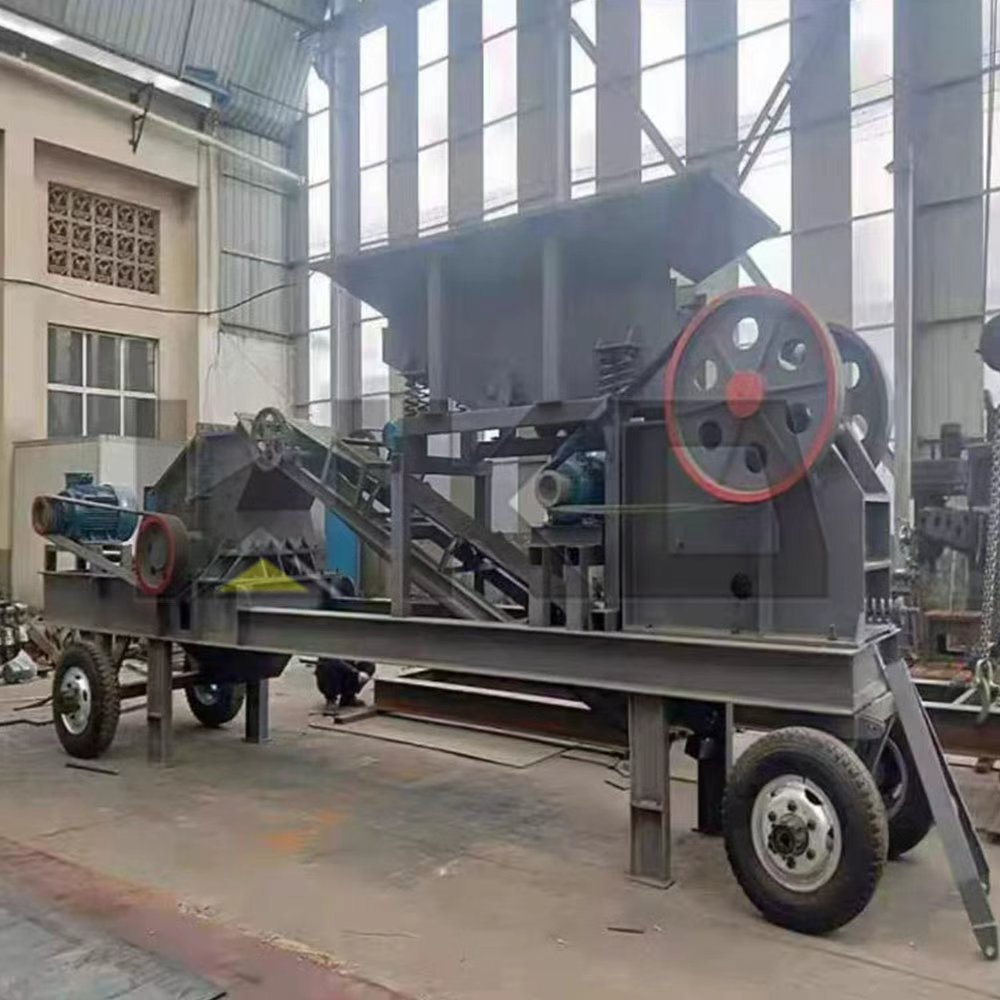

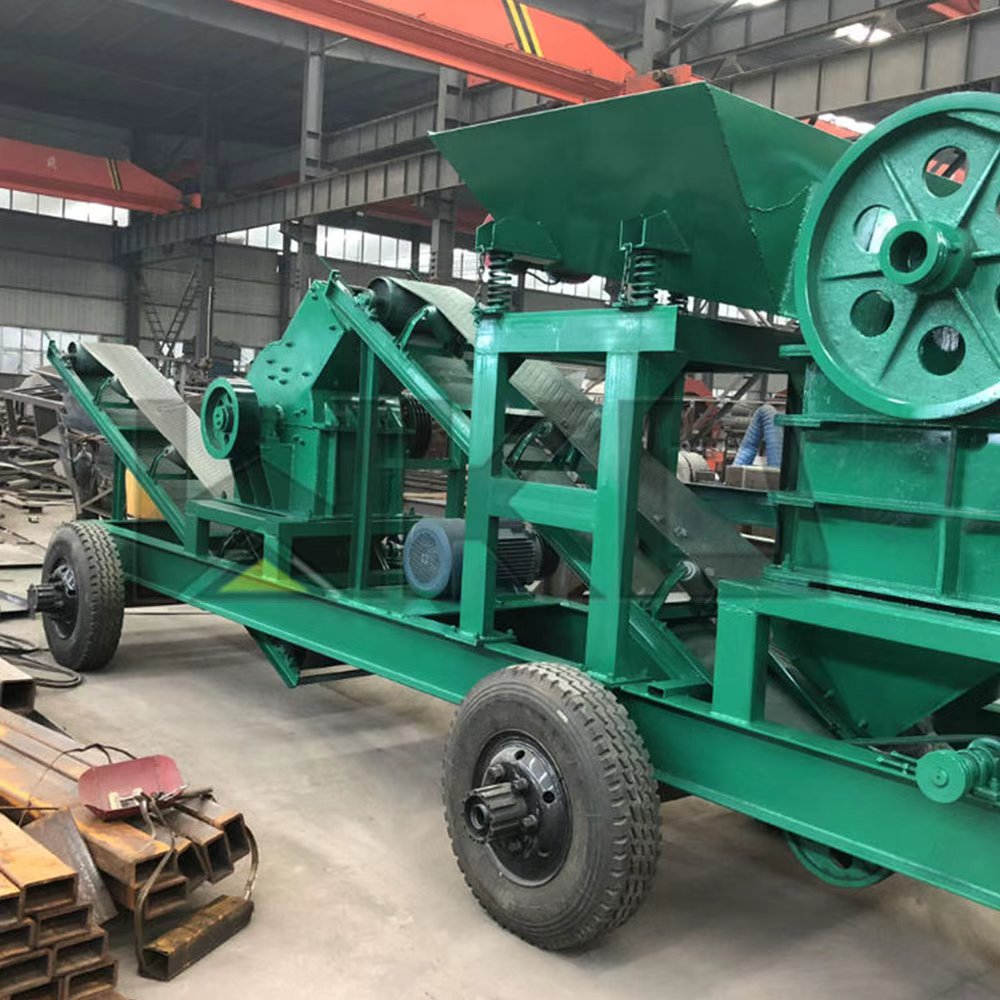

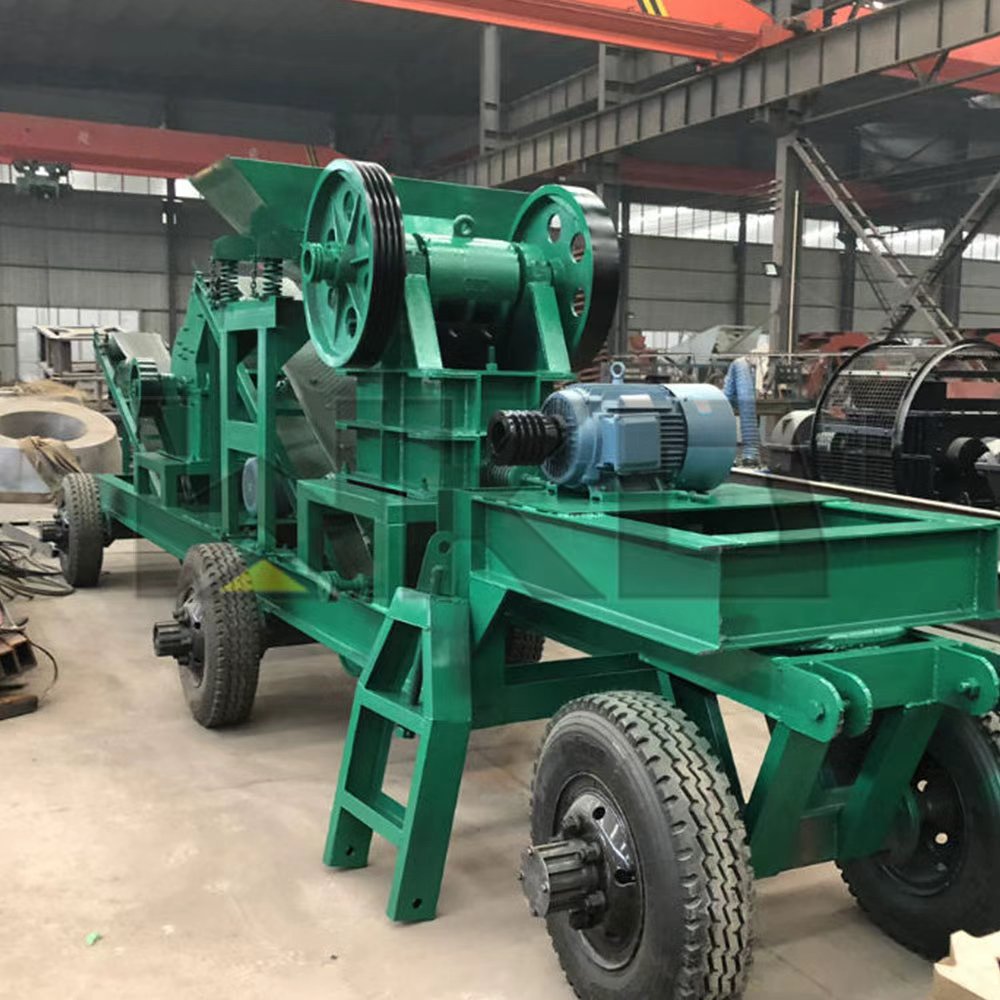

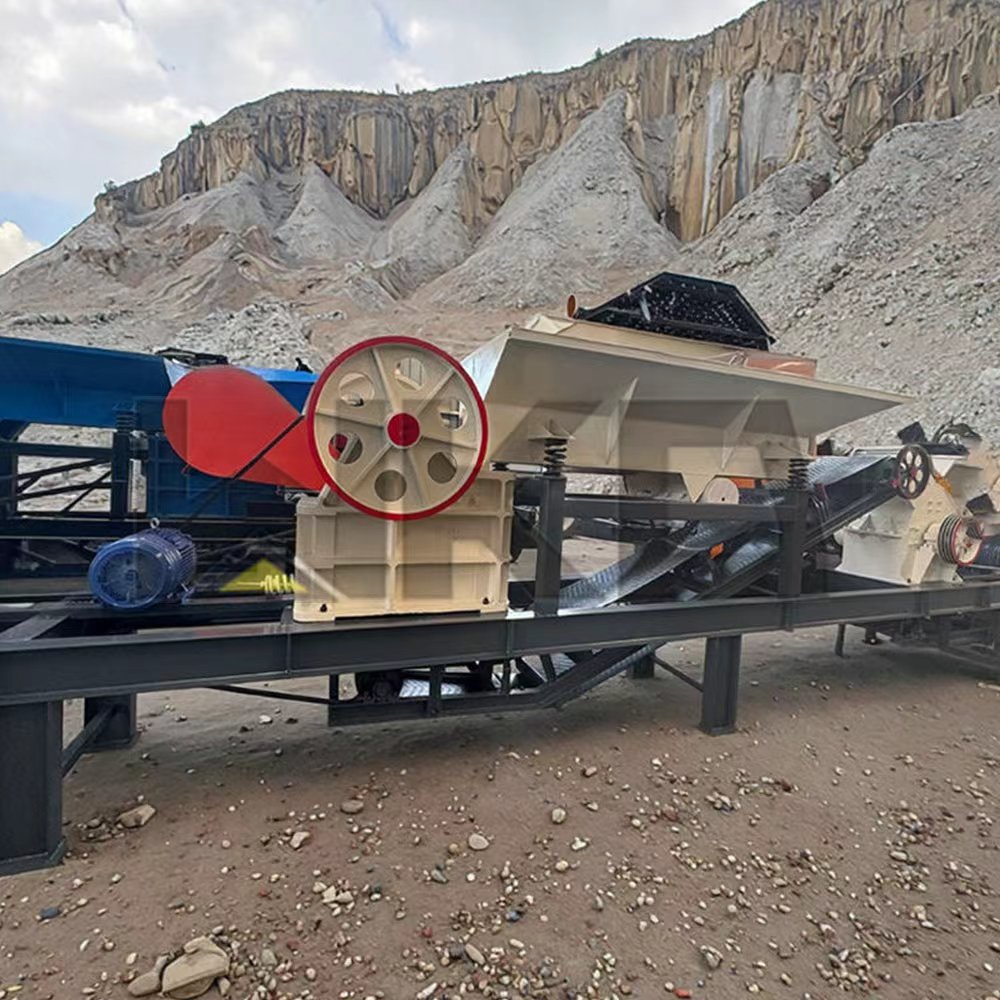

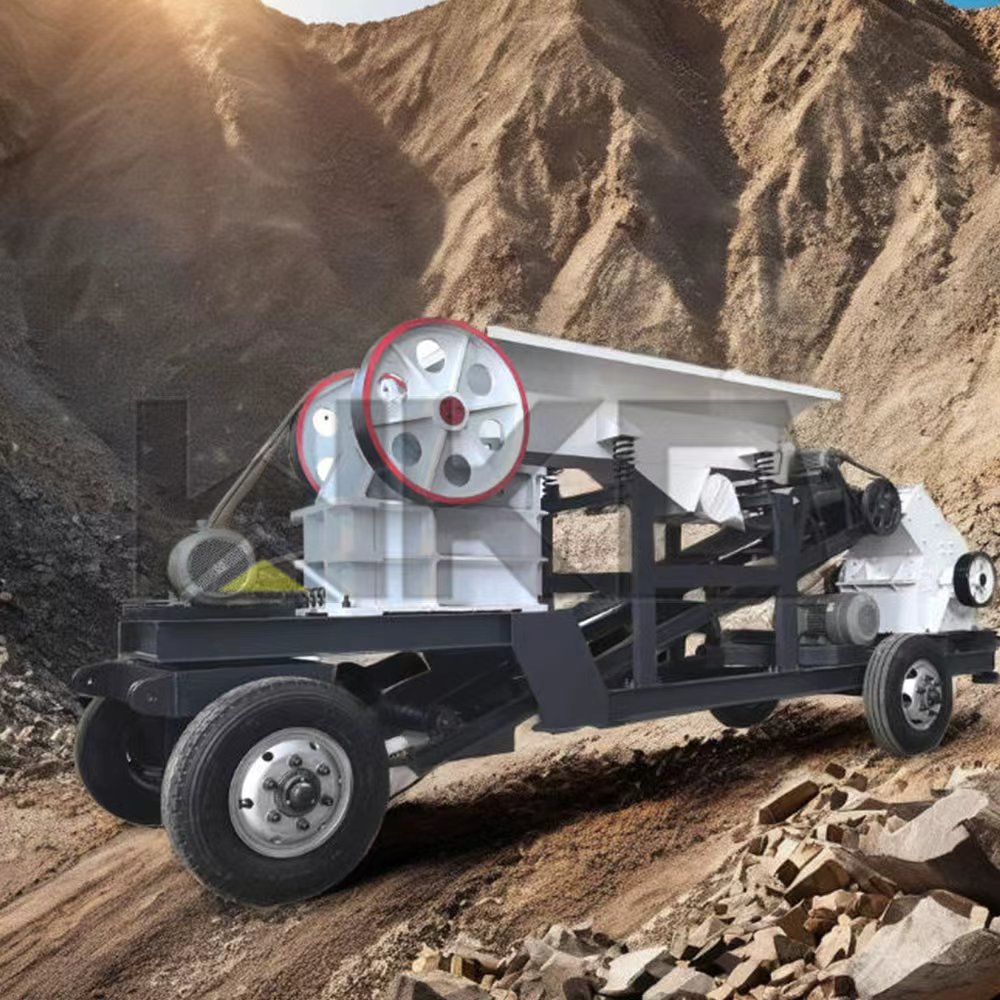

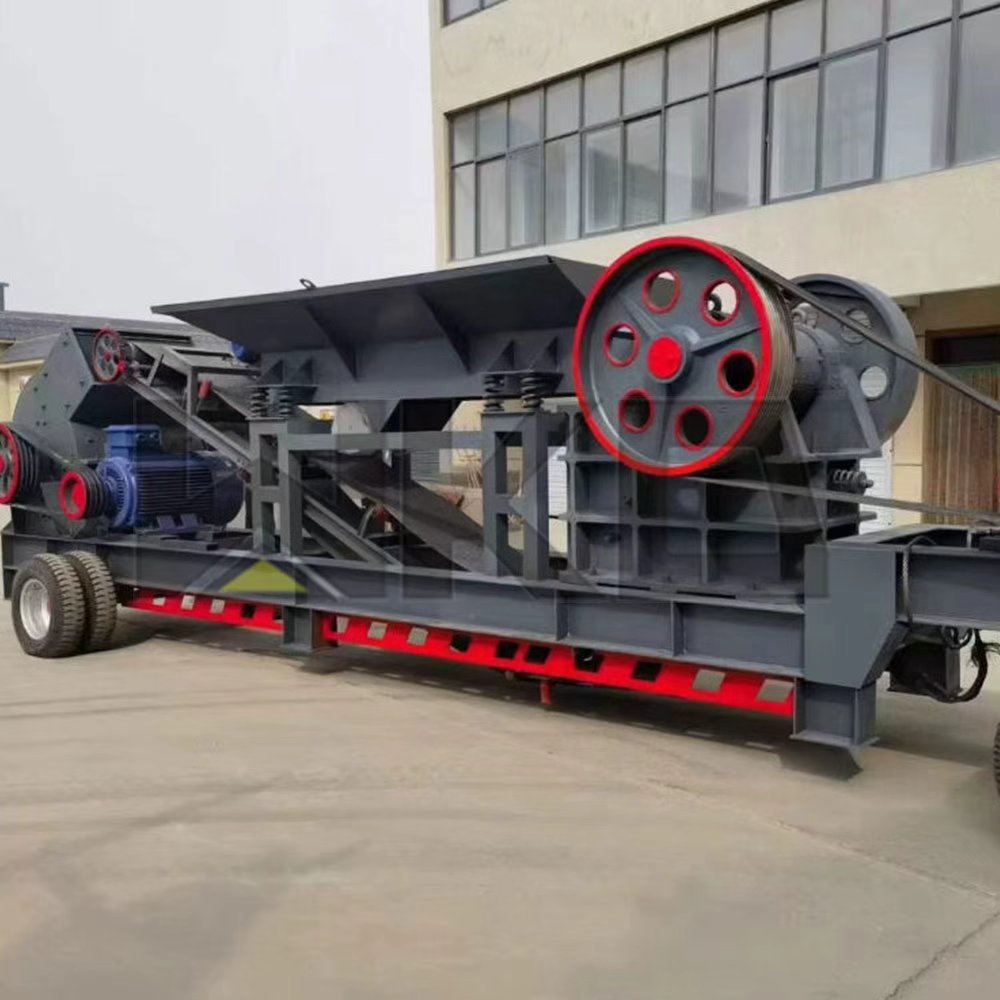

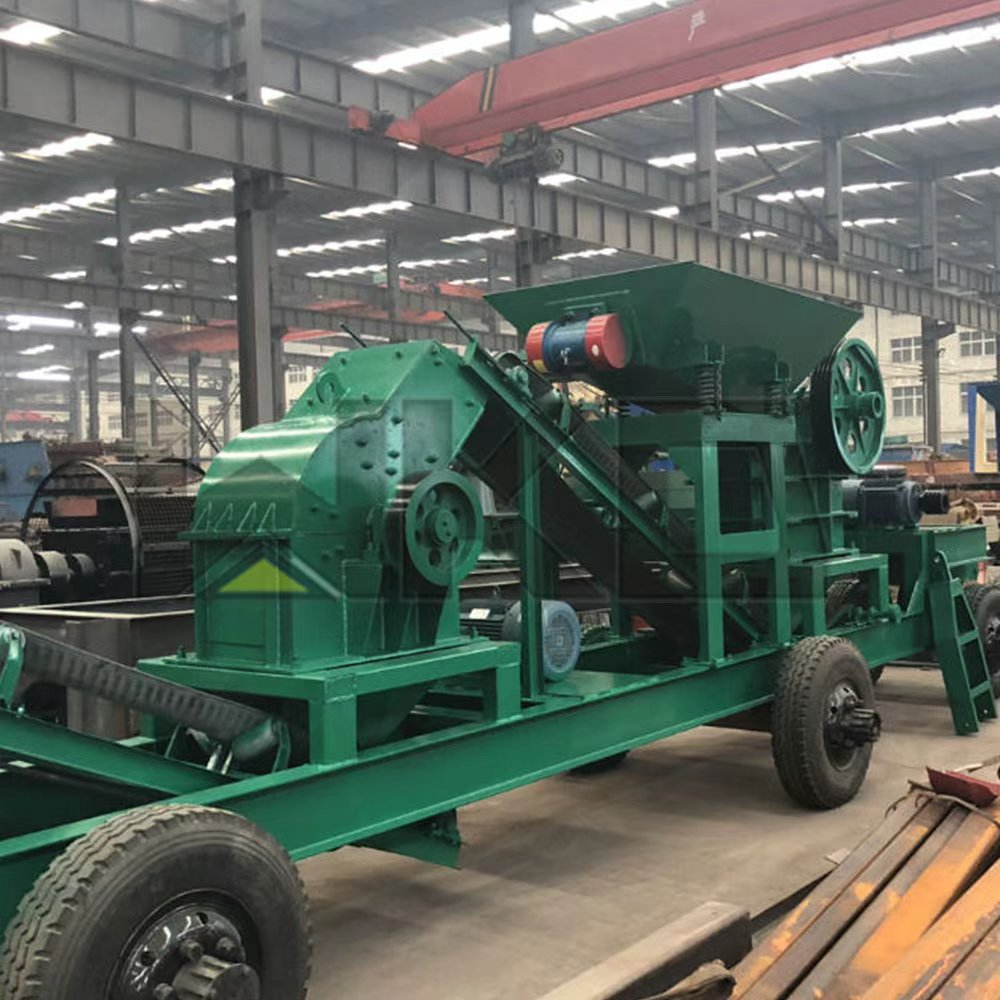

Mobile Crushing and Sand Making Machine with Conveyor

Description

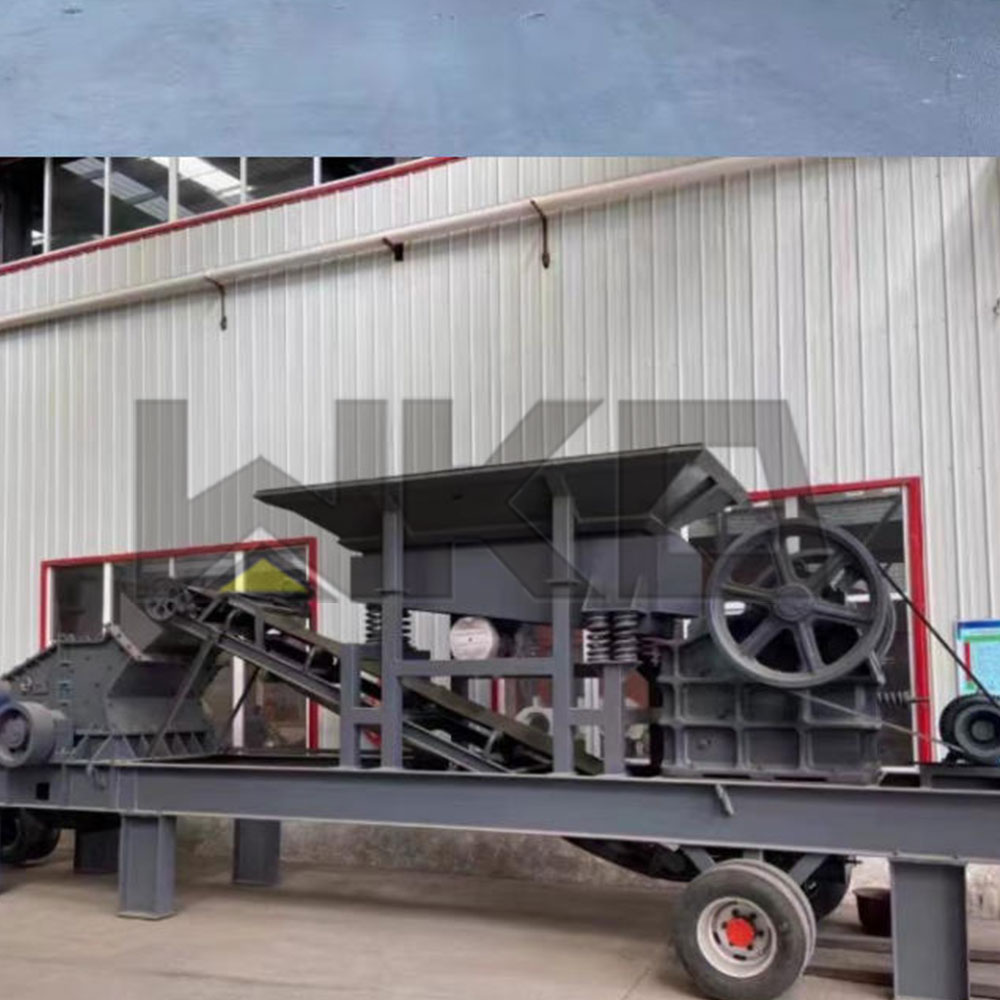

Mobile jaw crusher is a kind of crusher that can directly crush large size materials into very fine particles. Jaw crusher is suitable for crushing medium-hard or brittle materials with hardness not more than 300Mpa and 15% moisturemedium hardness. as coal cement gypsum alumen brick tile limestone, slag, coke, and other materials in crushing and fine crushing operations.

hammer crusher (2).jpg

First Step

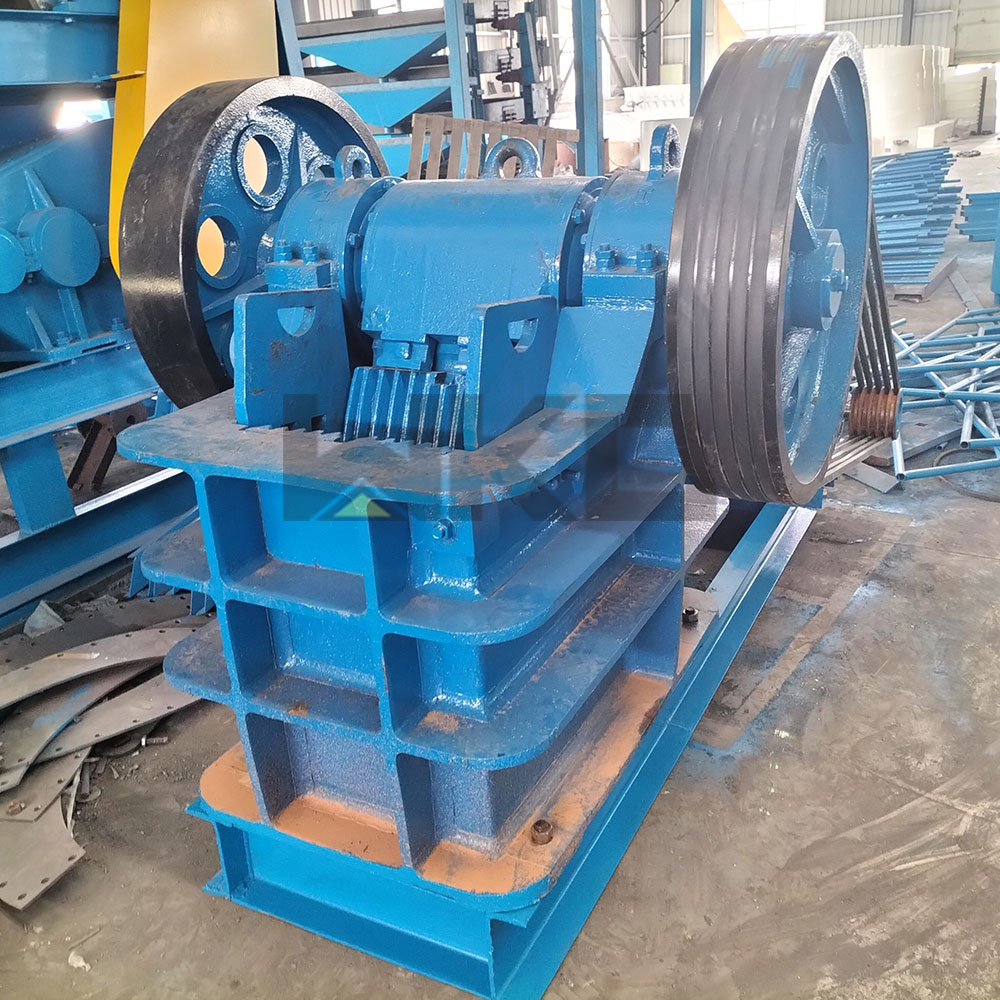

The raw material enter s the jaw crusher from feeder for preliminary crushing

jaw crusher (9).jpg

The Second Step

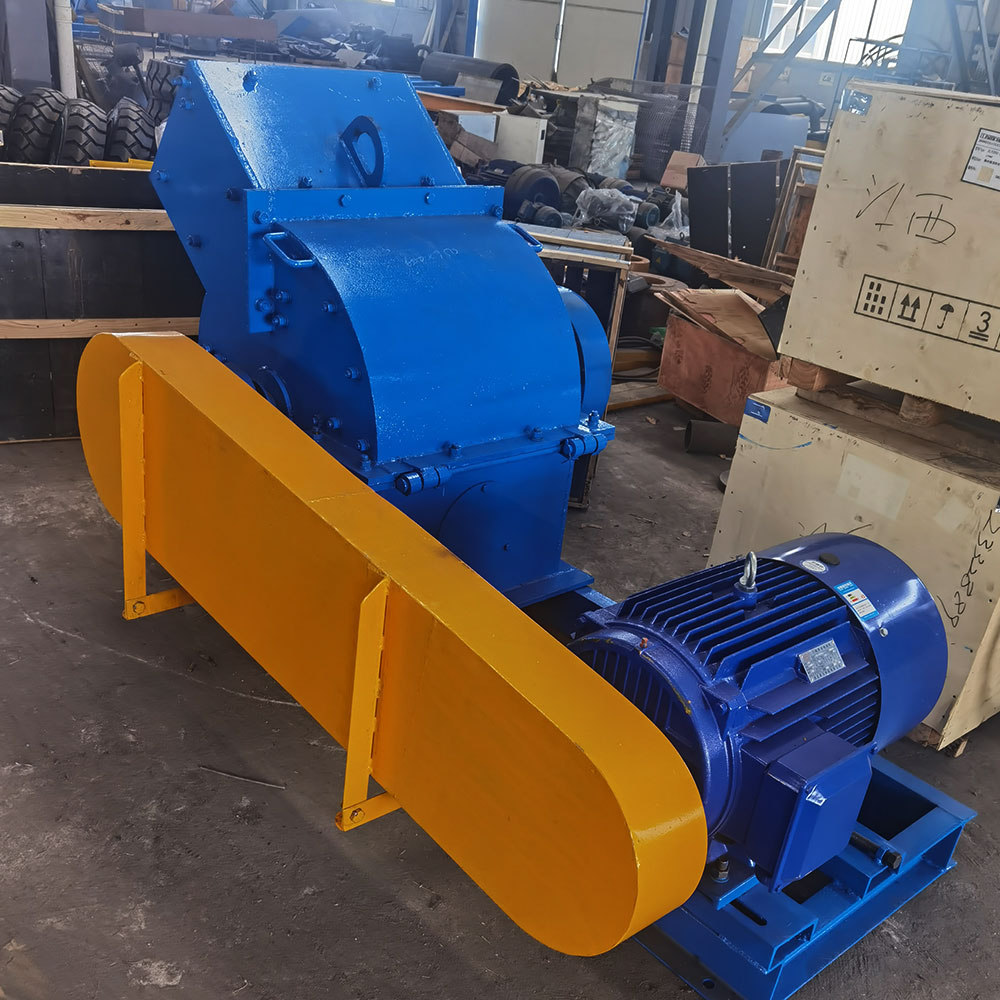

The preliminary crushed stone is fed into the hammer sand making machine by the conveyor belt for sand making (the grain size of sand making can be adjusted)

hammer crusher (61).jpg

The Third Step
The final made sand is output by the conveyor belt at the bottom of the hammer crusher, completing the whole production process from stone to sand.

Technical Parameters

Model	Feeding size(mm)	Max feeding size (mm)	Discharging Range size(mm)	Capacity (t/h)	Motor power (kw)	Weight (t)	Overall dimension (LxWxH)(mm)
PE-250*400	250*400	210	20-80	5-20	15	2.8	1450x1315x1296
PE-400*600	400*600	340	40-100	16-60	30	6.65	1565x1732x1586
PE-500*750	500*750	425	50-100	40-110	55	11.73	1890x1916x1870
PE-600*900	600*900	500	65-180	80-180	55-75	16.13	2305x1840x2298
PE-750*1060	750*1060	630	80-180	110-320	90-110	28	2450x2472x2840
PE-800*1060	800*1060	680	100-200	140-340	90-110	30	2610x2556x2800
PE-870*1060	870*1060	750	170-270	180-360	90-110	31.22	2660x2556x2800
PE-900*1060	900*1060	780	200-290	200-380	90-110	31	2690x2556x2800
PE-900*1200	900*1200	780	95-225	220-450	110-132	49	3335x3182x3025
PE-1000*1200	1000*1200	850	195-280	280-550	110-132	51	3435x3182x3025
PE-1200*1500	1200*1500	1020	150-300	400-800	160-220	100.9	4200x3732x3843
PE-1500*1800	1500*1800	1200	210-360	525-1120	280-335	132	5100x4700x4300
PEX-150*750	150*750	120	18-48	8-25	15	3.5	1380x1658x1025
PEX-250*750	250*750	210	25-60	13-35	30	4.96	1545x1667x1330
PEX-250*1000	250*1000	210	25-60	16-52	30-37	6.5	1530x1992x1380
PEX-250*1200	250*1200	210	25-60	20-61	37-45	8.52	1900x2192x1430
PEX-300*1300	300*1300	250	20-90	25-95	55-75	12.6	1750x2320x1724
PEX-350*1200	350*1200	300	70-140	25-120	75	12.35	2162x2220x1723
