Spiral Chute

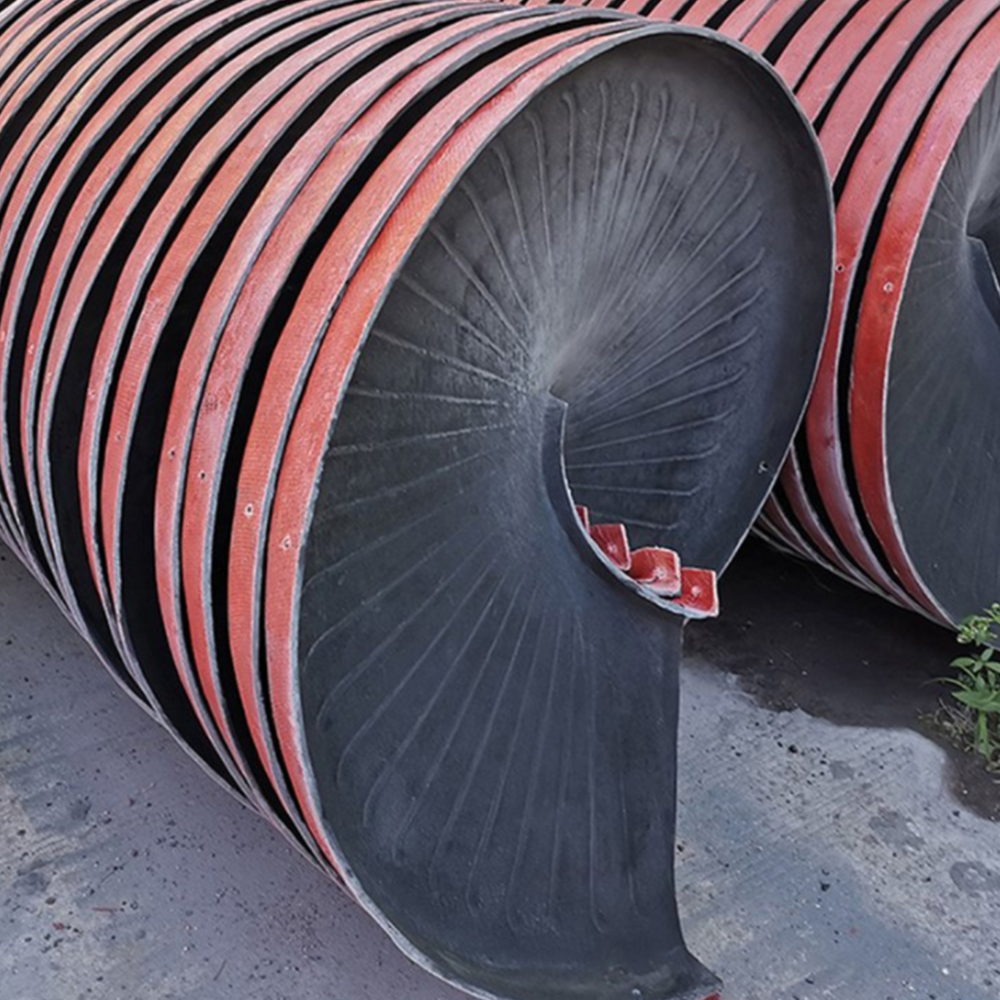

Spiral Chute Product Description

The Spiral Chute is constructed from durable fiberglass, providing exceptional wear resistance and an extended operational lifespan. It delivers high processing capacity and operates entirely without external power.

The Spiral Chute is specifically designed for the separation of fine-grained materials in the size range of 0.30 to 0.02 millimeters. It is highly effective in processing a wide variety of minerals, including iron ore, ilmenite, chromite, pyrite, zircon, rutile, monazite, phosphorite, tungsten ore, tin ore, tantalum ore, niobium ore, and other non-ferrous metals, rare metals, and non-metallic minerals with significant specific gravity differences.

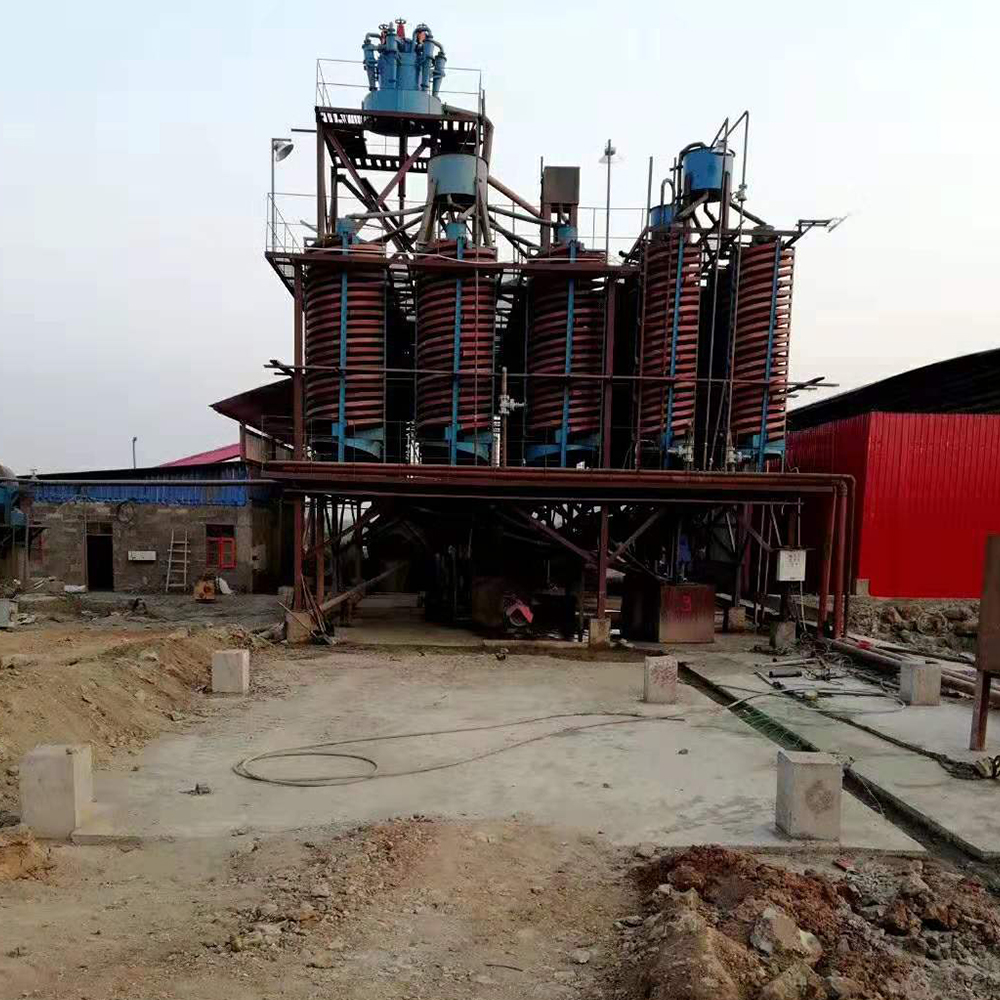

spiral chute (18).jpg

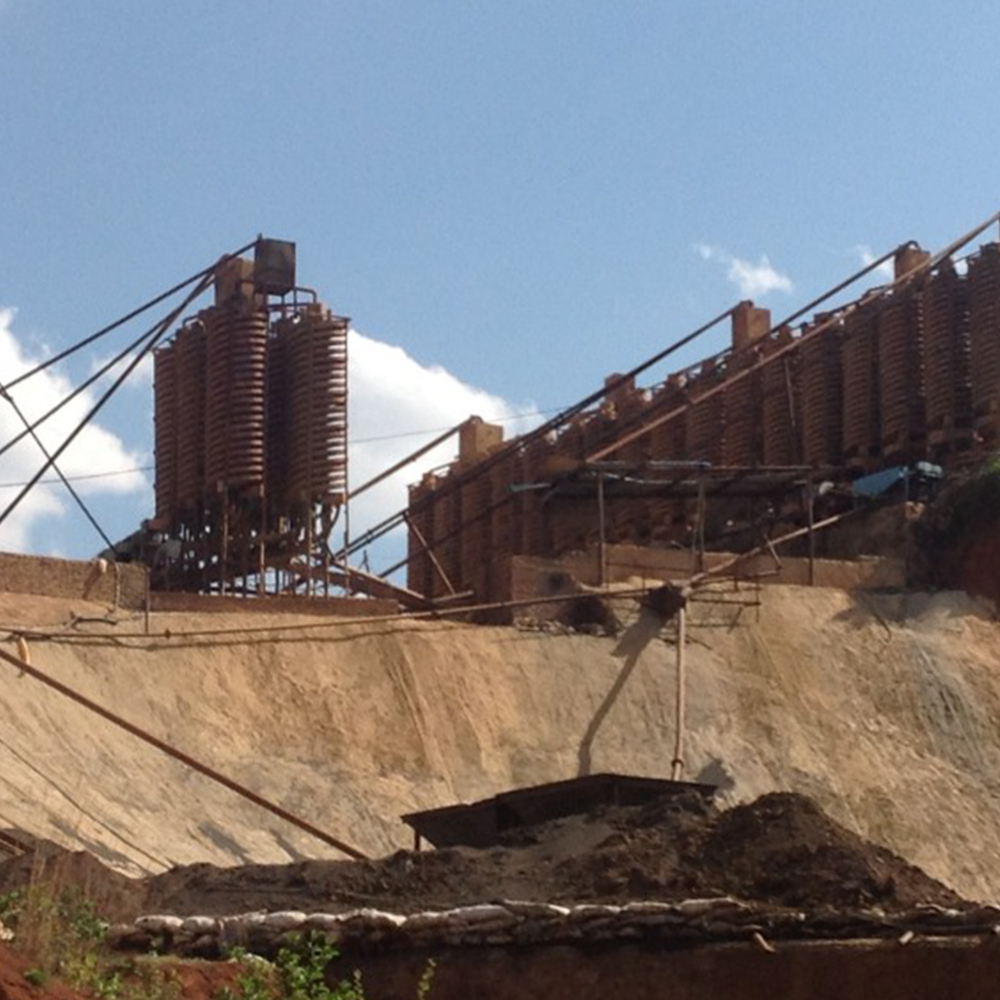

Spiral Chute Advantages

1.spiral chute built with robust fiberglass for outstanding wear resistance, ensuring long service life and high processing capacity.

2.spiral chute requires no external power, significantly reducing energy consumption and operational costs.

3.The spiral chute is highly effective for separating a wide range of fine-grained minerals (0.30-0.02mm) based on specific gravity.

4.Versatile in processing various metal and non-metal minerals, including rare and non-ferrous metals.

5.Simple structure and power-free operation minimize maintenance needs and downtime.

spiral chute (21).jpg

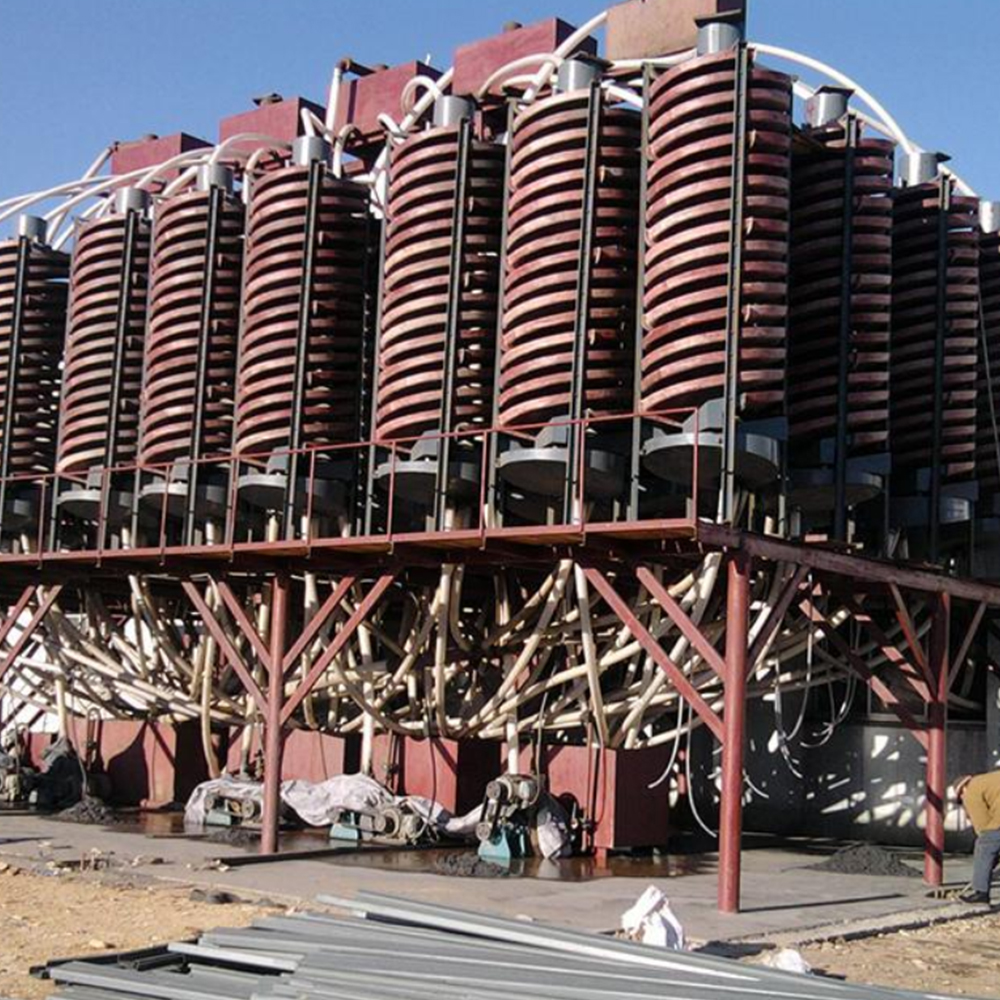

Spiral Chute Working Principle

Spiral chute is to Use physics and a precisely designed piece of equipment, the material is discharged onto a banked metal flight which is spirally wound around a central shaft. As the material flows down the separator, its speed increases, and centrifugal force carries it toward the outer edge of the flight.

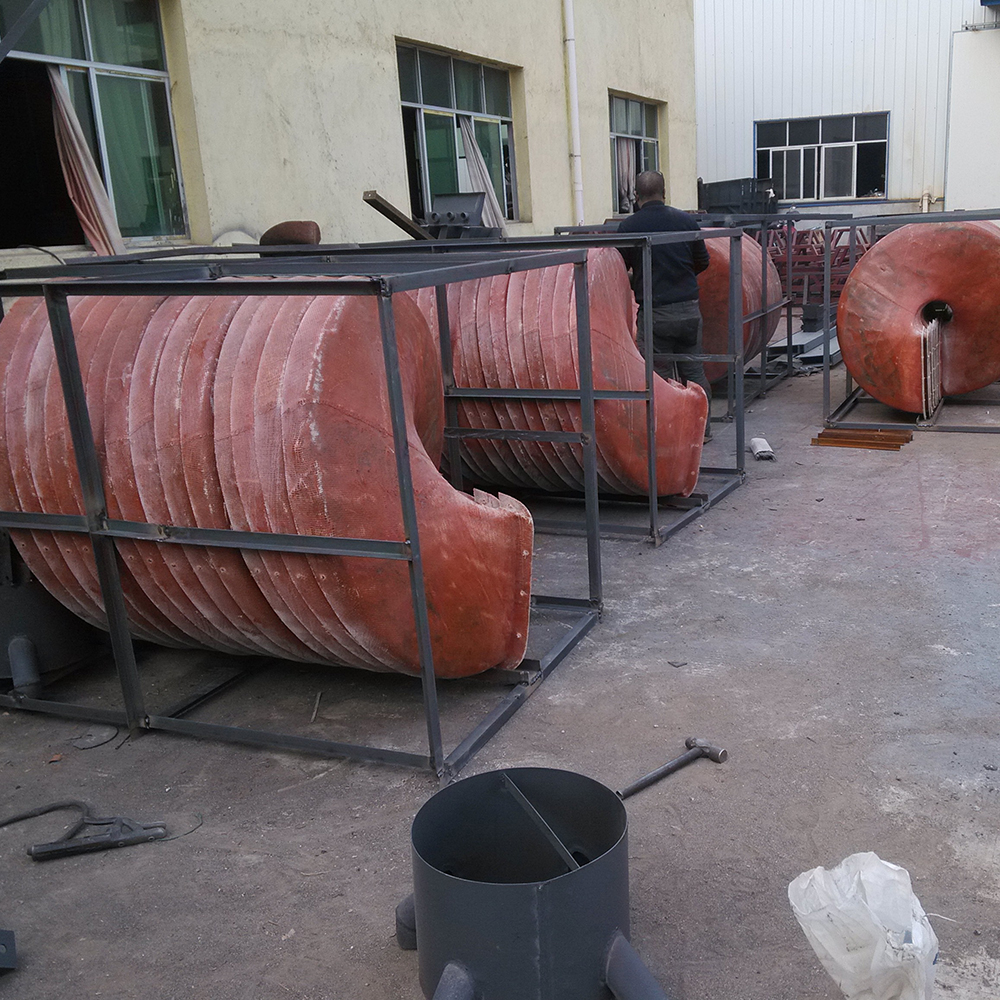

spiral chute (121).jpg

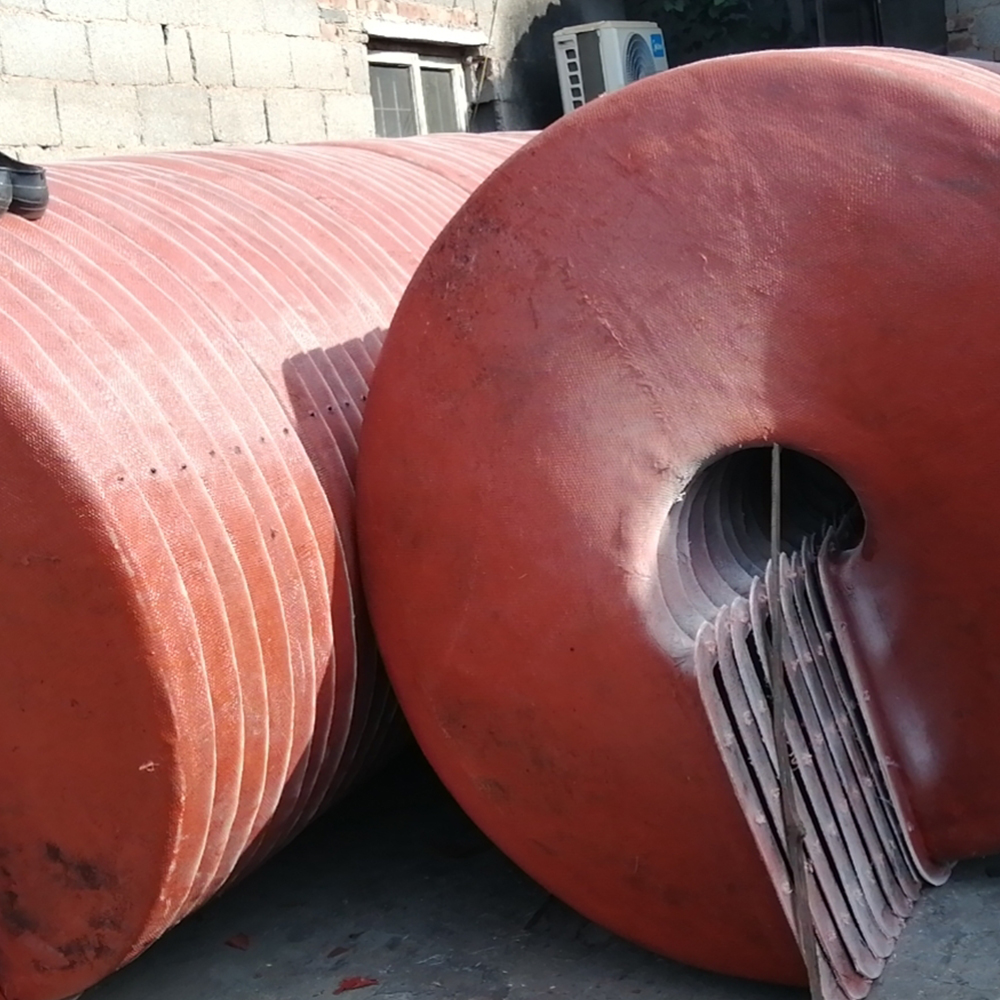

Spiral Chute Technical Parameters

Model	5LL-2000	5LL-1500	5LL-1200	5LL-900	5LL-600	5LL-400
Spiral Diameter(mm)	2000	1500	1200	900	600	400
Spiral Pitch(mm)	1200	800/680/540	720/540/360	660/540/400	450/360/270	240/180
Starts	3	4	4	4	2	2
Feeding Size(mm)	4-0.04	0.8-0.037	0.3-0.03	0.3-0.03	0.2-0.02	0.2-0.02
Feeding Denstiy(%)	20-45	30-60	25-35	25-55	25-55	25-55
Capacity(t/h)	15-40	6-8	4-6	2-3	0.4-0.8	0.15-0.2
Lenth(mm)	2300	1560	1360	1060	700	460
Width(mm)	2300	1560	1360	1060	700	460
Height(mm)	6500	5230	5230	4000	2600	1500
Weight(kg)	1100	800	600	400	150	50
