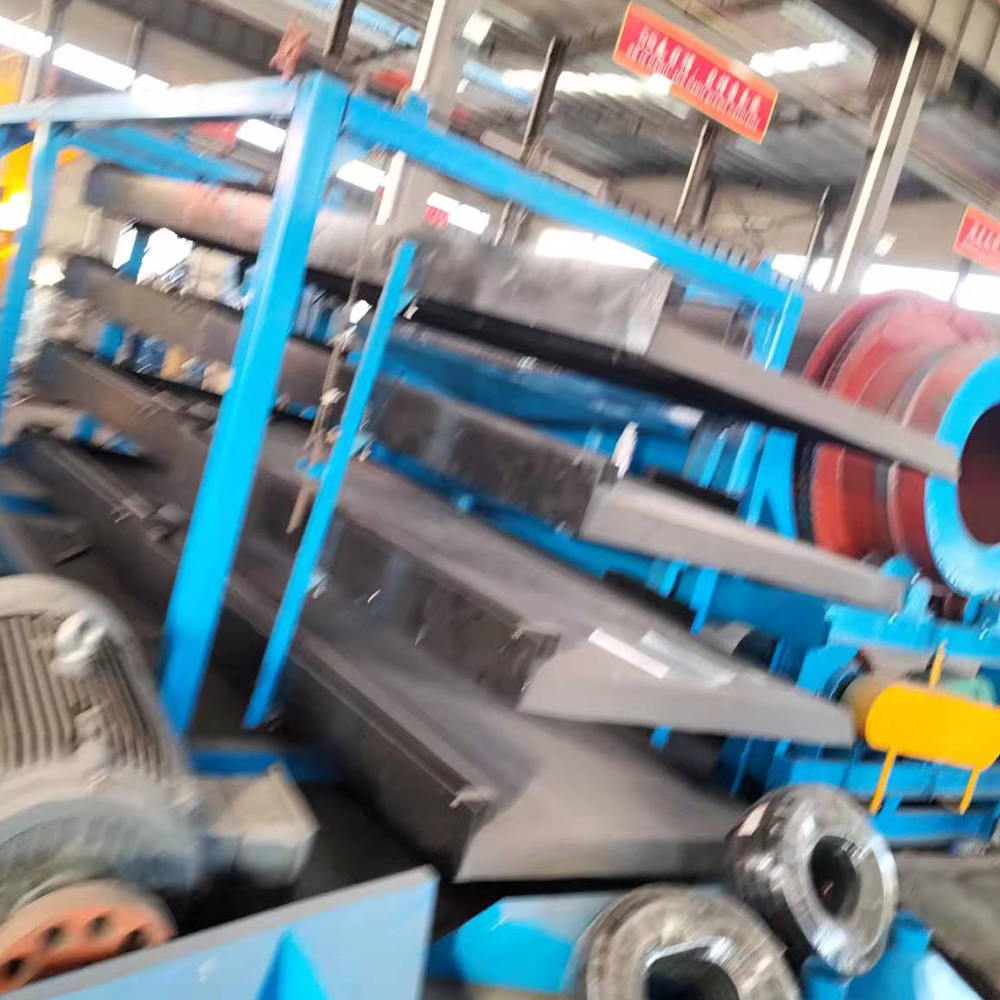

Multi-deck Lift Type Shaking Table

Multi-deck Lift Type Shaking Table - High-capacity gravity separator for fine mineral recovery (tungsten, gold, tin, etc ) Features FRP decks, VFD motor, and multi-layer design for 3-4x higher efficiency Ideal for roughing scavenging operations

INQUIRY

Product Description

The Multi-deck Shaking Table is a high-efficiency gravity separation equipment widely used in mineral processing for the beneficiation of various ores, including tungsten, tin, tantalum, niobium, iron, manganese, chromium, titanium, bismuth, lead, gold, and other rare and precious metals. It is also suitable for coal cleaning. Designed with multiple layers, this equipment significantly improves processing capacity per unit floor area while maintaining precise separation performance for different particle sizes, ranging from coarse sand (2-0.5mm) to fine sand (0.5-0.074mm) and slime (-0.074mm). Its effective recovery size range for tungsten, tin, and similar ores is 2-0.022mm.

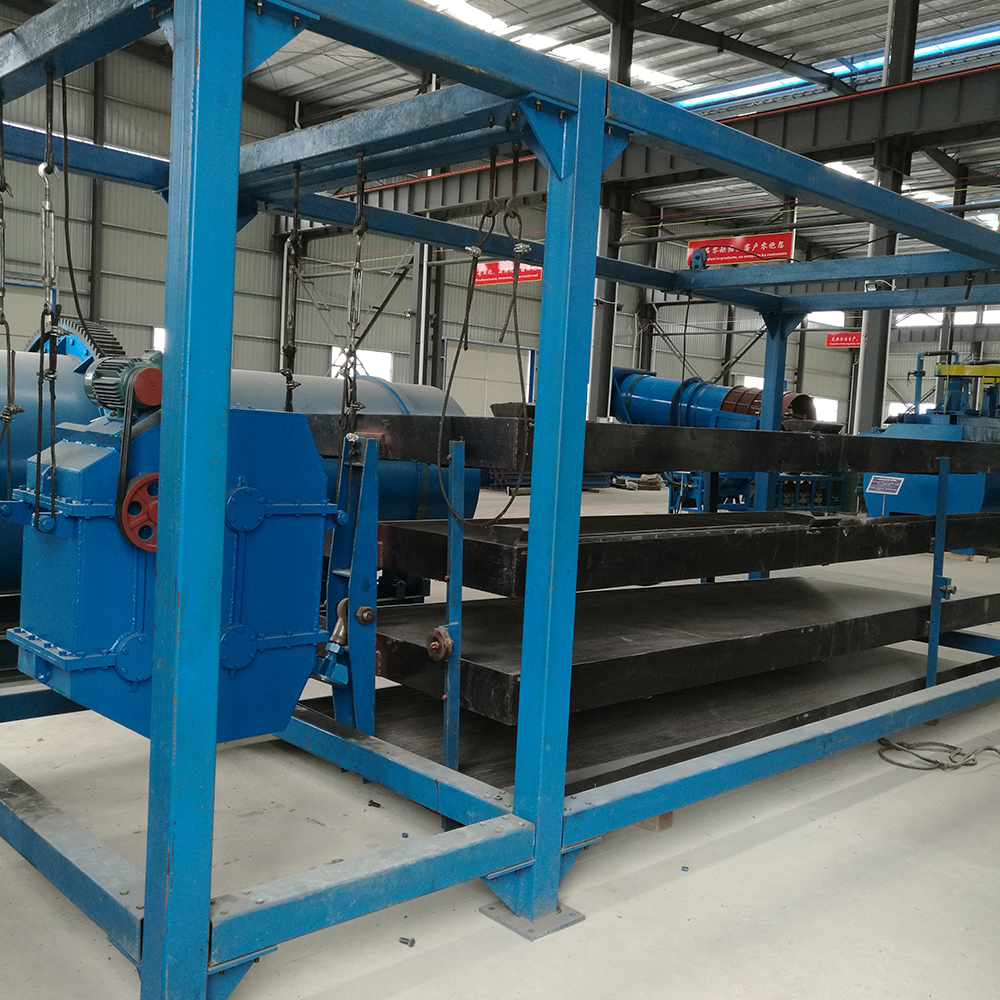

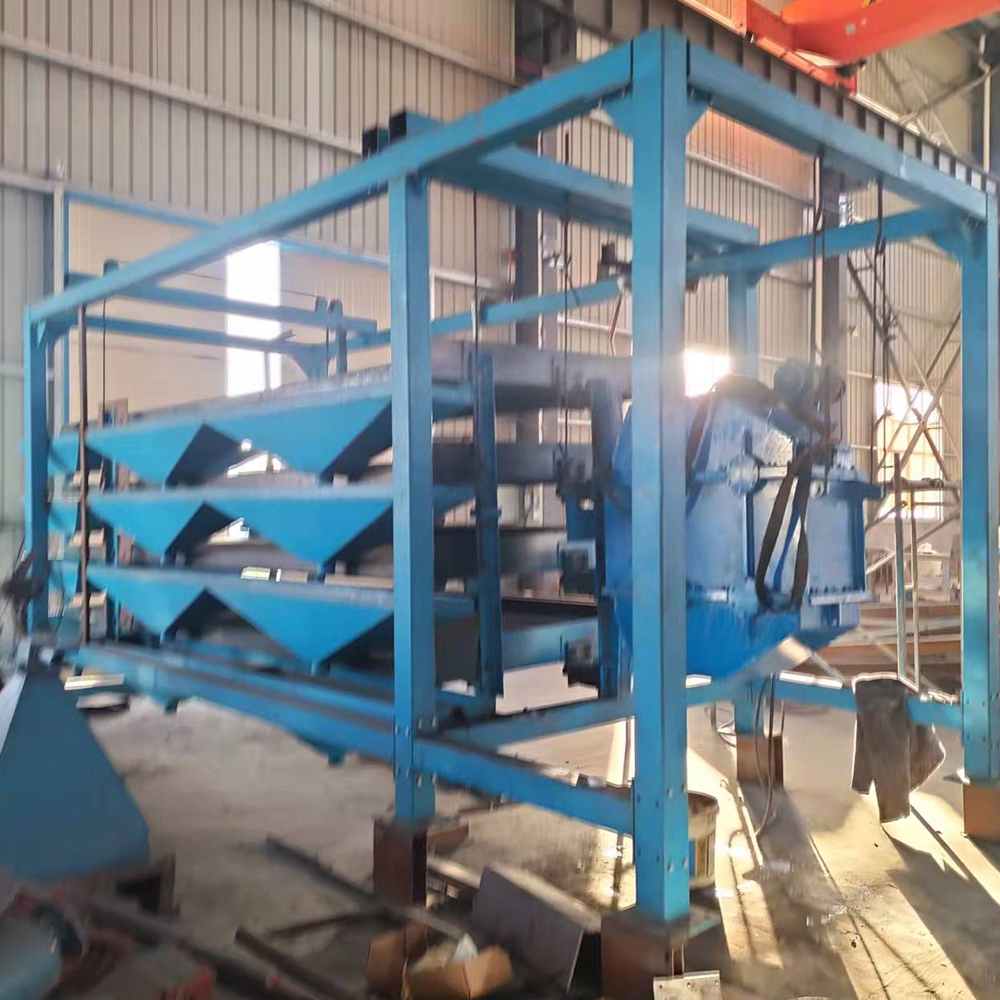

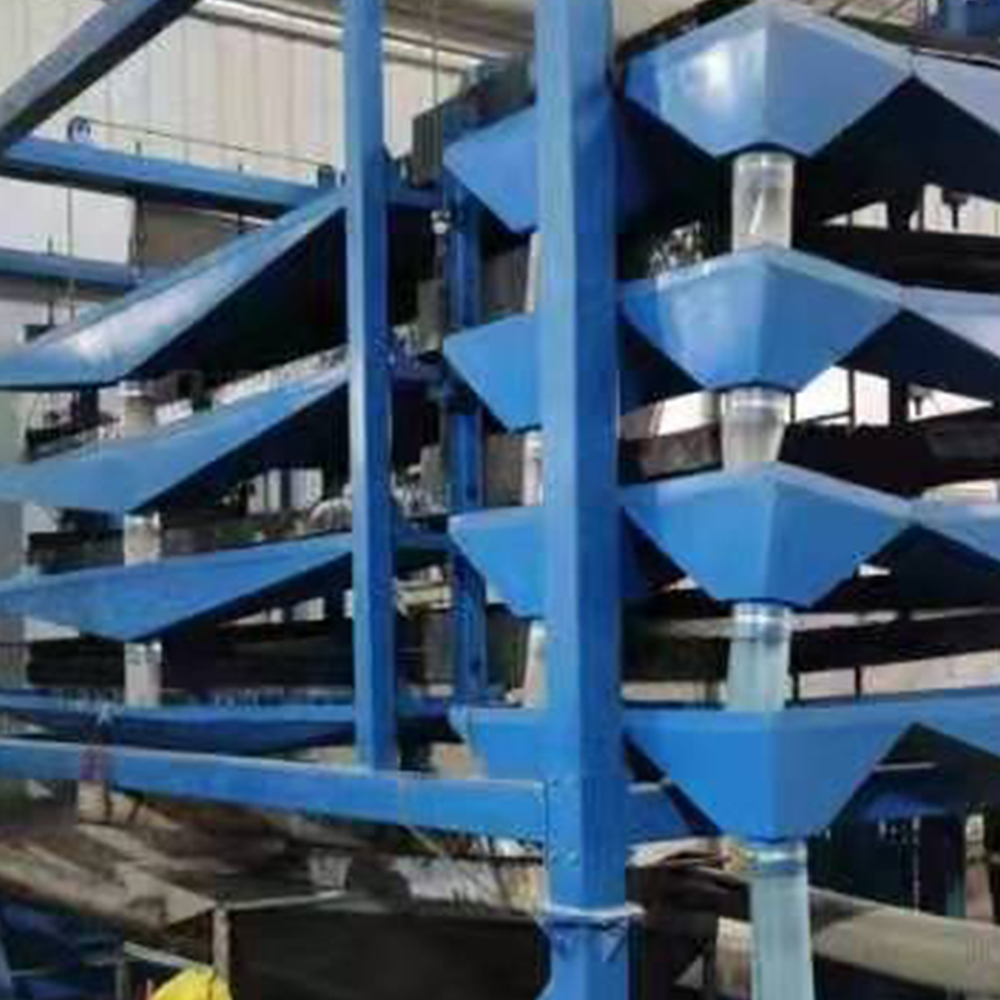

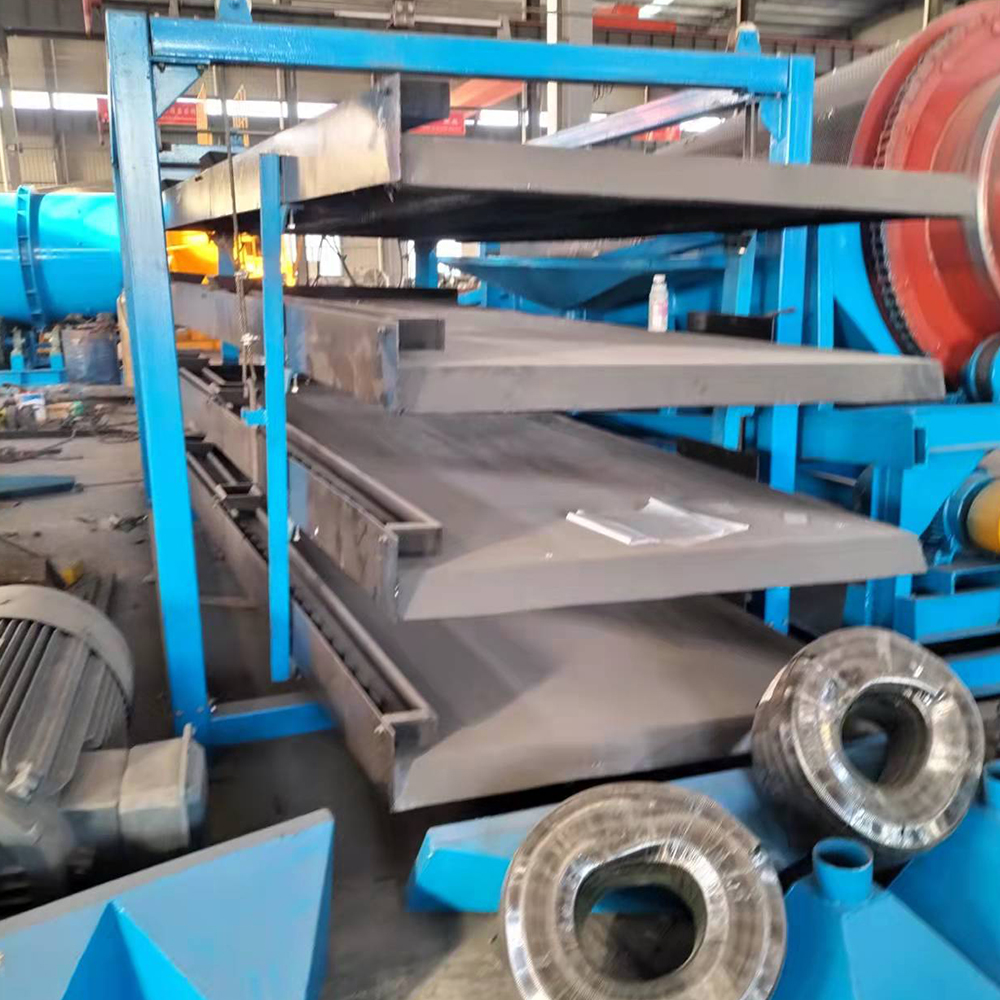

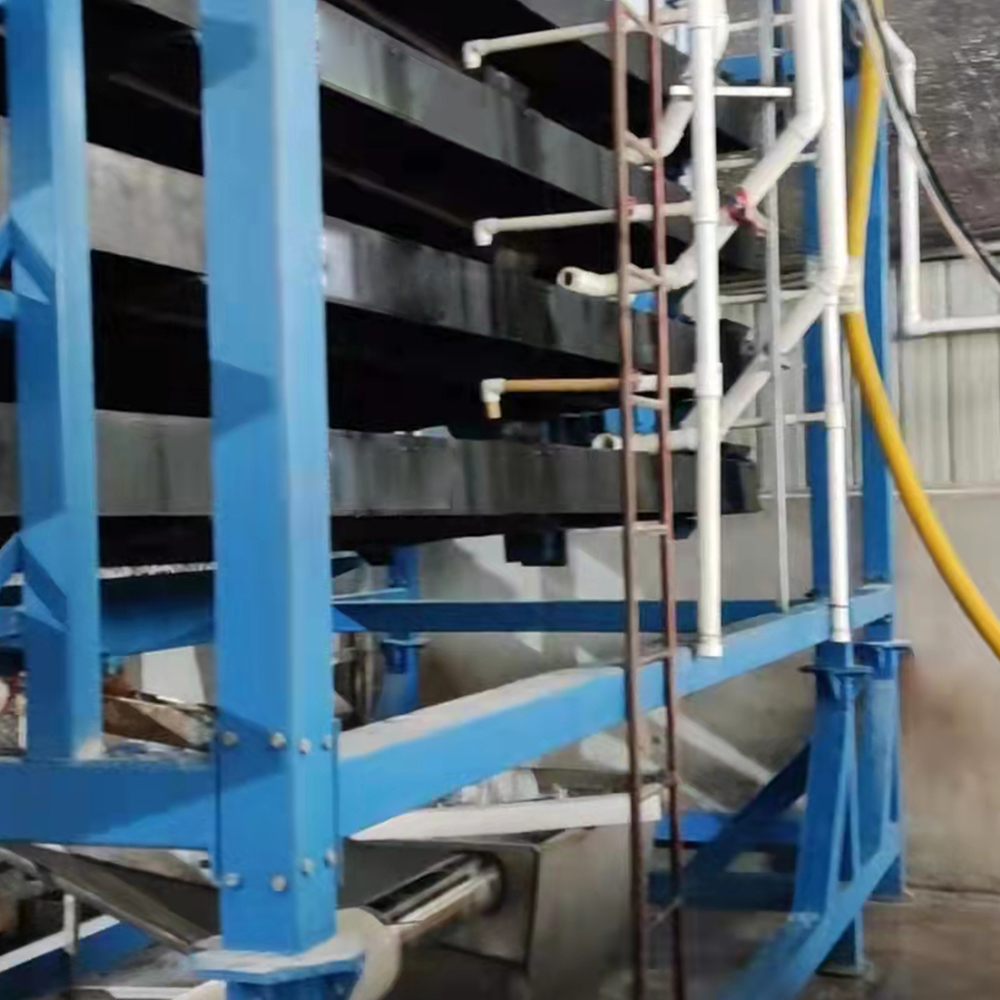

The Multi-deck Shaking Table features an innovative inertial head structure that balances vertical forces, eliminating vertical vibration and enabling installation on upper-floor platforms or pedestal stands. Its suspended design minimizes friction, reduces energy consumption, and enhances flexibility and stability. The table deck is constructed from wear-resistant, waterproof, and anti-corrosion fiberglass reinforced plastic (FRP), ensuring long service life and minimal maintenance. The multi-layer decks are mounted on a unified frame for easy installation and adjustment. Additionally, the stroke length can be modified by replacing counterweight blocks, and the stroke frequency is adjustable via a variable frequency drive (VFD) motor to adapt to diverse ore properties and particle sizes.

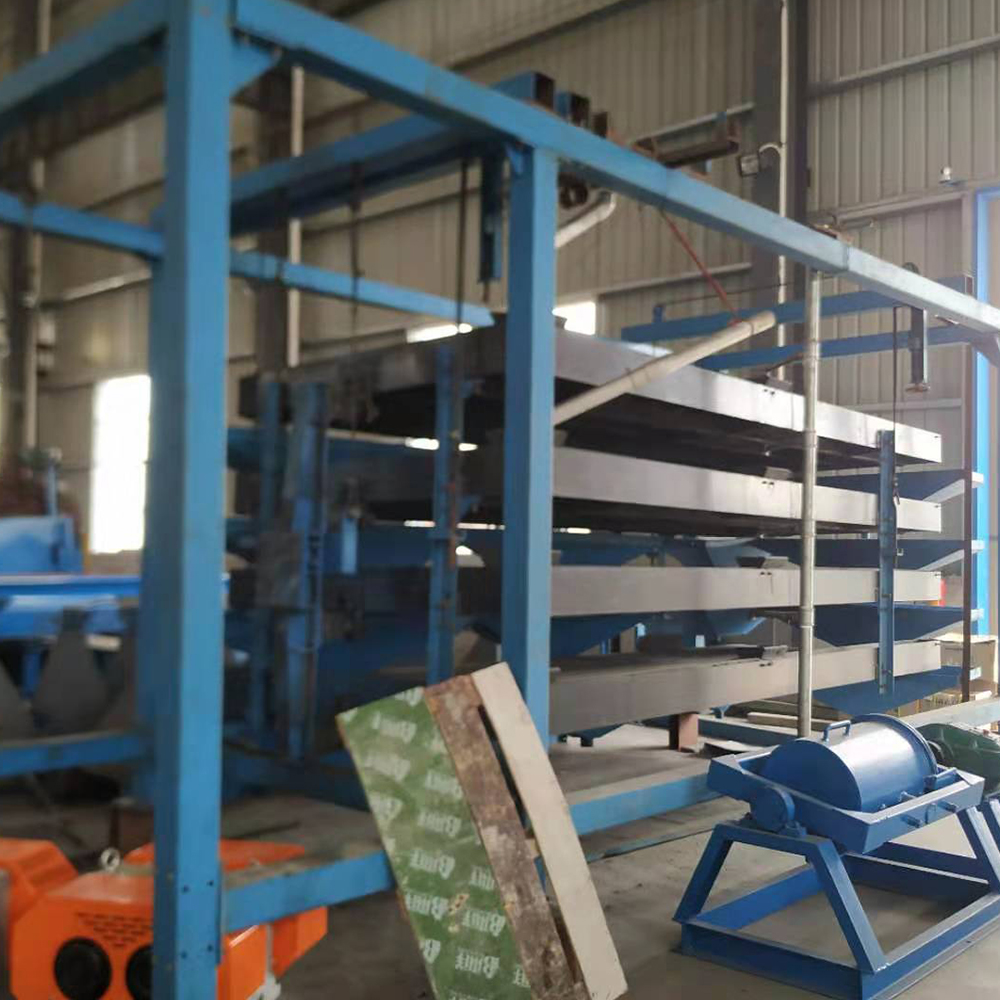

Shaking Table Machine (6).jpg

Advantages

1.High strength, easy disassembly, and portability, facilitating transportation and relocation.

2.Excellent for processing various ores, including viscous materials, with superior recovery performance for coarse, flake, and micro-fine gold particles (down to 0.02mm).

3.Suitable for diverse geological conditions and ore types (primary and tailing ores), with low water and energy consumption.

4.Achieves concentration ratios ranging from tens to hundreds of times due to intermittent concentrate discharge, outperforming traditional jig machines.

5.The multi-layer design increases processing capacity by 3-4 times compared to conventional shaking tables per unit floor area.

Shaking Table Machine (15).jpg

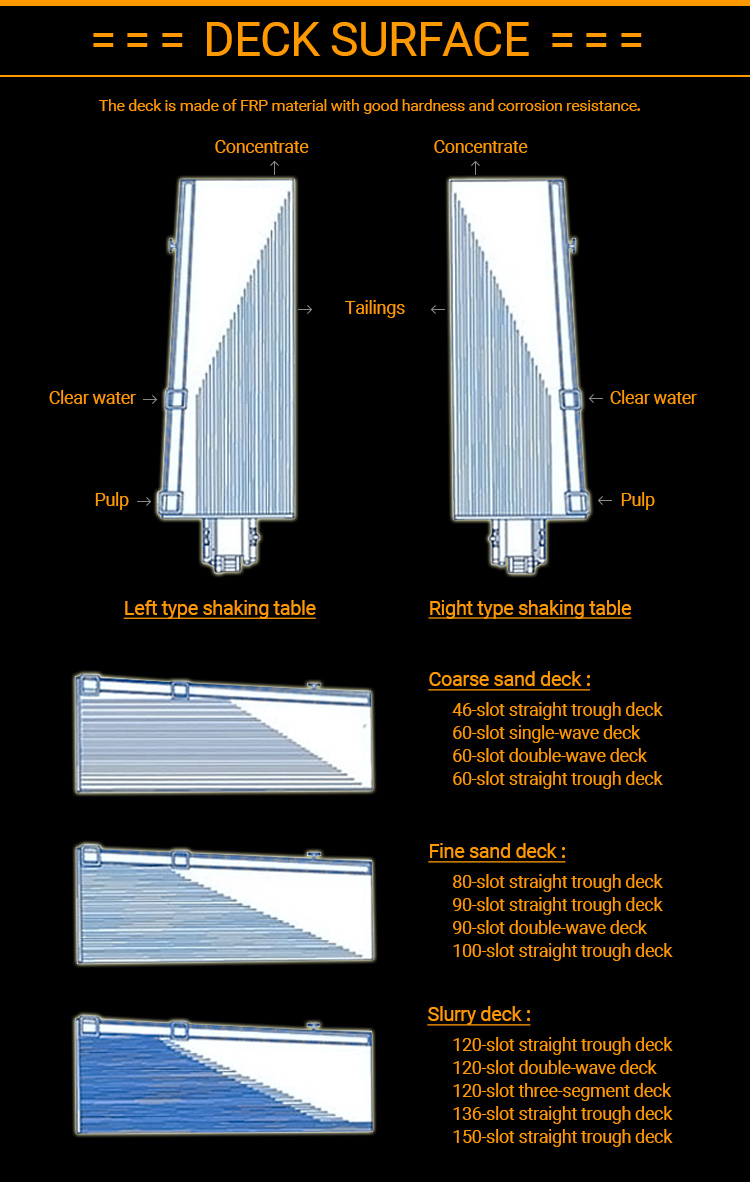

Working Principle

Shake table is on the lean table board with raffles. The ore material is fed in by the feeding chute upper table board; meanwhile, the water is fed by water feeder transversely. Under the impact of vibrating wave, the materials go on vertical and horizontal movement as per the different proportion and granularity. The ore material with different proportion and granularity move down in laddershipped state along with their own movement, then discharge from the fine concentrate end and tailings end, finally they are separated out to fine concentrate, middle concentrate and tailings.

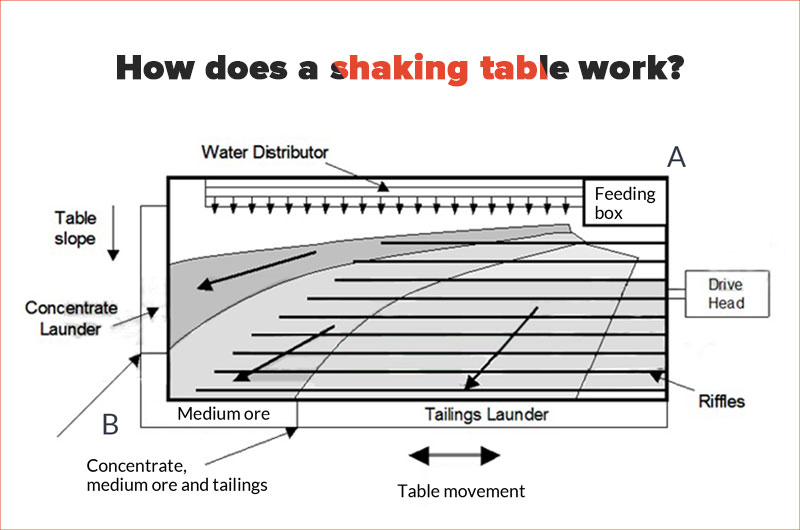

shaking table.jpg

Technical Parameters

Model		3LYG			4LYG
Decktype		CoarseoreDeck	Finesand Deck	SlimeDeck	CoarseoreDeck	Finesand Deck	SlimeDeck
Beneficiationarea(m2)		7.6X3	7.6X3	7.6X3	7.6X4	7.6X4	7.6X4
DeckSize	Length(mm)	4500	4500	4500	4500	4500	4500
	Transmissionendwidth(mm)	1850	1850	1850	1850	1850	1850
	Concentrateendwidth(mm)	1550	1550	1550	1550	1550	1550
Maximumfeedingsize(mm)		2	0.5	0.074	2	0.5	0.074
Capacity(t/h)		4-5	2-3	1.5-2.5	5-6.5	3-5	2-3.5
Feedingdensity(%)		20-30	18-25	15-20	20-30	18-25	15-20
Stroke(mm)		8、10、12、15、18、20、22
Frequencyofstroke(r/min)		270—360（variable-frequence）
Waterconsumption(t/h)		0.7-1	0.4-0.7	0.4-0.7	0.7-1	0.4-0.7	0.4-0.7
Grooveshapeofdeck		AvailableRectangular,Saw-tooth,Triangle
Power(Kw)		1.5Kw		Dimensions(mm)			6330×2450×2660
