Shaking Table 6-S Shaking Table Gold Shaking Table

The shaking table, also known as a gravity concentration table, is a key equipment for fine-grained material separation based on density differences

INQUIRY

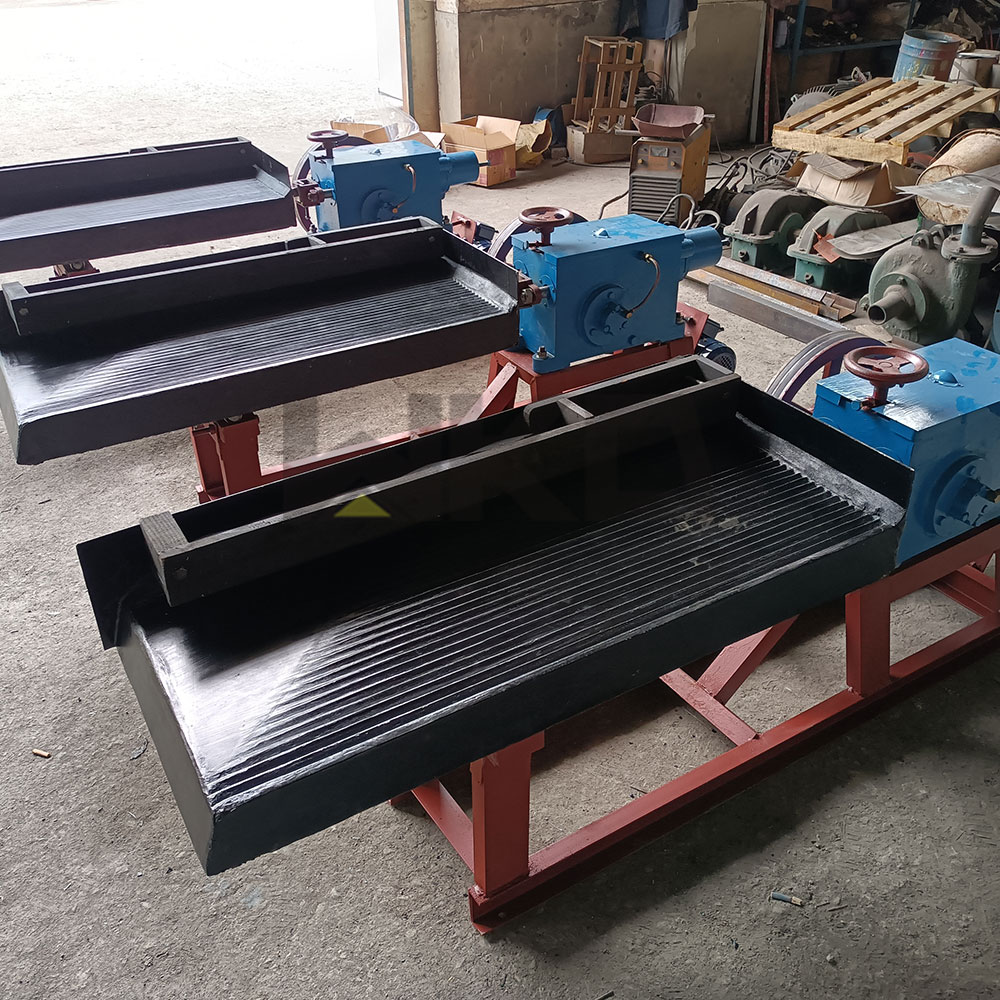

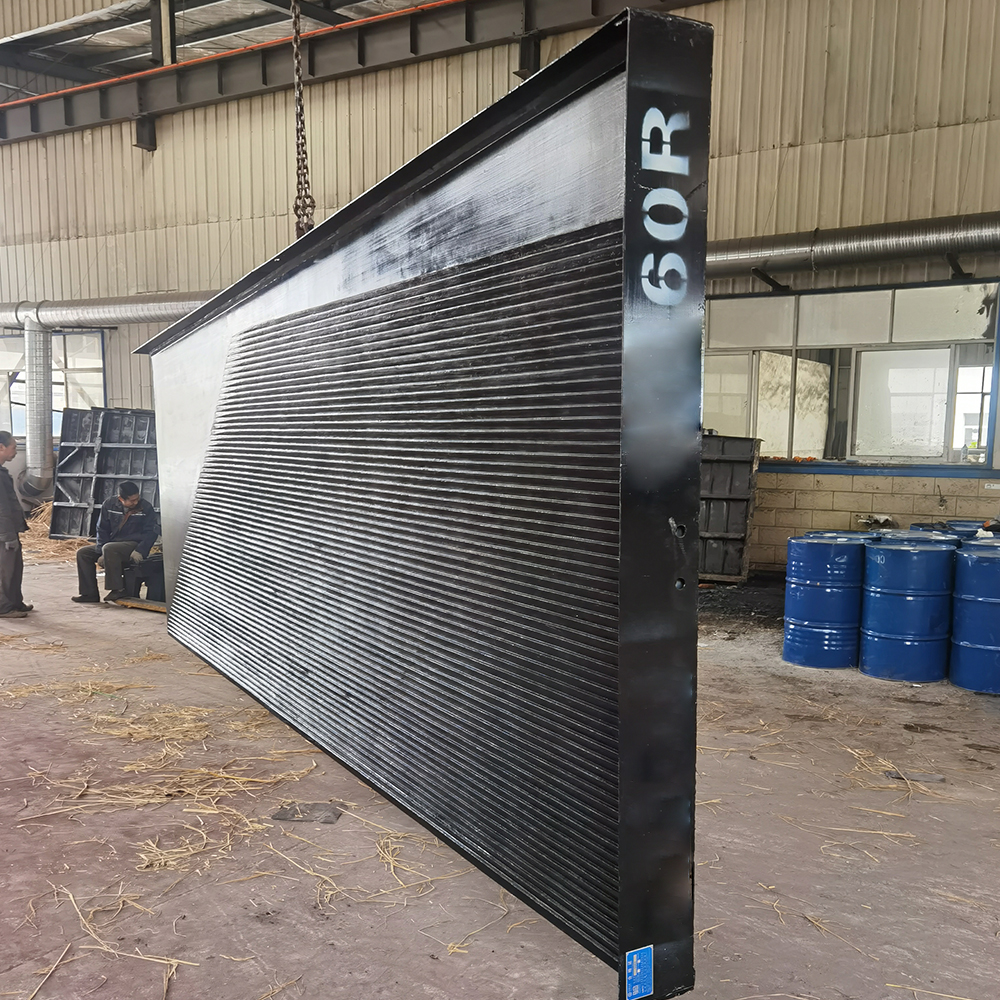

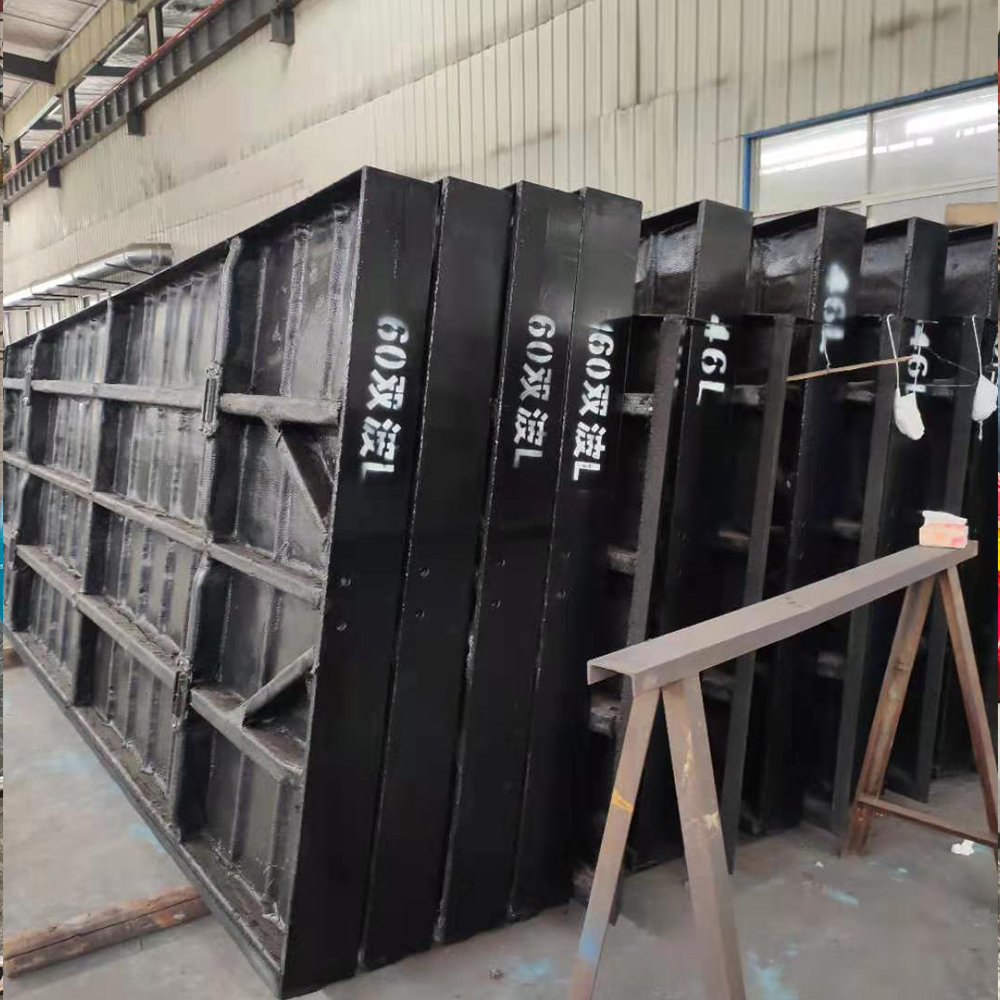

Shaking Table

Product Description

Shaking table is designed to wet gravity-based separation of minerals and other granular materials. There are many applications where the concentrating table is of particular value and cannot be equaled for economical and efficient performance. They are effective in processing precious and base metal, rare metal and non-metallic minerals.

6-S shaking bed is one of the main equipment for gravity classification, which is widely applied in the classification of tungsten, tin, tantalum, columbium and other rare metal and precious metal ore. shaking bed is designed for wet gravity-base separation of mineral and other granular materials. It is effective in processing precious and base metal, rare and non-metallic minerals.

metal tail machine (24).jpg

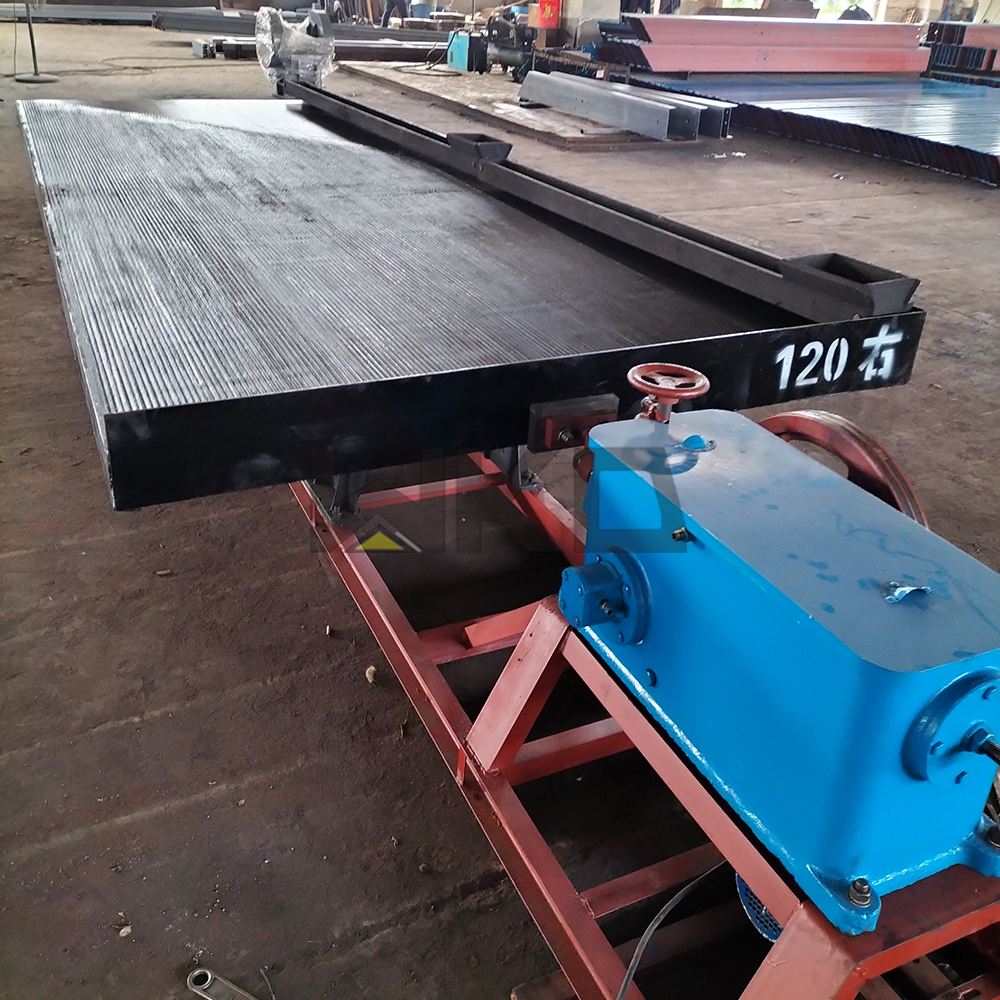

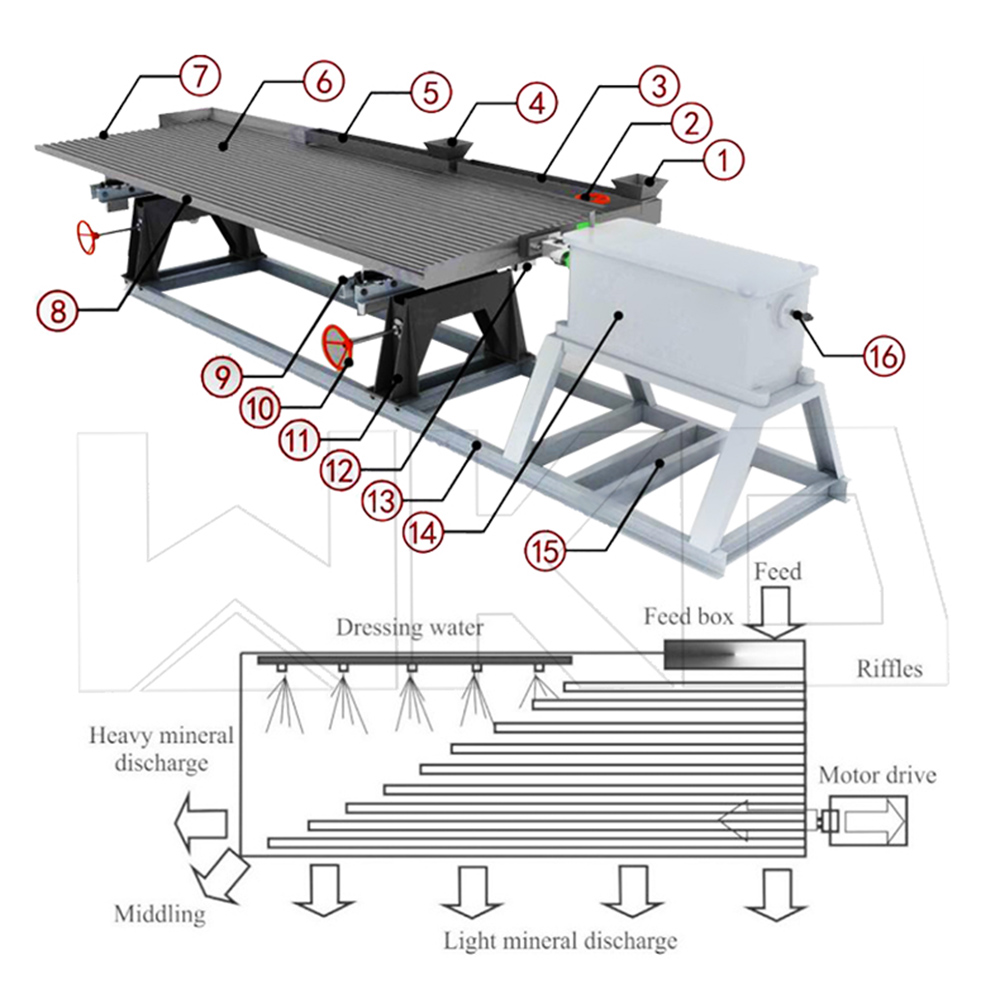

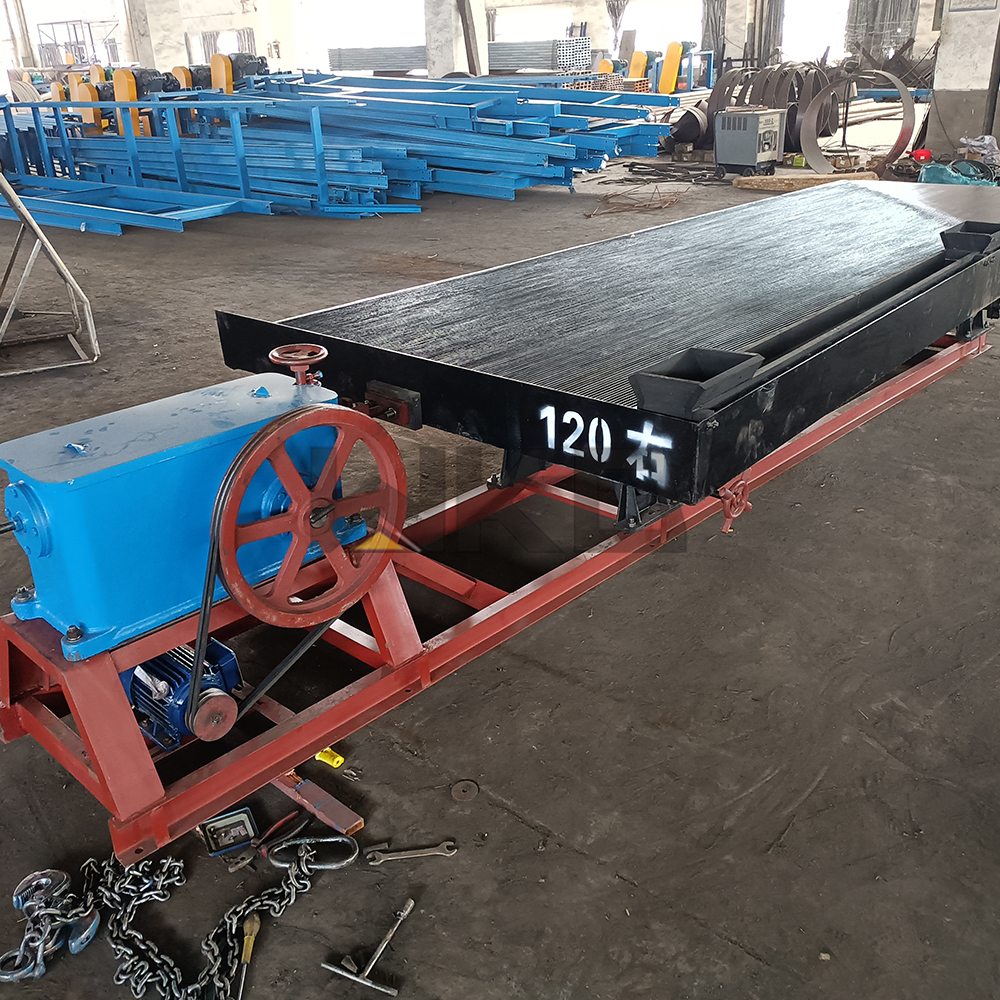

Struture

gold shaking table.jpg

Ore Feeding Mouth
Stroke Adjusting Device
Ore Feeding Chute
Water Feeding Mouth
Water Feeding Chute

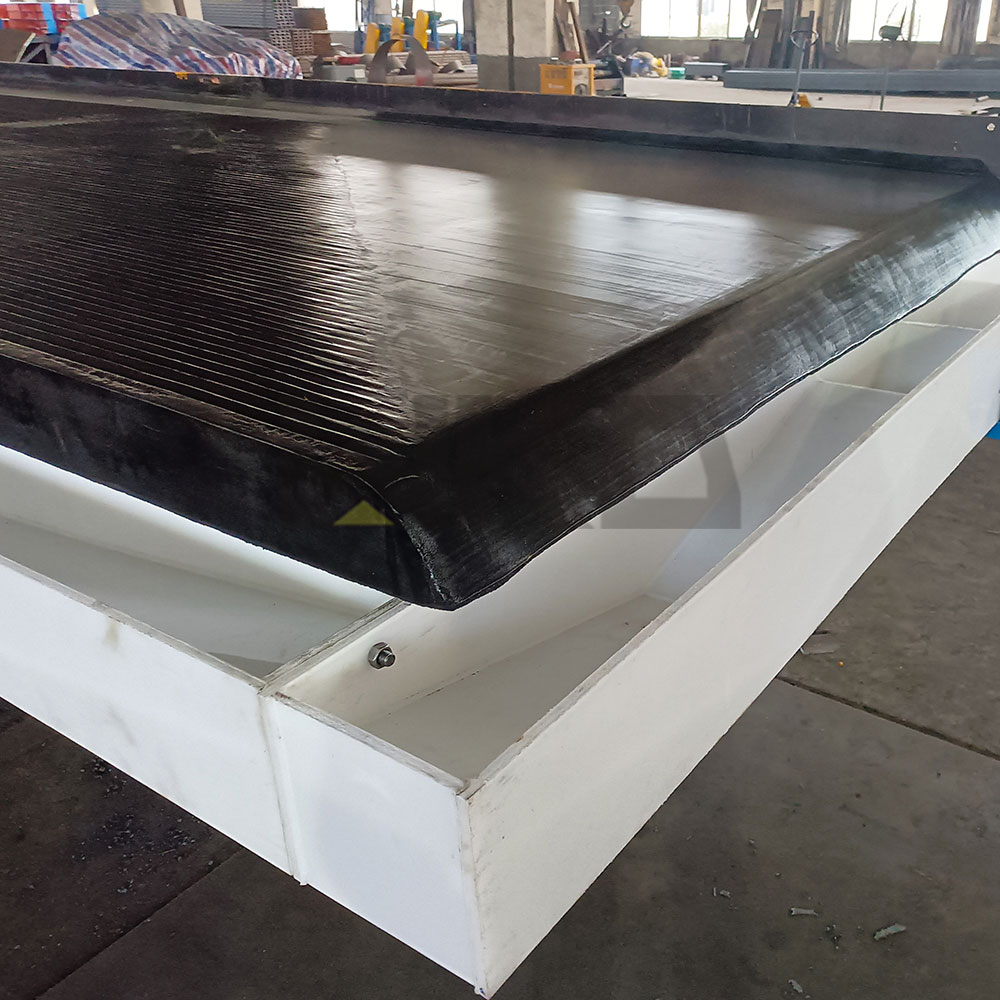

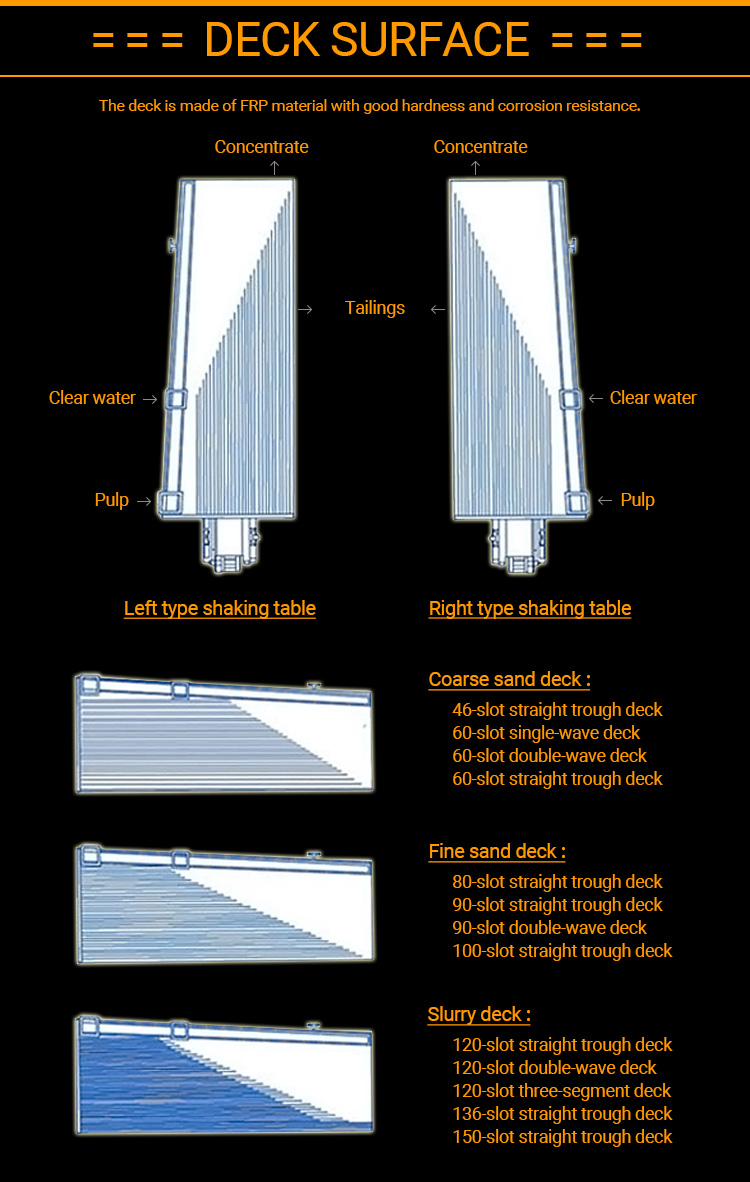

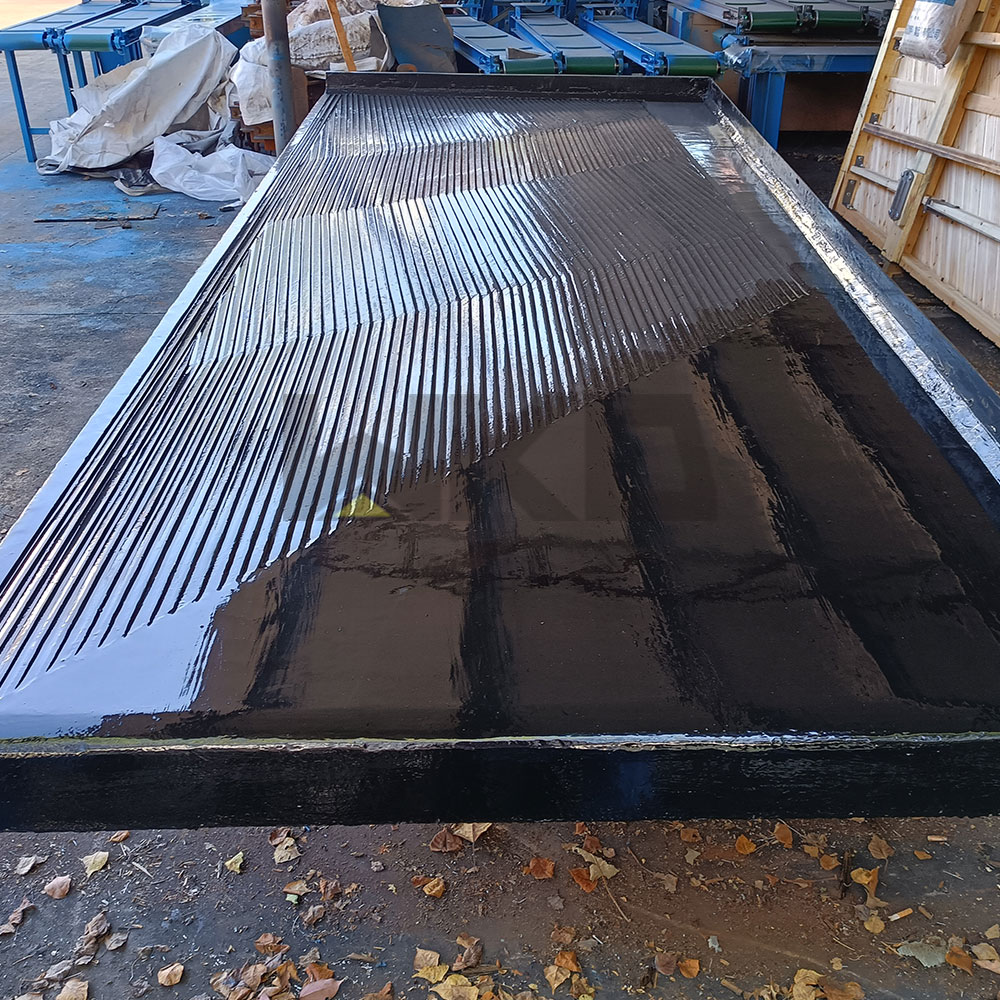

Table Surface
Concentrates Discharging Area 8. Tailing Discharging Area
Horizontal Support
Horizontal Adjustment Wheel
Table Support

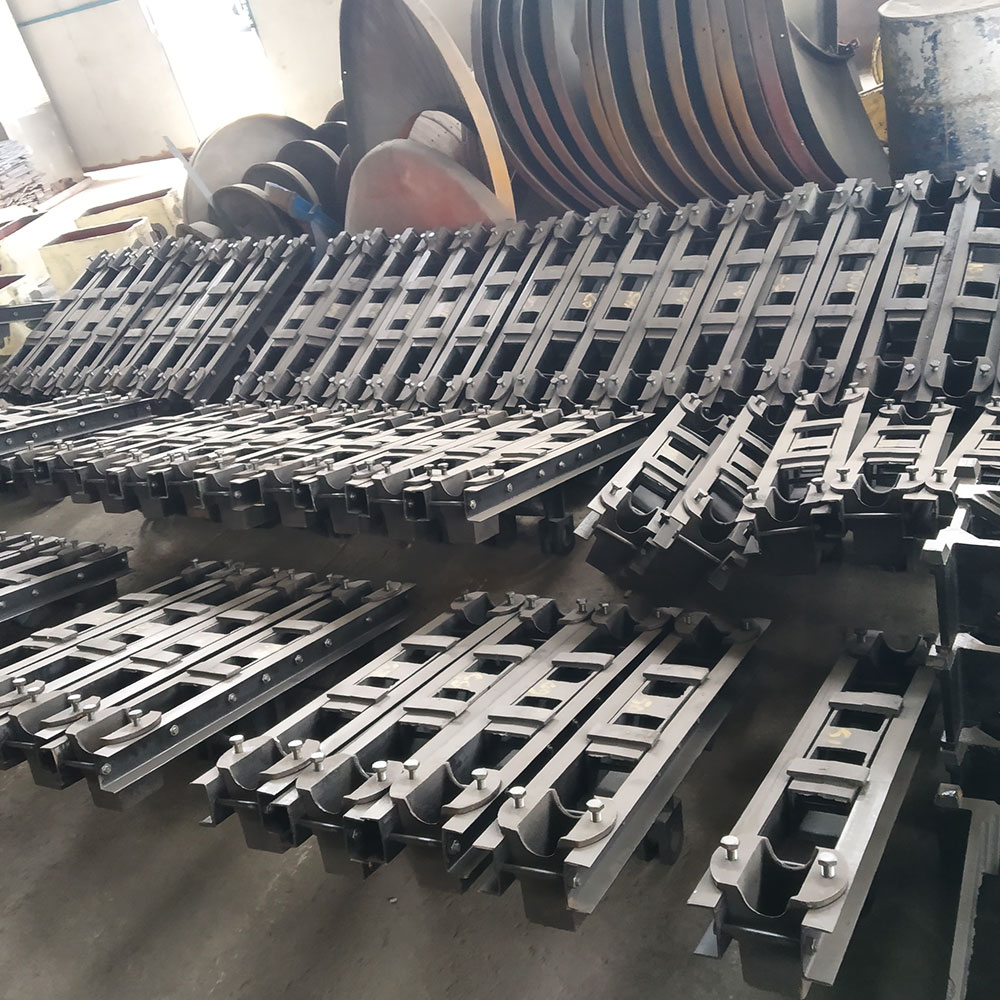

Knife-Type Support

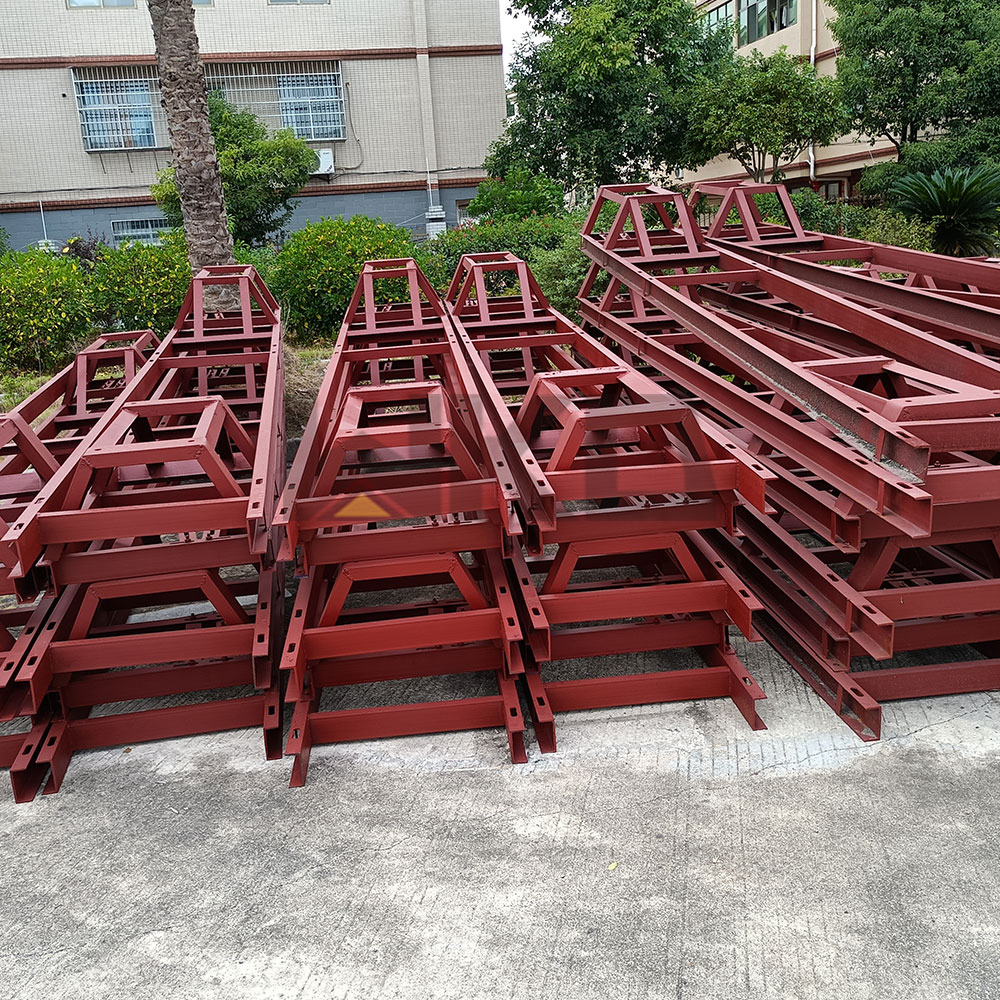

Stand

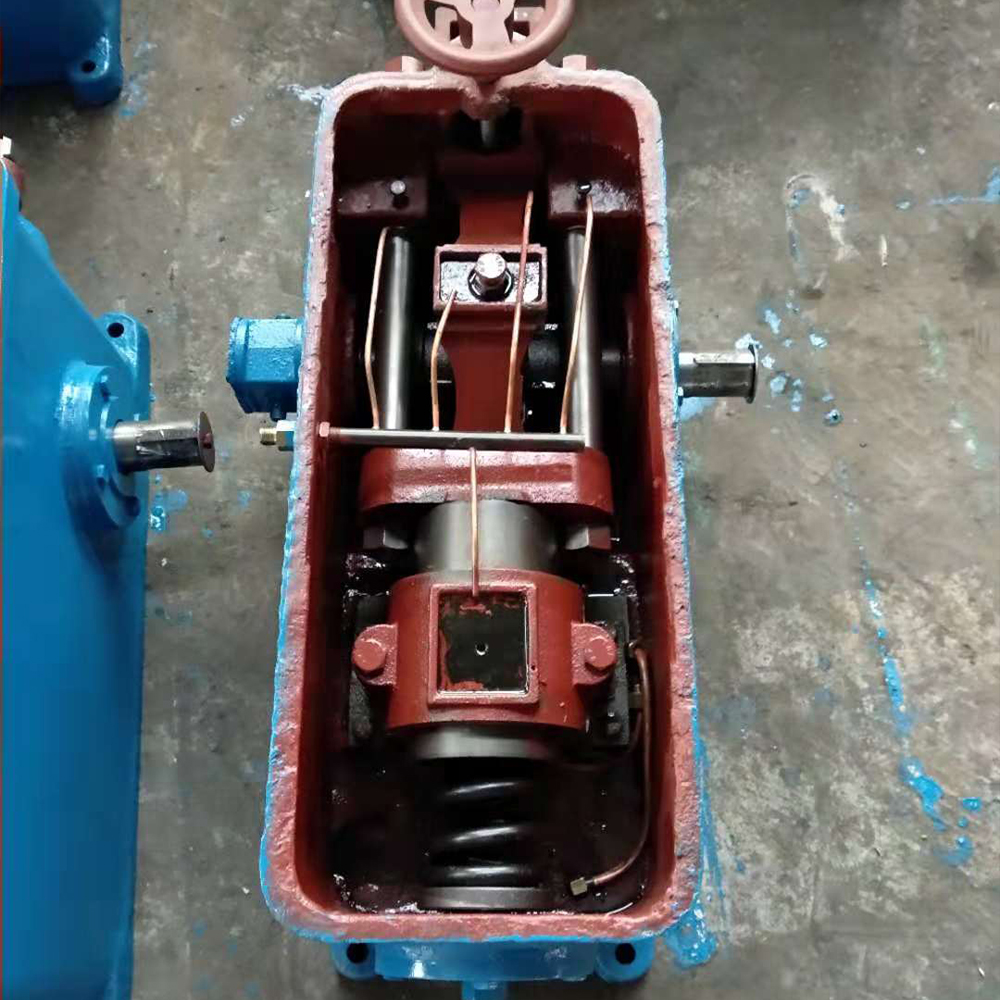

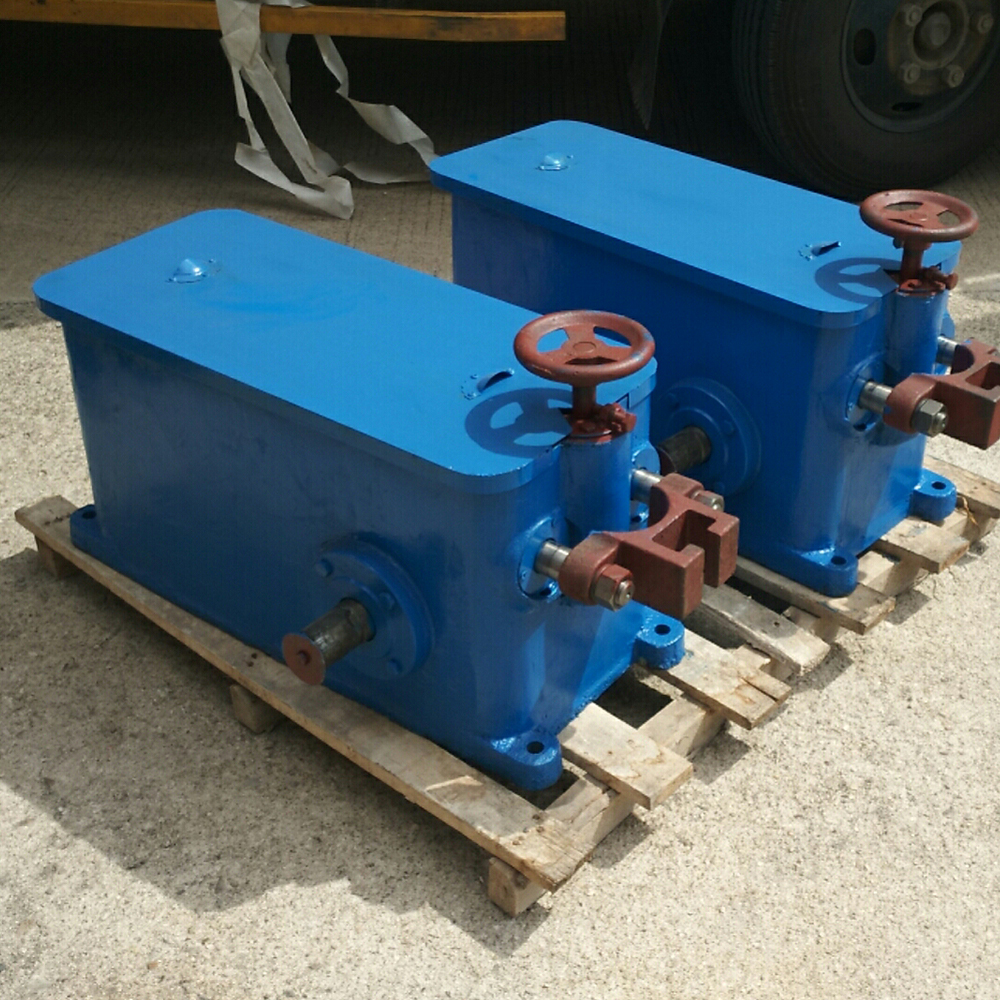

Driving Unit 15. Motor Support
Swing Adjusting Device

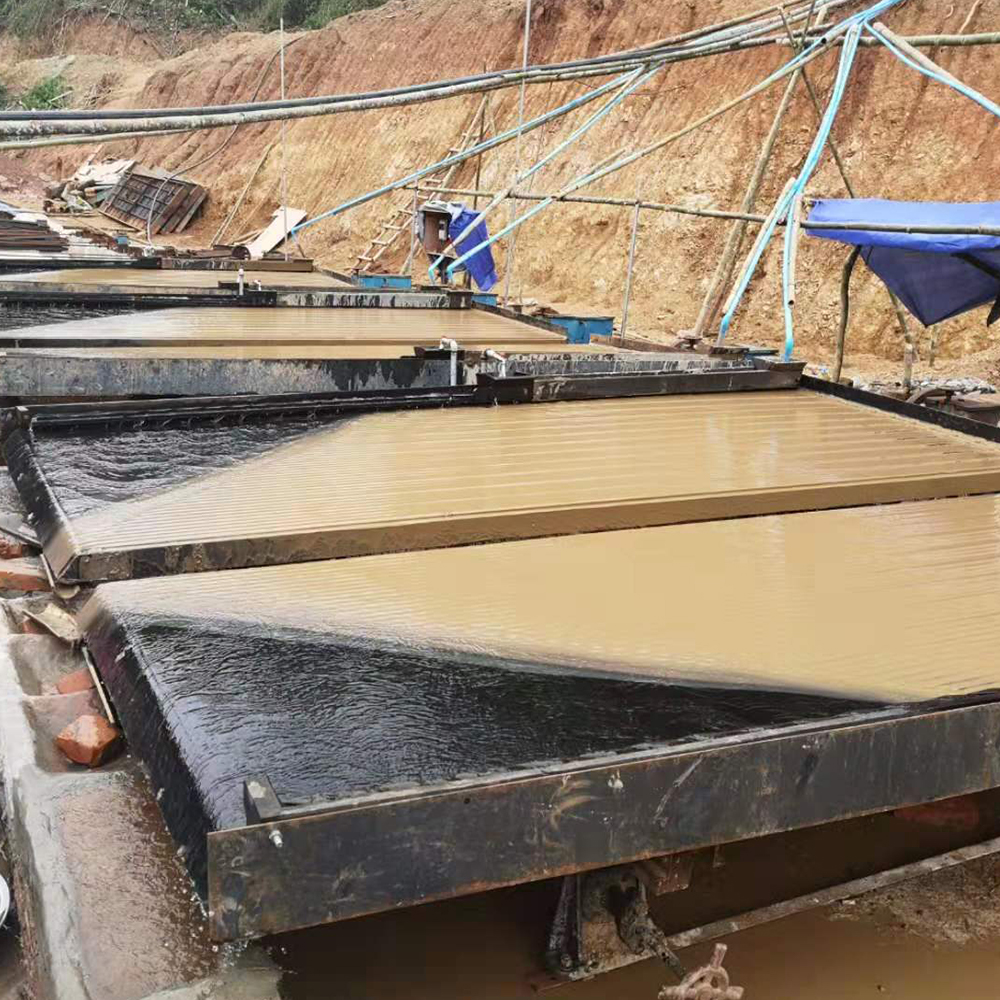

Working Principle

Shake table is on the lean table board with raffles. The ore material is fed in by the feeding chute upper table board; meanwhile, the water is fed by water feeder transversely. Under the impact of vibrating wave, the materials go on vertical and horizontal movement as per the different proportion and granularity. The ore material with different proportion and granularity move down in laddershipped state along with their own movement, then discharge from the fine concentrate end and tailings end, finally they are separated out to fine concentrate, middle concentrate and tailings.

shaking table.jpg

Technical Parameters

Model	LY4500	LY3000	LY2100	LY1100
Deck Size (mm)	4520×1850×1560	3000×1490×1360	2100×1050×850	1100×500×430
Deck Area (㎡)	7.67	4.08	2	0.51
Feeding Size (mm)	2-0.037	2-0.037	2-0.037	2-0.037
Water Consumption (t/h)	2-5	1.5-3	1-2.5	0.2-0.5
Capacity (t/h)	1-2.5	0.6-1.5	0.4-0.8	0.1-0.2
Stroke Length (mm)	10-30	10-30	10-30	9-17
Frequency (r/min)	240-360	210-360	210-360	130-210
Horizontal (°)	0°-10°	0°-10°	0°-10°	0°-8°
Motor (kw)	1.1	1.1	1.1	0.55
Dimension (mm)	5630×1850×860	4130×1680×860	3040×1050×760	1530×500×660
Weight (t)	0.65	0.55	0.35	0.15
