Hydraulic Radial Jig

Hydraulic radial jig has been widely used as roughing separation equipment to select ore such as alluvial gold, tin, diamond, tungsten, manganese and hematite

INQUIRY

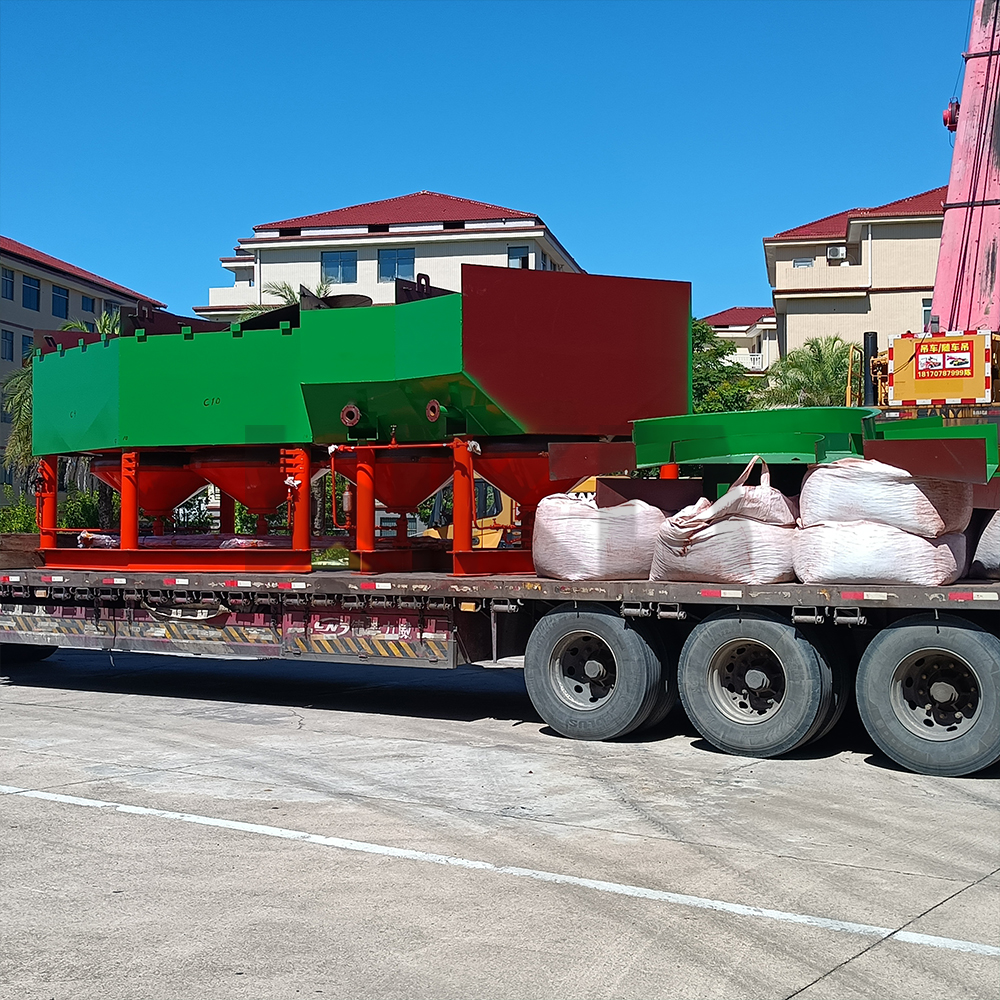

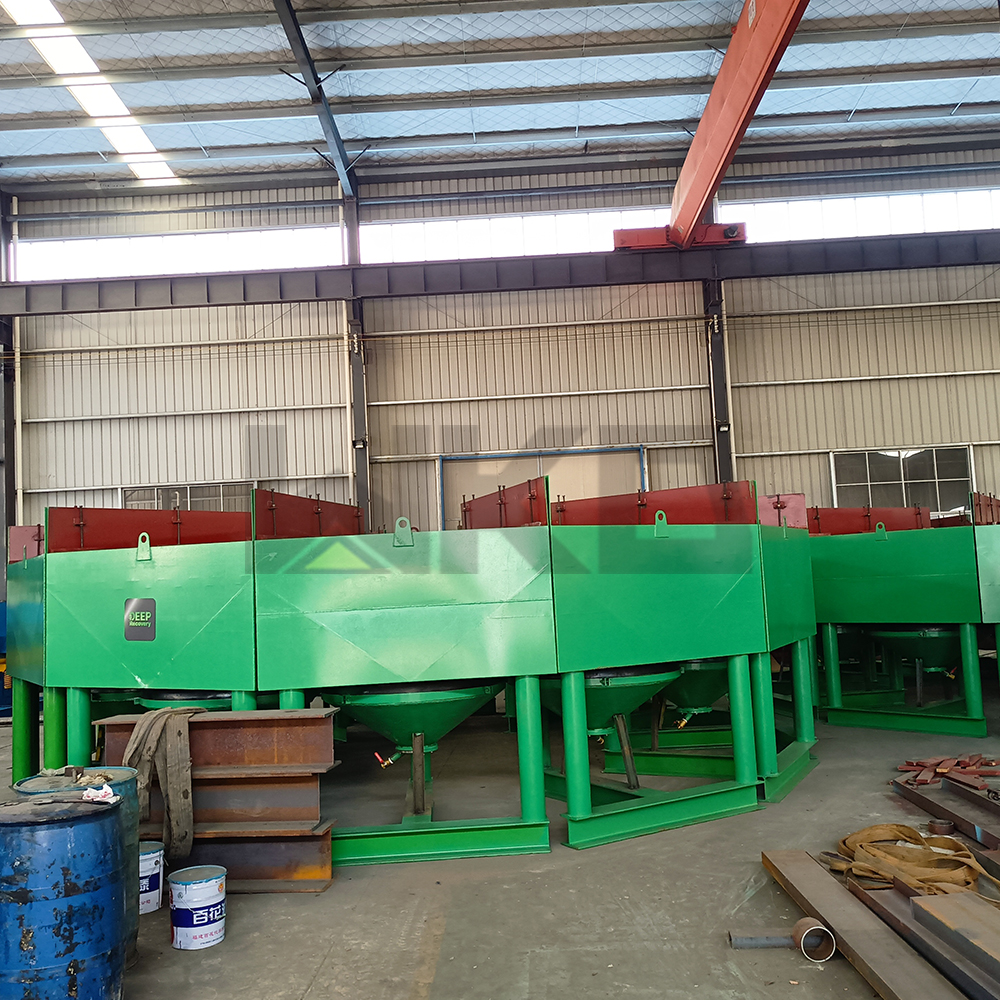

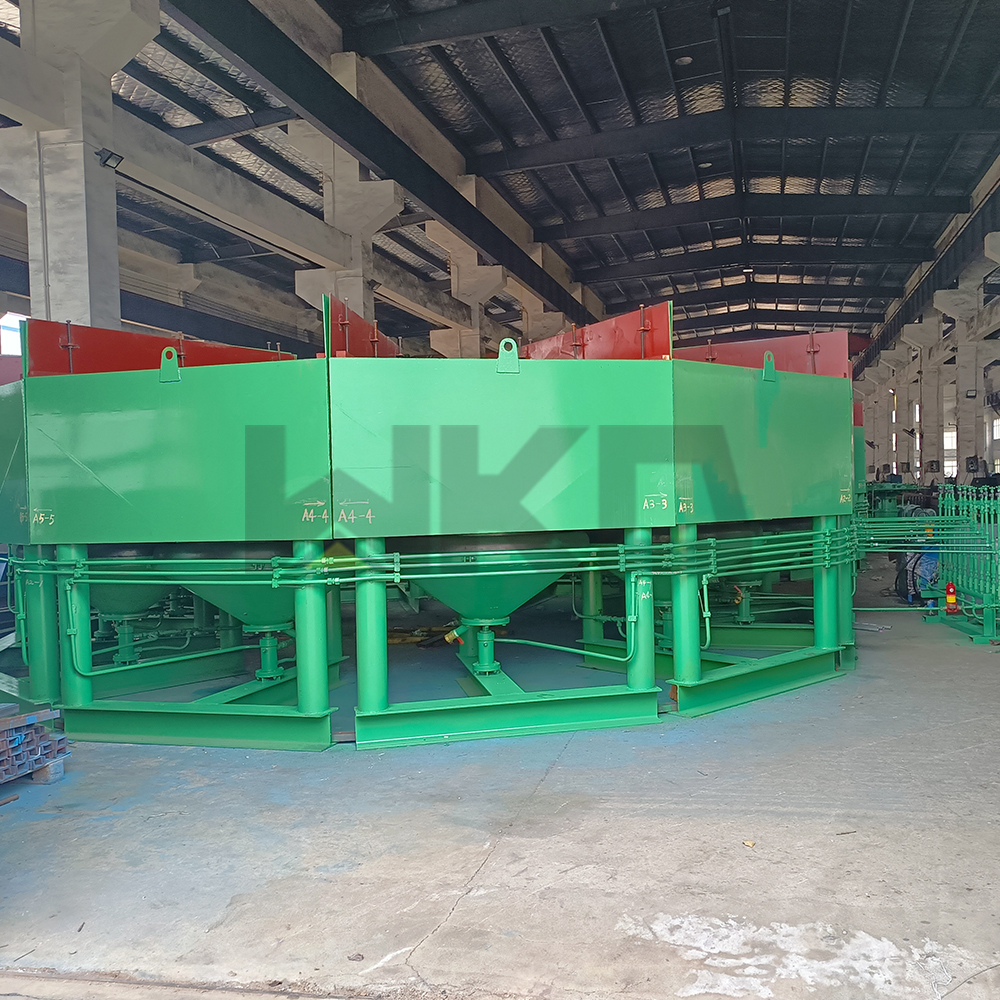

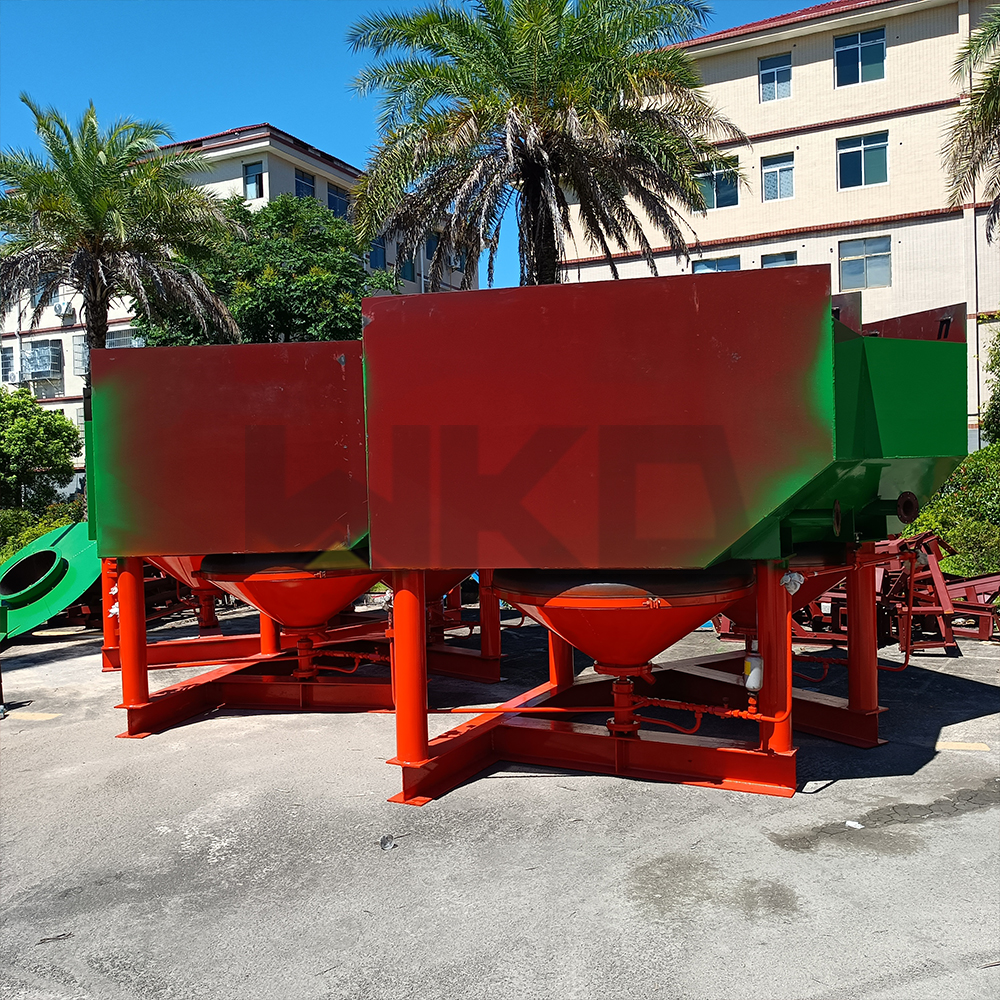

Mining Machinery Gold Washing Alluvial Hydraulic Jig

Hydraulic Jig Description

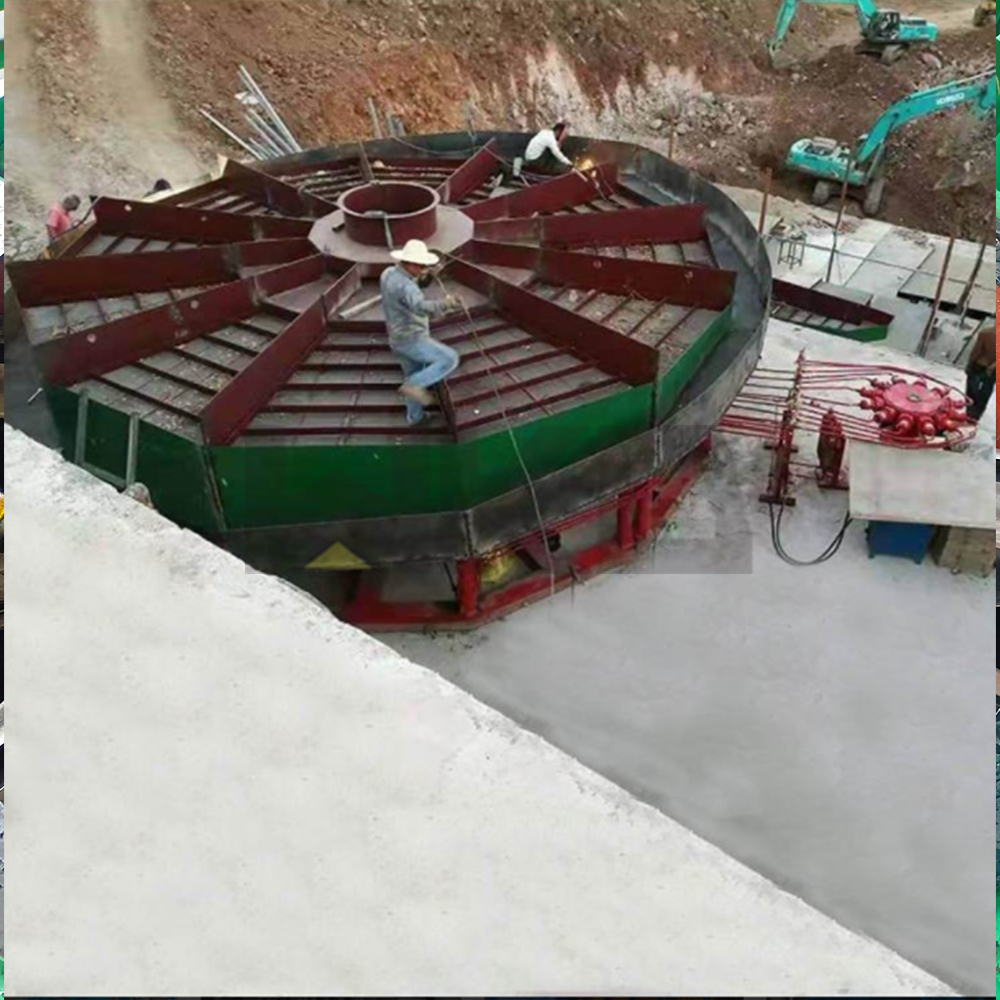

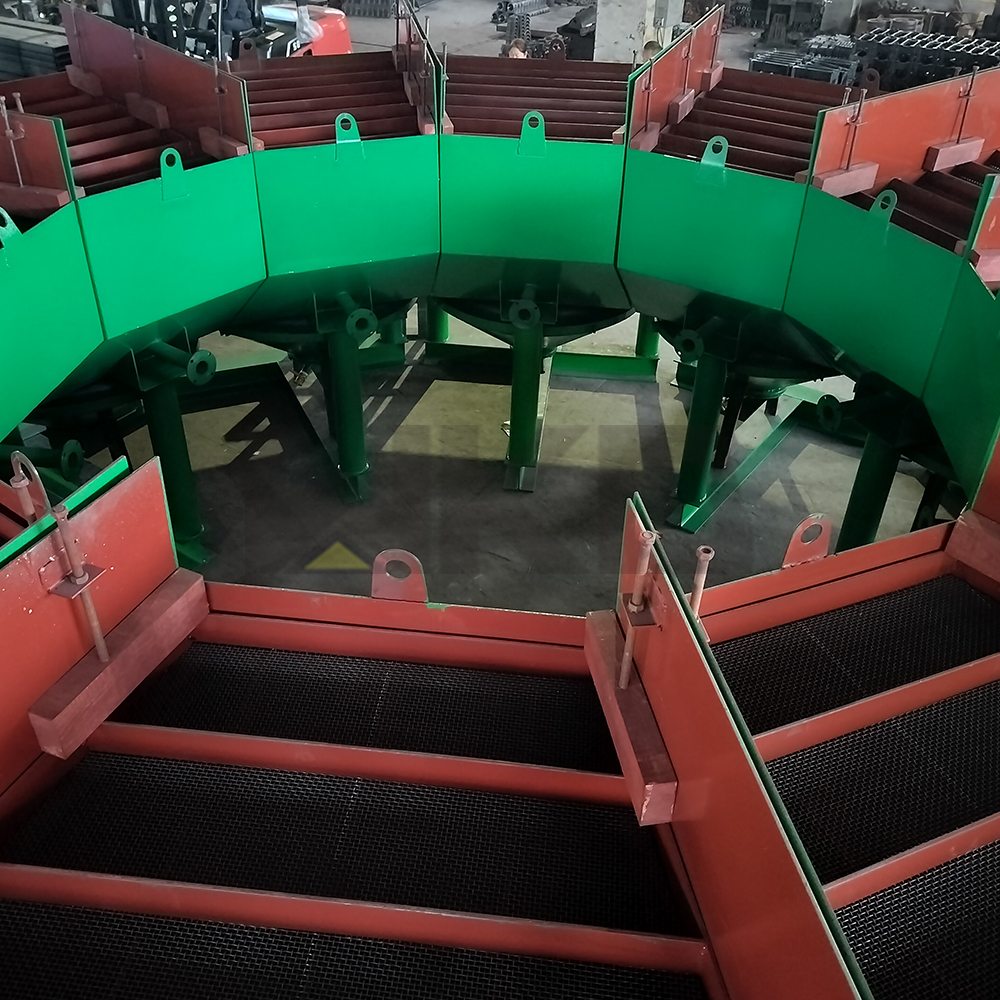

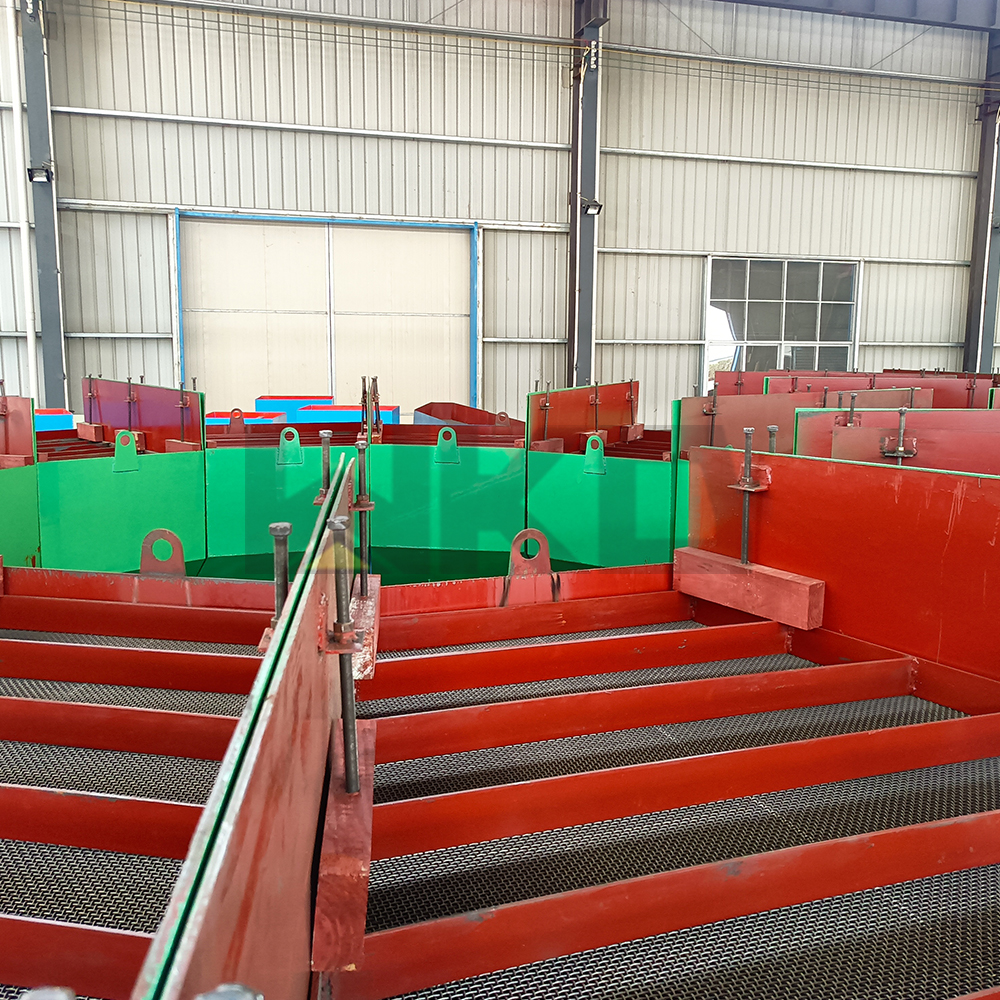

Hydraulic radial jig is developed from circular jig. It’s composed of two parts: drive and tank. The drive is mechanical hydraulic type, the power is provided by motor through the transmission mechanism let the output shaft of the gear reducer drives the cam rotation, the cam pushes the piston of each master cylinder make periodic reciprocating motion, which converts electrical energy into mechanical energy and then into hydraulic energy. Through hydraulic pipes and all kinds of valves let the moving cylinder drives the cone of jig up and down fluctuation.

DYTA7750 Hydraulic radial jig adopts electromagnetic speed regulating asynchronous motor to realize the frequency adjustment, it’s a step-less adjustment and the adjustable range of jig frequency is 0-90 times per minute.

DYTA7750 hydraulic radial jig has many advantages compared with the various jig machines: Big jigging area, big capacity; because the jig tank is fan-shaped, it is advantageous to recover fine particle materials; Compact structure, central feeding and small distribution space, suitable for use on dredger; Because of the hydraulic drive, the transmission mechanism is simplified and saving power. The total power of the model DYTA7750-9 is only 11.6 Kw, saving about 55% power than the conventional jig machine in the same concentration area. The pulsation curve is approximation saw-tooth curve, not only conducive to recover fine heavy minerals, also saving a large number of make-up water, the make-up water is about a quarter of the ordinary jig.

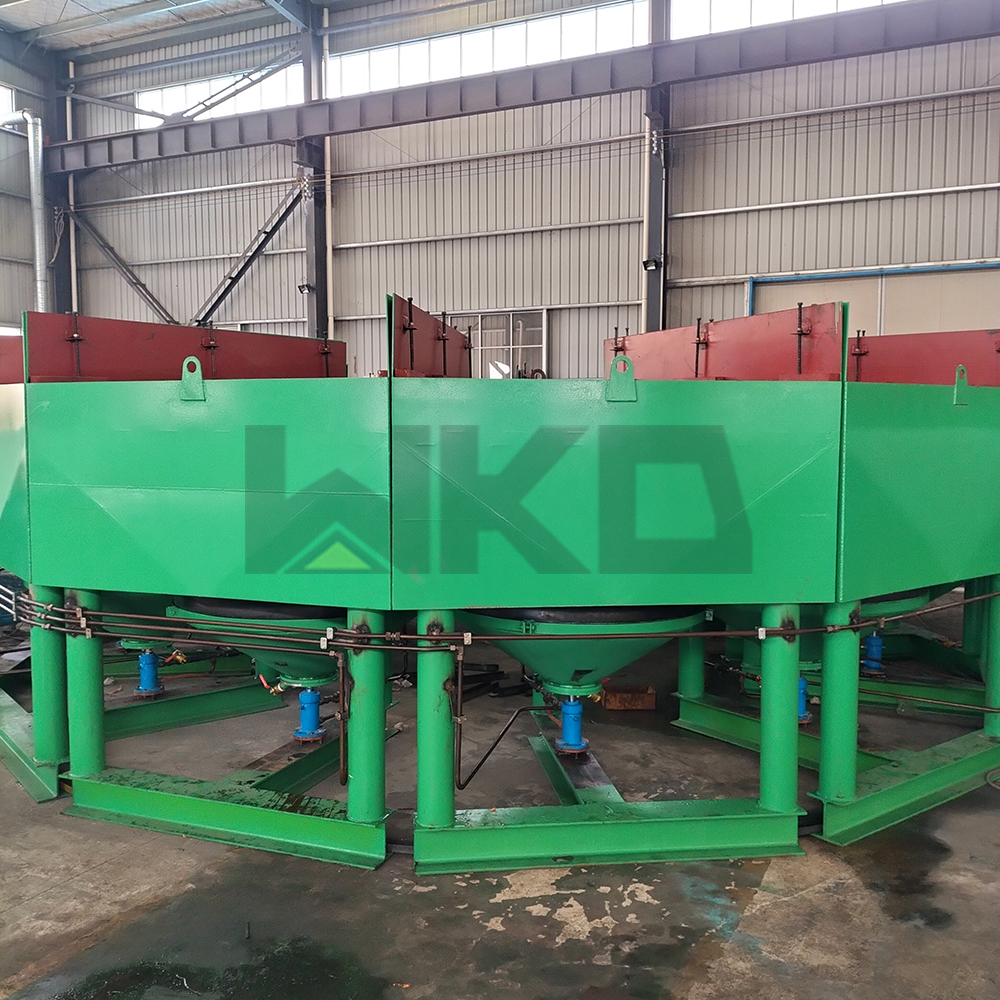

hydraulic (2).jpg
